LAUNCH X-431 PRO Series User Manual
4
Fig. 1-1 Display tablet
1
Microphone
2
USB/Charging
Port
 To connect to AC outlet for charging.
 To connect to PC for data exchange.
3
POWER Key
In Off mode, press it for 3 seconds to turn the
handset on.
In On mode:
 Press it once to activate the LCD if the LCD is
off.
 Press it once to turn off the LCD if the LCD
lights up.
 Press and hold it for 3 seconds to turn it off.
 Press and hold it for 8 seconds to perform
forced shutdown.
4
LCD Screen
5
Slot for VCI device
6
VCI device

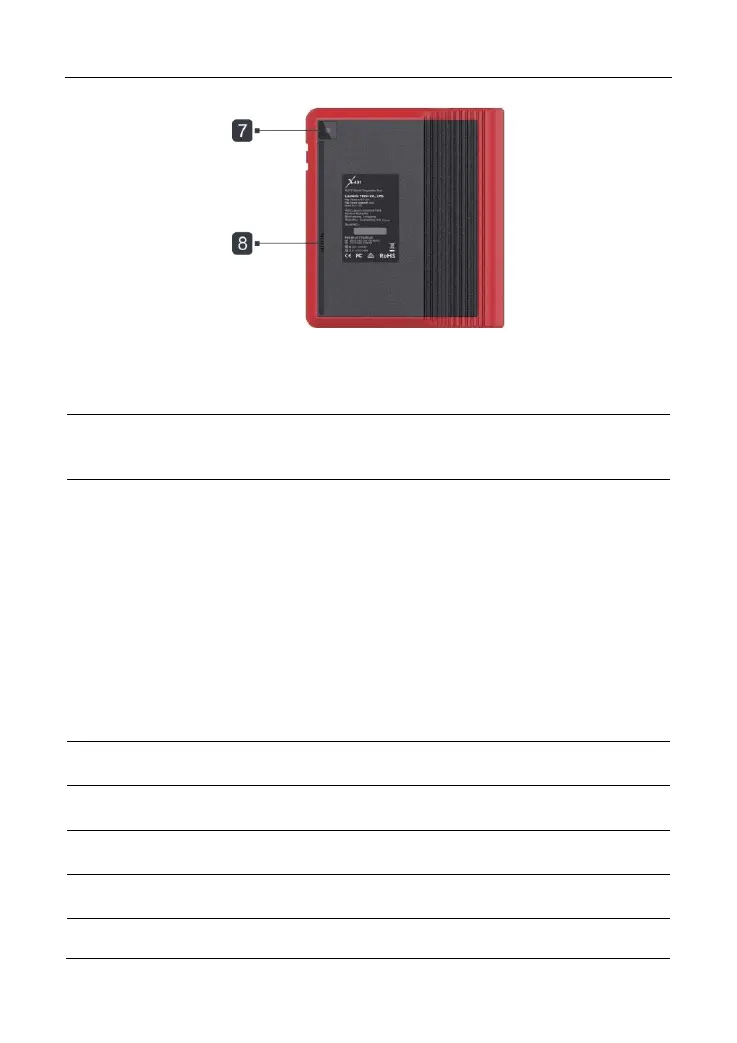

7
Rear Camera
8
Speakers
