charging port of the tablet, and the other end to AC outlet.
B. Internal battery pack
For non-OBDII vehicle, proceed as follows:
1. Locate vehicle’s DLC socket.
2. Select the corresponding non-16pin connector.
3. Plug the non-16pin end of the connector into the DLC socket, then connect
the other end to the OBD I adaptor, and then tighten the captive screws.
4. Connect the other end of the adaptor to the included VCI device.

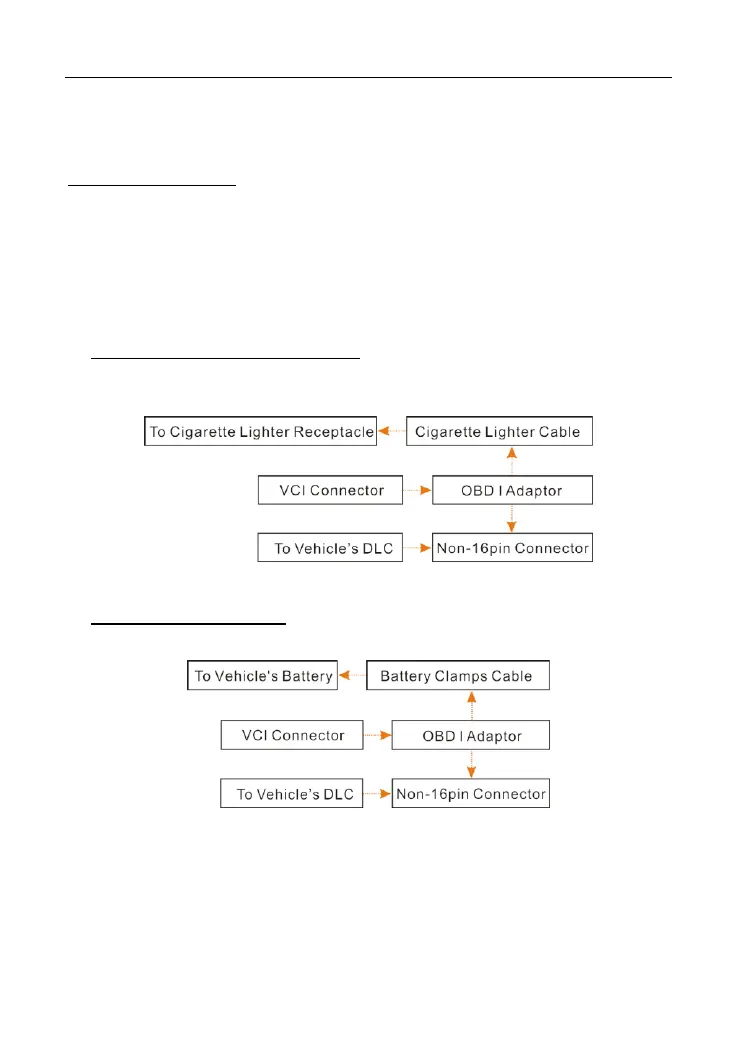

5. To supply power to OBD I adaptor from:
A. Cigarette Lighter cable (optional): Connect one end of the cigarette lighter
cable to vehicle’s cigarette lighter receptacle, and the other end to the power
jack of OBD I adaptor.
Fig. 4-11
B. Battery Clamps Cable: Connect one end of the battery clamps cable to
vehicle’s battery, and the other end to the power jack of OBD I adaptor.
Fig. 4-12
4.4 Communication Setup
Enter Bluetooth setting screen (“Settings” -> “Bluetooth”), slide the Bluetooth
switch to ON and the tablet will start searching for all available Bluetooth devices,
tap the desired VCI to pair.

Launch X-431 PRO V3.0 Specifications

General

Display Resolution	1280 x 800
Wi-Fi	802.11 b/g/n
Bluetooth	Bluetooth 4.0
Supported Protocols	CAN
Operating System	Android
