LAUNCH
3

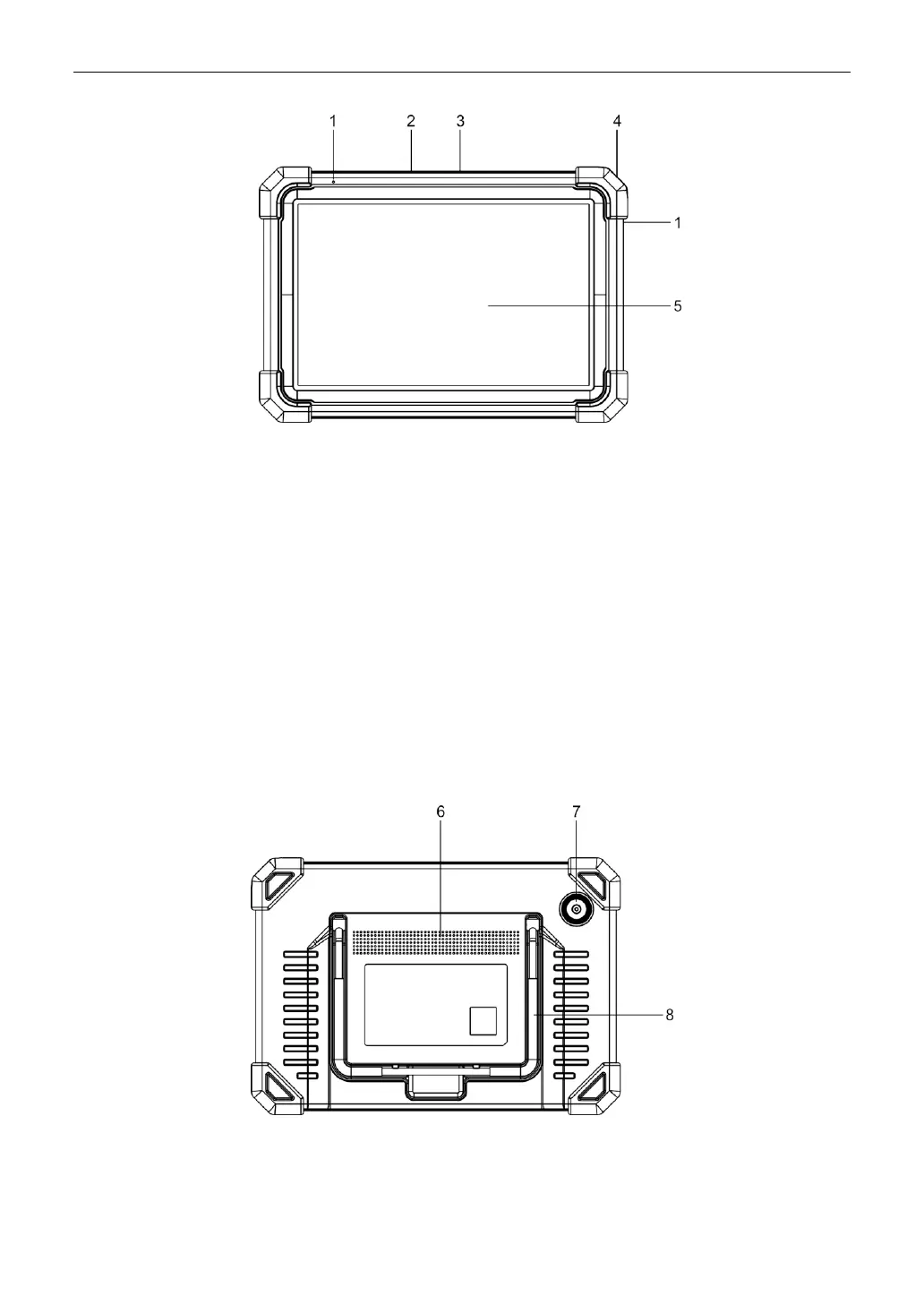

1. Microphone
2. Type-A USB Port
• Connect to the SmartLink C device to perform vehicle diagnosis via the USB cable.
• Connect to compatible add-on modules (such as Videoscope) or USB storage devices.
3. Type-C USB Port
• Connect to AC outlet for charging.
• Connect to PC for data exchange.
4. POWER Key
Turn the tablet on/off.
Note: Press and hold it for 8 seconds to perform forced shutdown.
5. LCD Screen
Indicate the test result.
6. Speakers
7. Rear Camera
8. Adjustable stand
