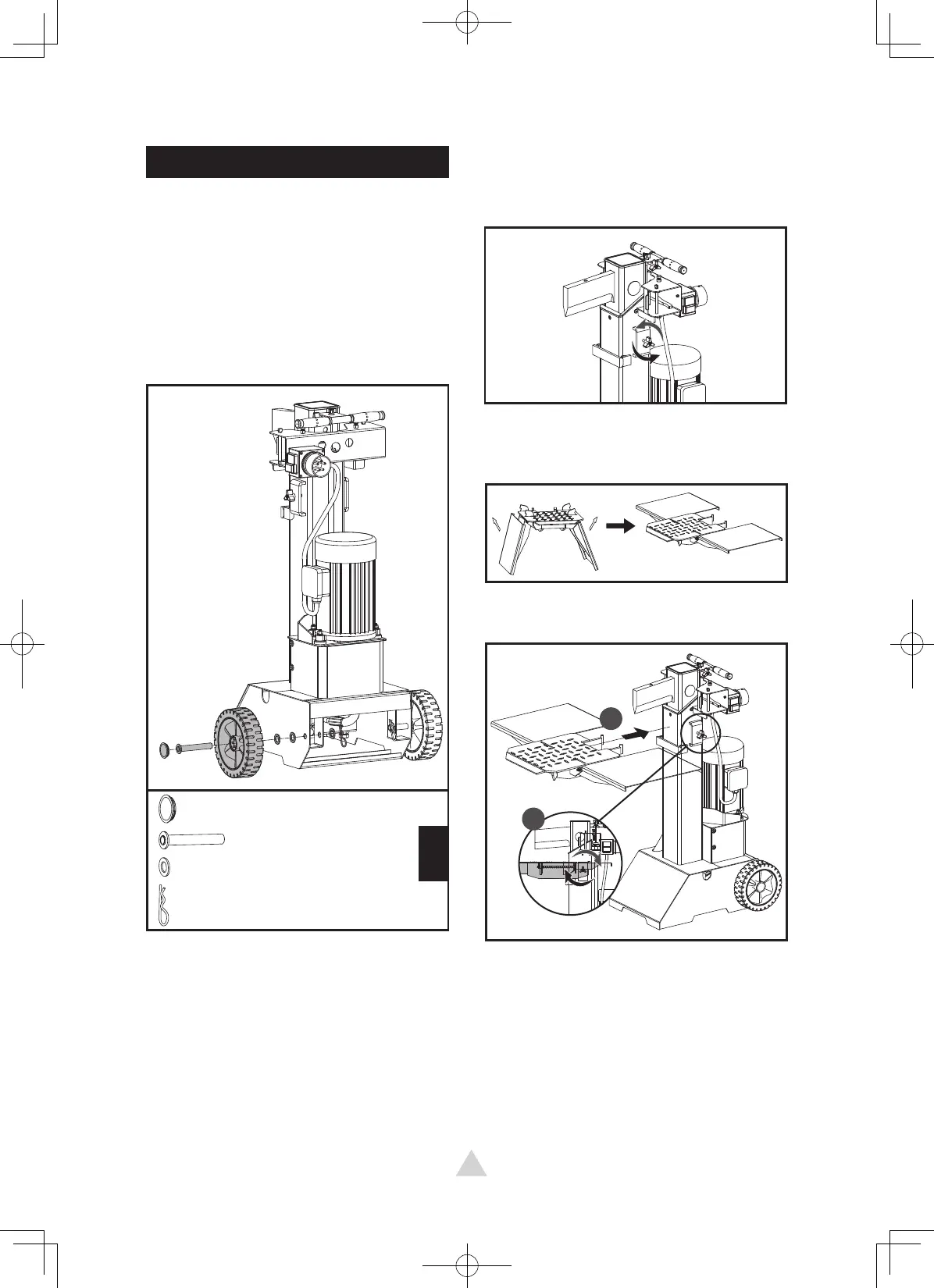

1. Before assembly, loosen the star
knob by turning it counterclockwise.
1. Pass the axle through the wheel from
outside and put on two washers as
shown in the following figure. Slide
the axle into the two holes on the
base of log splitter and secure it
with another washer and R-pin from
inside. Put on the wheel cap.
2. Repeat the same steps to mount the
wheel on the other side.
2. Unfold the log support table, make
sure the three parts of it at the same
surface level.
3. Insert the hooks of the log support
table into the mount brackets.
4. Tighten the star knob.
ASSEMBLY
Wheels
Support Table
×
