16
ASSEMBLY

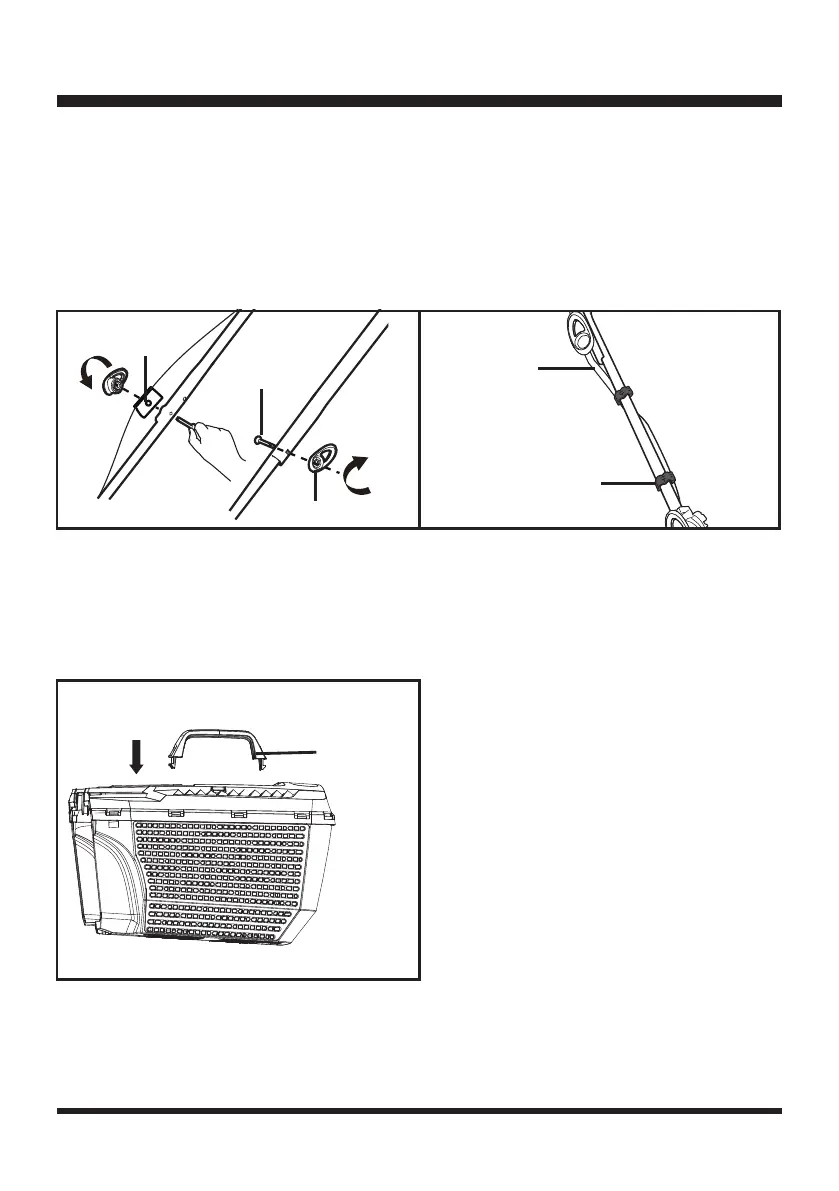

ASSEMBLING THE UPPER HANDLE
1. Fix the upper handle using the bolts, cable guide (pre-installed on cable) and the locking knobs, and turn
the locking knob clockwise till it tightens (Fig. 2). There are two possible positions.
NOTE:
Make sure the cable guide is installed correctly on one side of the upper handle as shown to avoid
cable damage when the upper handle is folded up and down.
2. Secure the control cable with the cable clips (Fig. 3).
Locking Knob
Control Cable
Cable
Guide
Cable Clip
ASSEMBLING THE GRASS COLLECTION BAG
1. Check the grass collection bag before assembling to make sure there is no damage.
2. Insert the grass collection bag handle in the slots on the upper cover of grass collection bag Ensure the
handle is securely ‘clicks’ into place (Fig. 4).
Fig. 2 Fig. 3
Fig. 4
Grass
Collection
Bag Handle
Bolt
