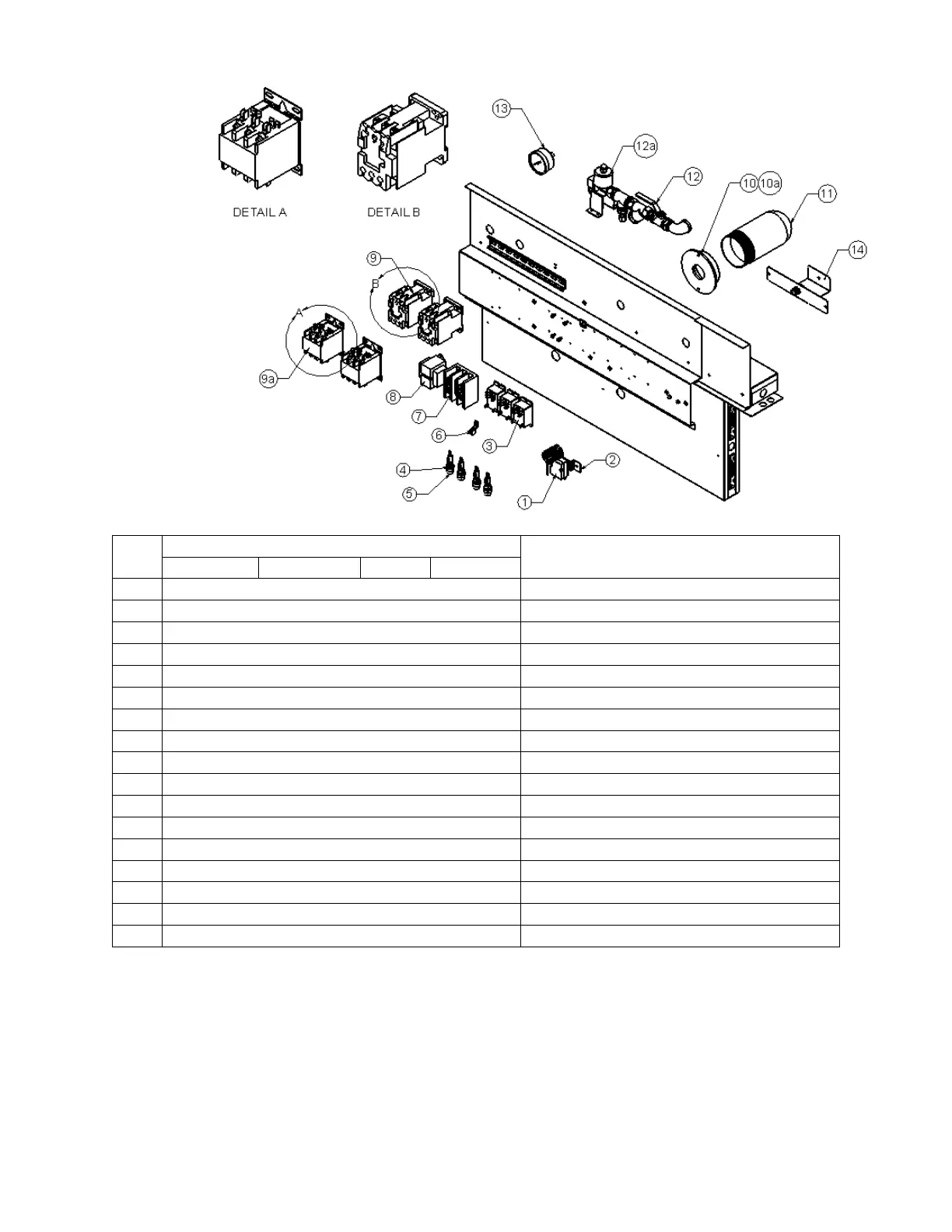

Electrical
*NOTE: Either set of contactors may be present. Replace Item 9 or 9a to its match in likeness.
Item
Parts
Description
LRP1
LRP2N
LRP2S
LRP3
1
30701-27
High Limit Thermostat, Proofer
2
155-308
Bracket, T-stat Mount
3
30701-05
Relay, 2-pole, 30 Amp – 24 VAC Coil
4
30901-02
Fuse Holder for 15A Fuse
5
30900-01
Fuse 15A (ABC-15)
6
31200-02
GROUNDING LUG
7
30500-07
Terminal Block, 3-Pole, 125 Amp
8
31400-26
XFMR 120/208/240 Primary 12-24 40VA
*9
30700-76
Contactor, 3-Pole, 50A, CU-32R
*9a
30700-17
Contactor, 3-Pole, 50A, M 98
10
31602-06
Lamp Socket Rack Proofer
10a
31603-04-1
250V 50W CFL Light Bulb
11
31602-06-1
Lamp Globe
12
70101-200
Water Connection
12a
70403-01
Solenoid Valve, 24 VAC. 1/4 NPT
13
70404-03
Gauge 0-100 PSI 4X515
14
155-725-3
Hi Limit Bulb Assembly
