LBC LRP - Doors

Page | 19 Proofer Operators Manual 1-2022 (English)
Copyright 2022 LBC Bakery Equipment Inc. Tulalip WA

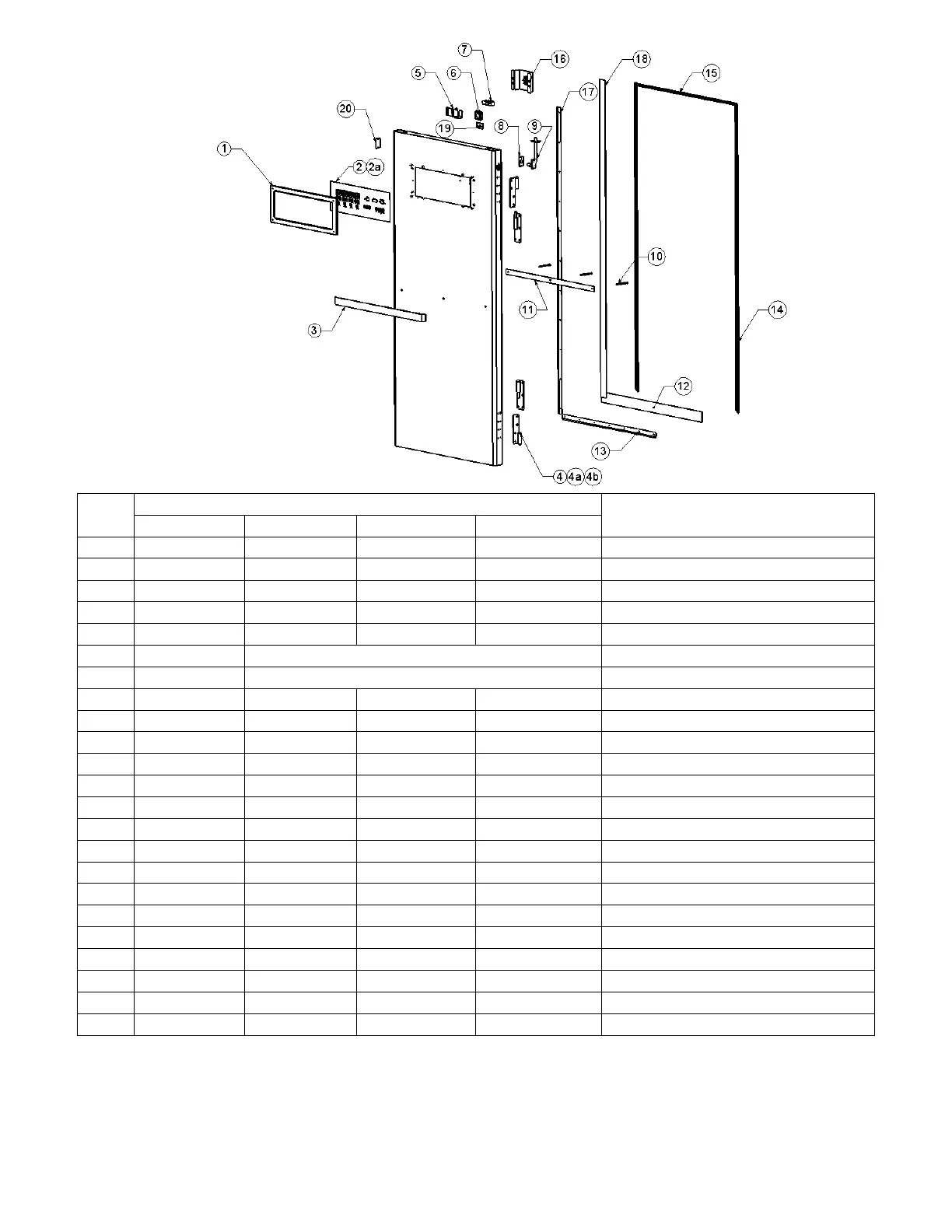

Doors
Items
Parts
Description
LRP1
LRP2N
LRP2S
LRP3
1
155-330-1
155-330-1
155-330-1
155-330-1
Control Bracket
2
40102-65-1
40102-65-1
40102-65-1
40102-65-1
Proofer Control w/ Timer
2a
40102-63
40102-63
40102-63
40102-63
Retarder/Proofer Control
3
155-702
155-702-17
155-702
155-702-1
Door Handle
4
155-806
N/A
N/A
N/A
Complete Hinge Set LRP1 (1 Req.)
4a
N/A
155-807
Hinge Assembly, Left Door (2 Req.)
4b
N/A
155-808
Hinge Assembly, Right Door (2 Req.)
5
70602-24
70602-24
70602-24
70602-24
Door Closer, Strike
6
30200-42
30200-42
30200-42
30200-42
Fan, Micro-5VDC
7
40106-05
40106-05
40106-05
40106-05
Temp/Humidity Sensor
8
155-338-2
155-338-2
155-338-2
155-338-2
Plate Control Wireway
9
155-672-1
155-672-1
155-672-1
155-672-1
Wire Assembly
10
20109-51
20109-51
20109-51
20109-51
Screw, Door Handle
11
71100-14
71100-19
71100-14
71100-14
Bumper- Door
12
155-114
155-114-17
155-114
155-114-1
Bottom Seal
13
155-128
155-128-17
155-128-24
155-128-1
Bottom Retainer
14
N/A
72602-21-1-L
72602-21-1-L
72602-213-1-L
Door Seal, Left
15
72602-21-2
72602-21-1-R
72602-21-1-R
72602-213-1-R
Door Seal, Right
16
155-410
155-410
155-410
155-410
Bracket, Sensor Guard
17
N/A
155-127
155-127
155-127
Center Retainer
18
N/A
155-131
155-131
155-131
Center Seal
19
155-338-3
155-338-3
155-338-3
155-338-3
Seal Wireway
20
155-338B
155-338B
155-338B
155-338B
Plate, Hole Cover
