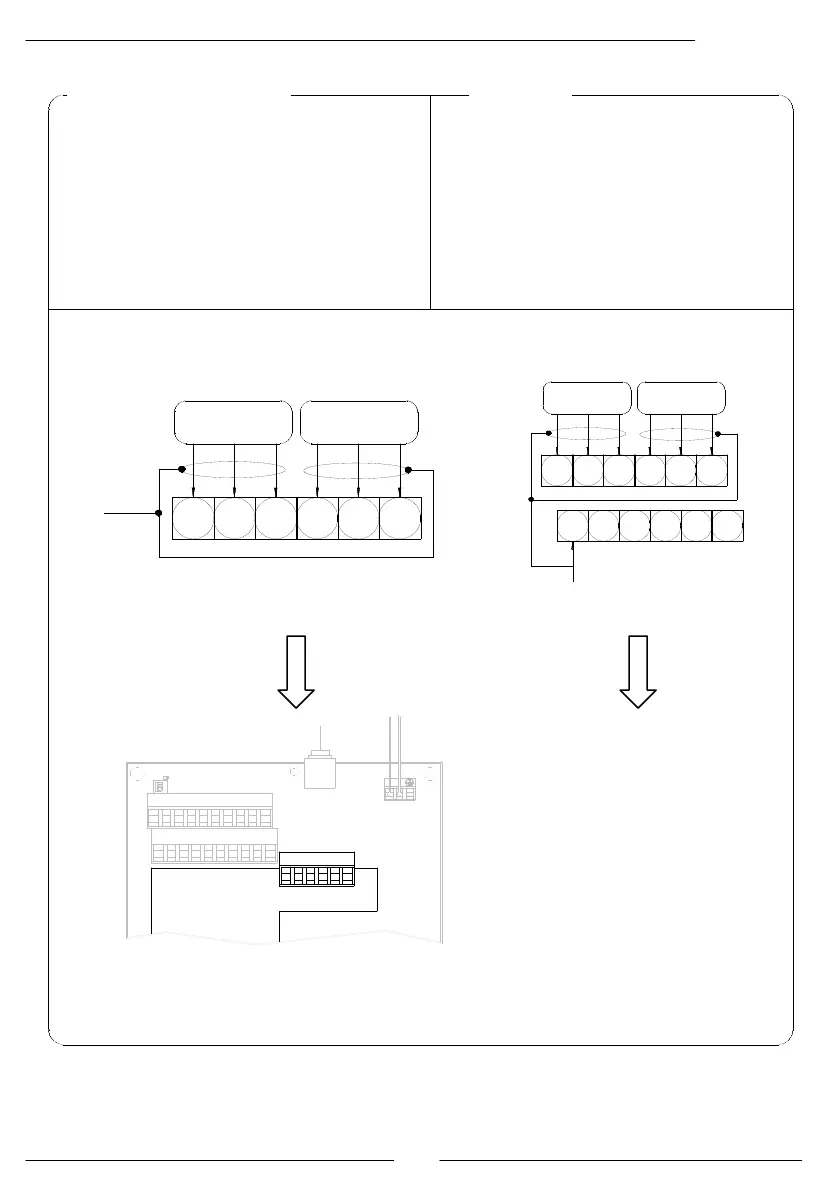

OPTIONAL RELÈ MODULES
 ME205: 2 relay outputs with 1 NO
contact + 1 NC contact each, 2A 60V~,
60W/125VA
 ME207: 2 relay outputs with 1 NO
contact + 1 NC contact each, 2A 250V~,
60W/125VA
 SH: Cable shield, electrically connected to
ground and to the casing
 C: Relay – common
 NC: Normally closed contact
 NO: Normally open contact
LEGEND
26
25
24
23 22
21
OUT 4
C
NC
NO
OUT 3
C
NC
NO
32
31
30
29
28
27
SH
21
22 23 24 25 26
OUT 3
NO
NC
C
OUT 4
NO NC
C
14
(M1)
M2
M1
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16 17 18 19 20
LOCK
26
2524232221
M2 for
ME205 and ME207
M2 position on separate/compact version
Teminal block on
compact/separate version
Teminal block on panel
version
NOTE: On panel version
the terminal block M2 is
the same than other
modules.
