HML 210
27
2.1* Full scale value set for range N.1
2.2* Full scale value set for range N.2
2.3* Unit of measure and number of decimal place
2.4* Pulse value on channel 1
2.6* Duration of the pulse generated on channel 1
2.7* Duration of the pulse generated on channel 2
2.8 Full scale freq. for channel 1 (0.1Hz-1000.0Hz) (0.1Hz-10000Hz with opt. module)
2.9 Full scale freq. for channel 2 (0.1Hz-1000.0Hz) (0.1Hz-10000Hz with opt. module)
2.10 Enable/disable the selection of mass units on full scale set
2.11 Specific gravity set in kg/dm³
2.5* Pulse value on channel 2
1.1 Insert sensor ND (0-3000mm)
1.2 Sensor calibration data, visualized on sensor's label
1.3 Type of sensor: Enter the first two characters of the sensor serial number
1.4 Position for insertion sensors: 0=1/8DN, 1=1/2DN, 2=7/8DN, 3=check sensor manual
1.5 Factory parameters automatically calculated (ONLY for insertion sensors)
1.6 Length of the cable connecting the sensor to the converter
1.7 Enables the empty pipe detection feature
1.9* Value of empty pipe sensibility detection
1.10* Enables the automatic procedure of zero calibration
1.8* Electrodes cleaning
4.1 Maximum value alarm set for direct flow rate
4.2 Maximum value alarm set for reverse flow rate
4.3 Minimum value alarm set for direct flow rate
4.4 Minimum value alarm set for reverse flow rate
4.6* Current output value in case of failure
4.7* Frequency output value in case of failure
4.8* Batch safety timer
4.5 Hysteresis threshold set for the minimum and maximum flow rate alarms

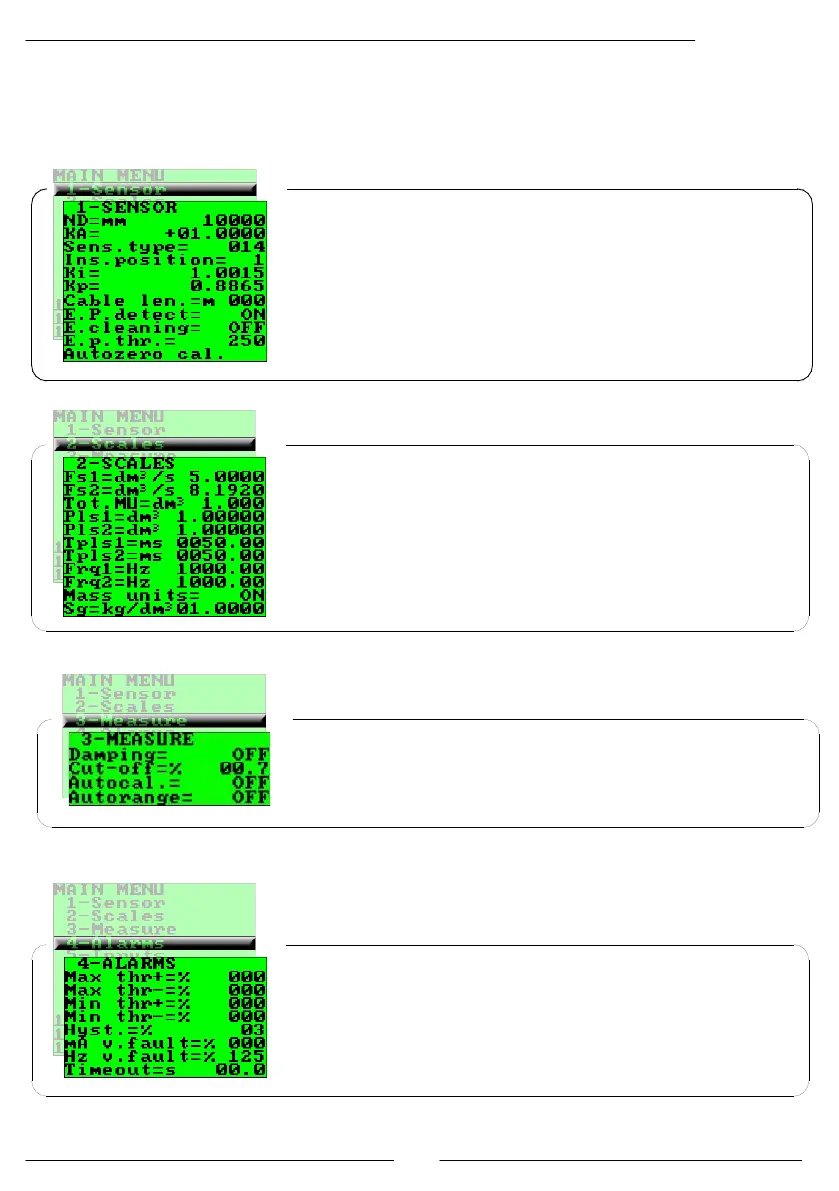

PROGRAMMING FUNCTIONS
(functions with access code < 3, those with symbol “*” see the next section)
Attention: The menu functions in grey colour are visualized on display only with other active functions
or with optional modules
3.4 Enable every hour an internal cycle of calibration. Measurement stopped for 8-15 sec.
3.5* Automatic change of measurement range
3.3 Low flow cut off threshold: 0-25% of full scale value
3.1* Measure filter
To Next Page
