LC HML 210 User Manual

HML 210
41
Fixing screw
of board

Unscrew the screw as indicated in pic. 1
 Lift the board, remove the flat cable
from the display (pic. 2) and extract
completely the board from the box
Pic.2
4 mm hex spanner
Display

Partially unscrew the screw fixing the
display to allow the angular shift and
extraction of the display
N.B.: Do not unscrew entirely the screw
Take off the
flat cable
1
2
3
4
Display
 Rotate the display to the desired location,
verify the correct set of the seal, the cleaning
of the contact surfaces it set the display
housing.
 Place
the fixing angles in the suitable
positions (pic. 5) and screw down firmly until
they make contact with the display housing.
 Screw up tightly the 4 screws (1, 2, 3, 4)
indicated in pic. 4
Pic.6
Pic.4
Pic.7
Note: the display is rotable ONLY in the aluminum IP67 version.
APPENDIX

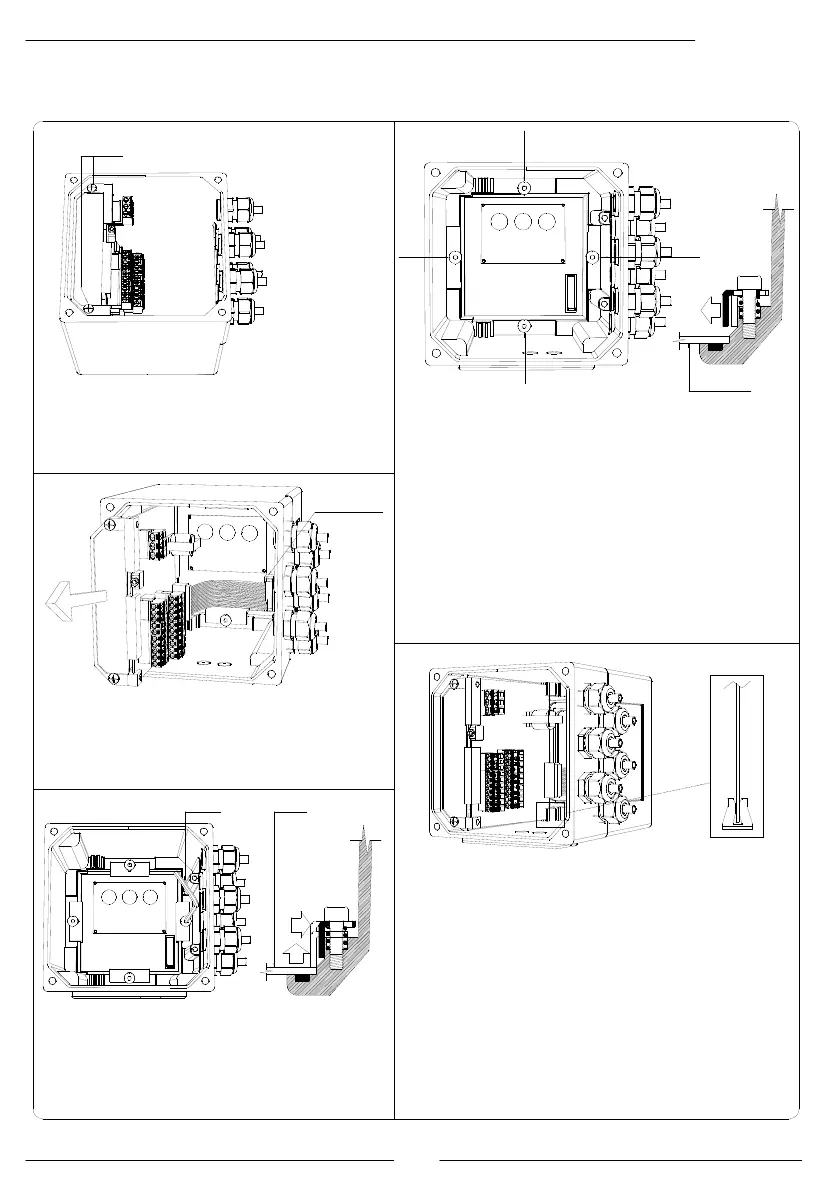

DISPLAY ROTATION PROCEDURE
Pic.3

Restore the flat cable connection to the display
 Verify the board is set correctly in the fixing
clip (pic. 7)
 Fix the board to the box to complete the
assembly process.
Pic.5
Pic.1
