Start batch from remote input
Start batch from consent (remote)
Start batch from remote input with auto-
batch enabled
 POS. 5.10 or POS. 5.11 ENABLED on
batch
 POS. 6.1 to 6.4 on end batch
Start batch from remote input with
automatic selection of formula 00/03
N.B.: THE ACTIVATION OF BATCH FUNCTIONS ON INPUT 2
PREVENTS THE ACTIVATION OF BATCH FUNCTIONS ON INPUT 1
Necessary conditions for enabling the function
Necessary conditions for enabling the function

POS. 5.10 ENABLED or POS. 5.11 on
batch
 POS. 6.1 to 6.4 on batch
 POS. 12.7 ENABLED (Consent mode)
 POS. 5.10 or POS. 5.11 ENABLED on
BATCH
 POS. 6.1 to 6.4 on END BATCH
 POS. 12.5 ENABLED (auto-batch)
 POS. 12.7 DISABLED (consent mode)
Necessary conditions for enable the function
T= 100ms ±50ms for select the formula 00
T= 200ms ±50ms for select the formula 01
T= 300ms ±50ms for select the formula 02
T= 400ms ±50ms for select the formula 03
In case of stop batch from remote input the
time of input

POS. 5.10 ENABLED on BATCH or POS.
5.11
 POS. 6.1 to 6.4 on END BATCH
 POS. 12.6 ENABLED (automatic selection
of formula)
 POS. 12.7 DISABLED (consent mode)
 POS. 5.11 DISABLED selection function for
the formula 00/01 assigned to input 2 (optional)
Necessary conditions for enabling the function
Start batch from remote input 1 reset p+
enabled on remote input 1
T BETWEEN 1 E 4 = RESET TOTALIZER
T<1 = START E RESET TOTALIZER
Necessary conditions for enabling the function

POS. 5.10 ENABLED (Batch on input 1)
 POS. 6.1 - 6.4 on BATCH
 POS. 5.2 ENABLED (reset P+)
0-1.5V
3-40V
INPUT
OUTPUT
Closing
valve
Opening
valve
BATCH
INPUT
OUTPUT
0-1.5V
3-40V
Opening
valve
Opening
valve
Closing
valve
BATCH
3-40V
0-1.5V
5 Sec.
<5 sec.
INPUT
OUTPUT
Closing valve
quantity to batch
memorized
Opening
valve
Closing
valve
AUTO-BATCH
BATCH
3-40V
0-1.5V
Formula selection
Start
INPUT
OUTPUT
Opening
valve
Closing
valve
BATCH
INPUT
OUTPUT
3-40V
0-1.5V
Start
Opening
valve
Closing
valve
BATCH
Start

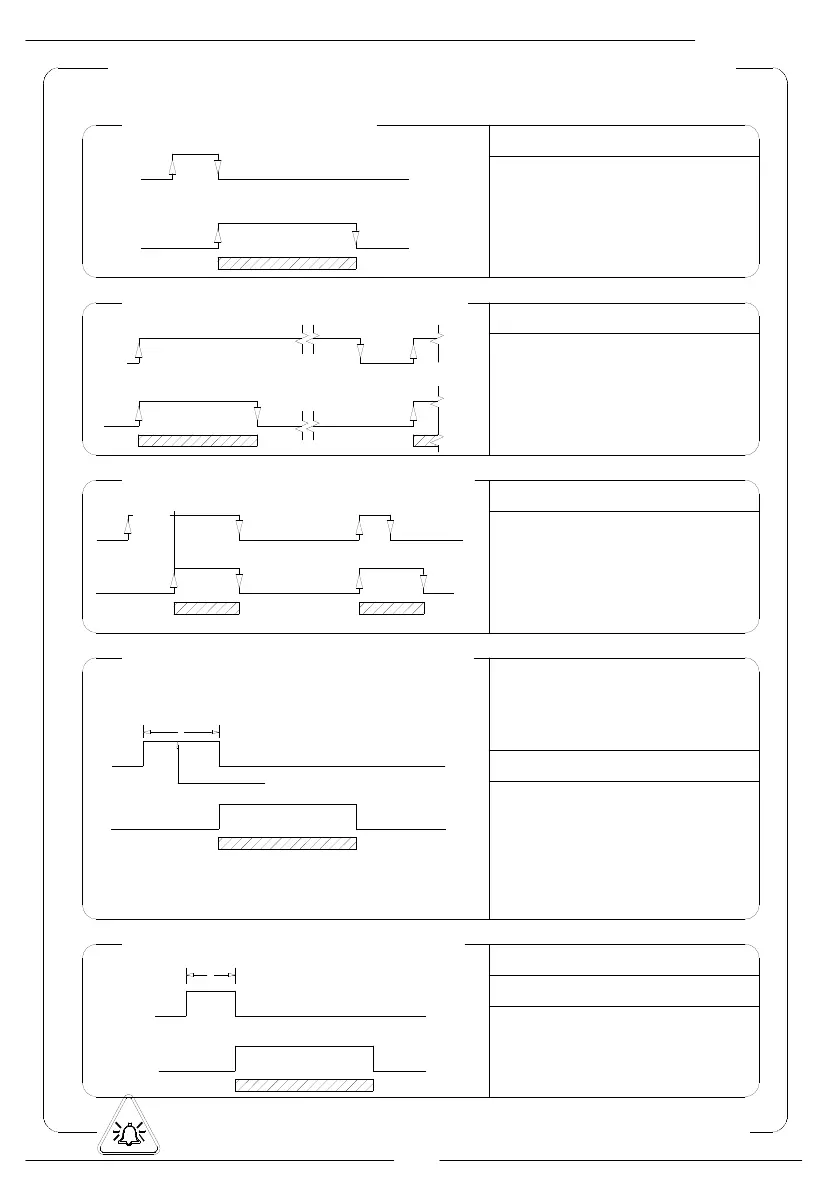

OPERATION STAGE ON INPUT 1OR 2 (BATCH FUNCTION)
