LCF Technics Product User Guide

Cable Connections

There are 2 models of TSDZ2:

1. 8 pin model – for use with throttle and brake sensors.

2. 6 pin model – for use with torque sensing motor – no throttle or brake sensors needed.

The following section covers the 6 pin model.

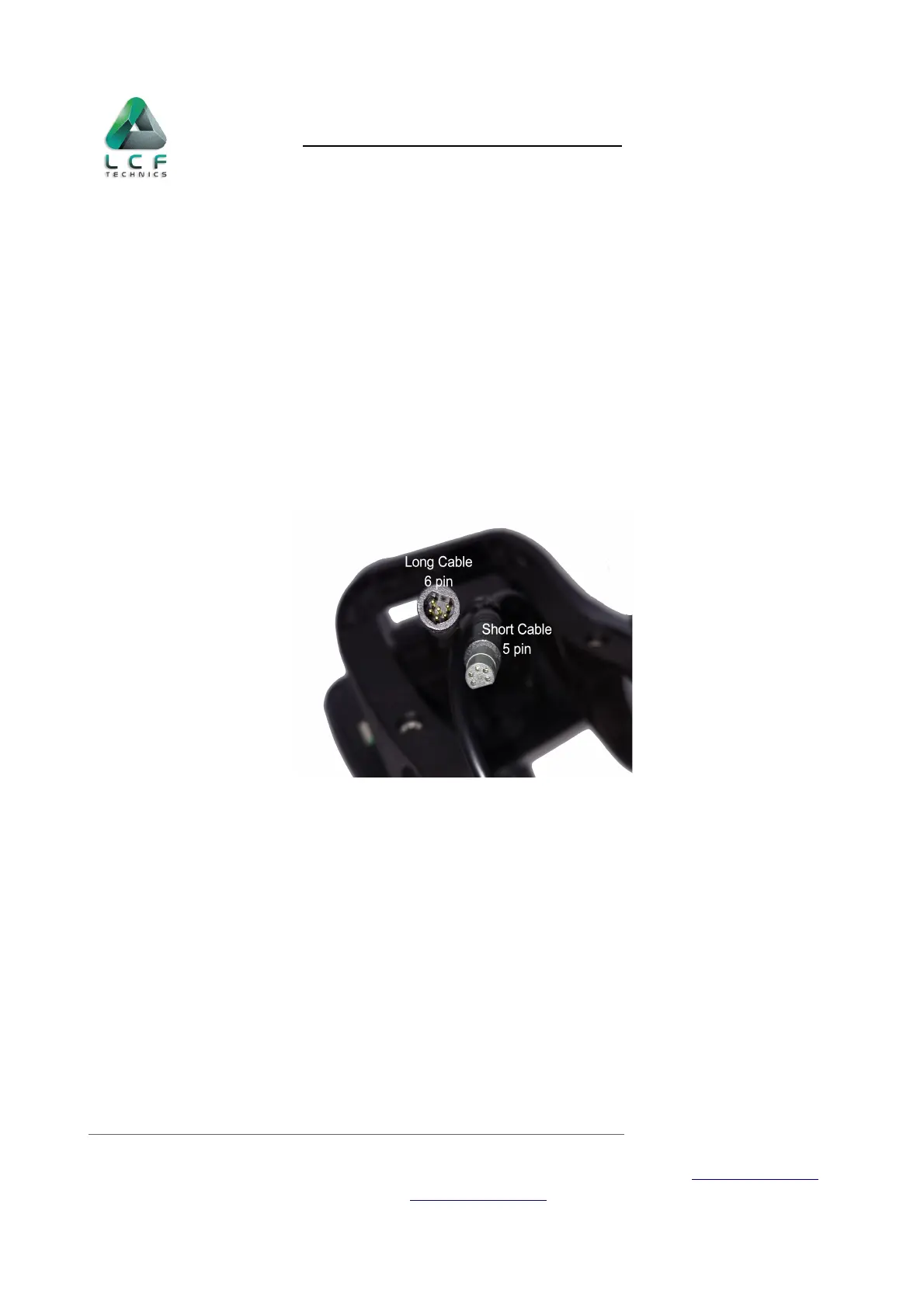

There are 2 weather resistant cable connections from the VLCD5 display:

The long 6 pin cable connects directly to the motor. The motor controller is contained inside the

motor housing and a short cable with a matching connector emerges from the housing.

The connector profile has a flat side to ensure correct orientation, there are also arrows on each

connector which should be aligned.

The connectors are a snug fit to resist water ingress. It is often necessary to make a slight rotating

motion with each hand as you press the connectors together to ensure they are fully engaged.

The short 5 pin cable connects to the remote button panel connector. The process of making the

connection is similar in each case.

For a recumbent bike or trike, an 5 pin extension cable will be required.
