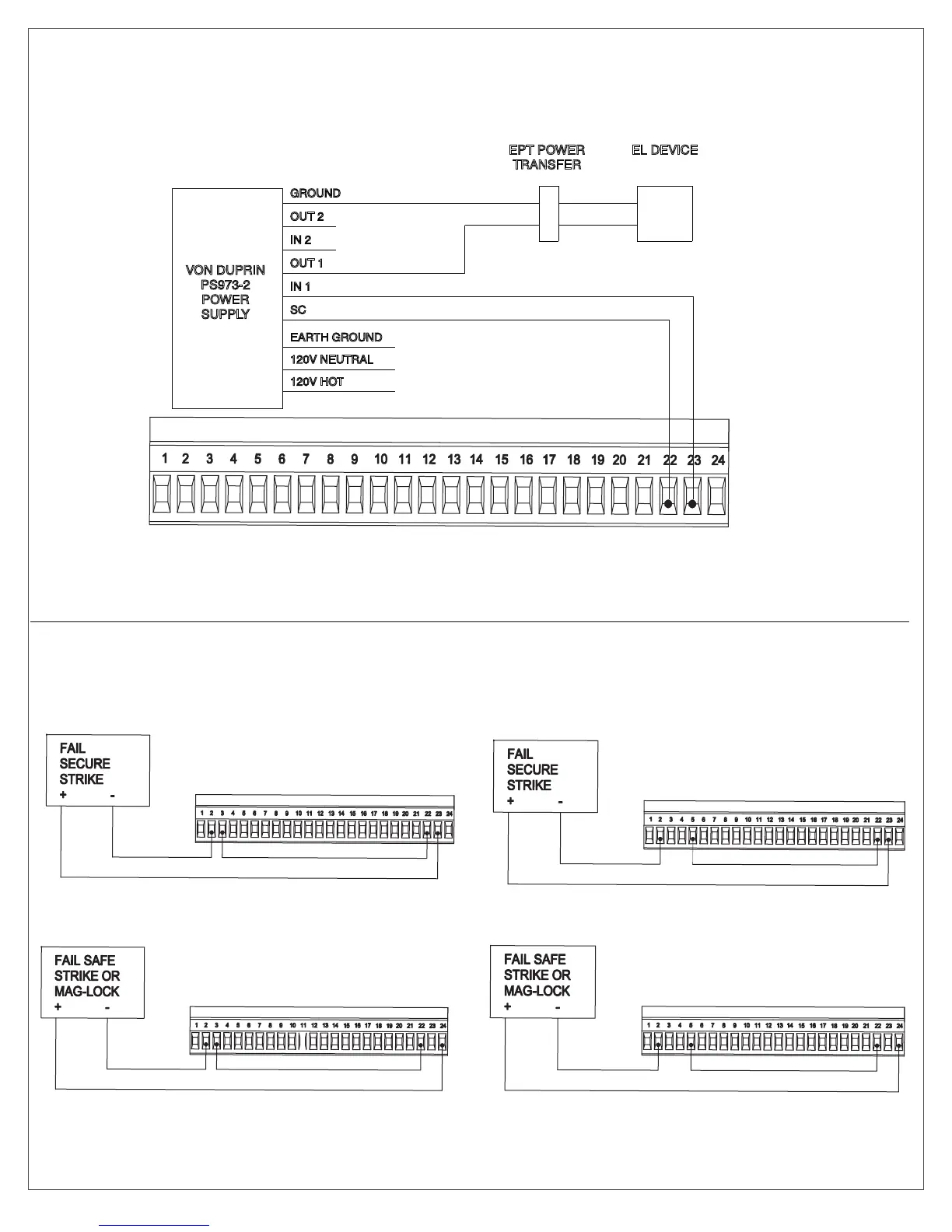

WIRING INFORMATION FOR ELECTRONIC LATCHING DEVICES
VON DUPRIN
PS973-2
POWER
SUPPLY
EPT POWER
TRANSFER
EL DEVICE
GROUND
OUT 2
IN 2
OUT 1
IN 1
SC
EARTH GROUND
120V NEUTRAL
120V HOT
WIRING INFORMATION FOR
ELECTRIC STRIKE / MAG-LOCK SYSTEM
24V DC
24V DC
FOR ADDITIONAL WIRING INFORMATION CONTACT LCN CLOSERS
ELECTRICAL APPLICATIONS DEPT. AT 800 - 671 - 7011
12V DC
12V DC
