Page 7

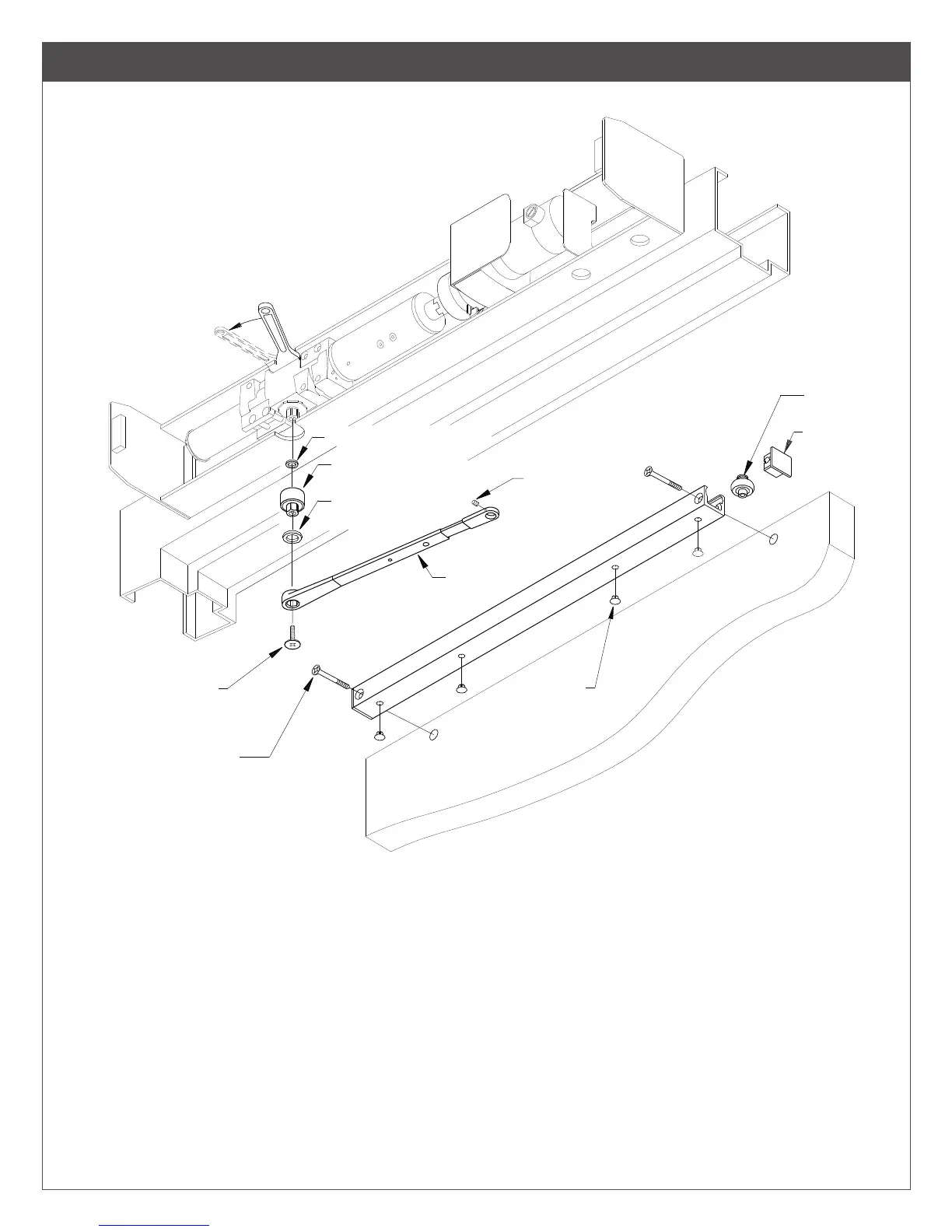

4630CS Series Arm Assembly
NOTE: Right hand door shown, left hand will be opposite.
5/16" LOCK WASHER
EXTENSION
ARM SET
SCREW
ROLLER
END CAP
TRACK
PLUG
ARM
SHAFT
SCREW
Fig. 6
SHAFT
SPACER
(2) 1/4 - 20 x 1 1/2" M.S.
OR
(2) No. 14 x 2 1/2" W.S.
ARM
ASSY
30°
1. Insert (4) track plugs into bottom of track, as shown in Fig. 6 above. Remove track end cap, insert track roller and replace end cap.
2. Mount track assembly to door, attaching securely with either (2) 1/4-20 x 1 Z\x” machine screws or (2) No. 14 x 2 Z\x” wood screws
provided.
3. Locate SHAFT EXTENSION, LOCK WASHER, SPACER & ARM SHAFT SCREW in fastener box. Fit arm and spacer onto shaft
extension. Place lock washer into the shaft extension so it locates between closer shaft and shaft extension. Place wrench on top
closer shaft and rotate approx. 30°, as shown above. Fit arm assembly over closer shaft and fasten with arm shaft screw as shown in
Fig. 6 above.
4. Open door partially. Pull closer arm away from frame. Fit hole in end of arm over the stud of track roller. Tighten arm set screw,
attaching arm to track.
5. Proceed to REGULATION INFORMATION on page 9.
