Page 12
Page 12

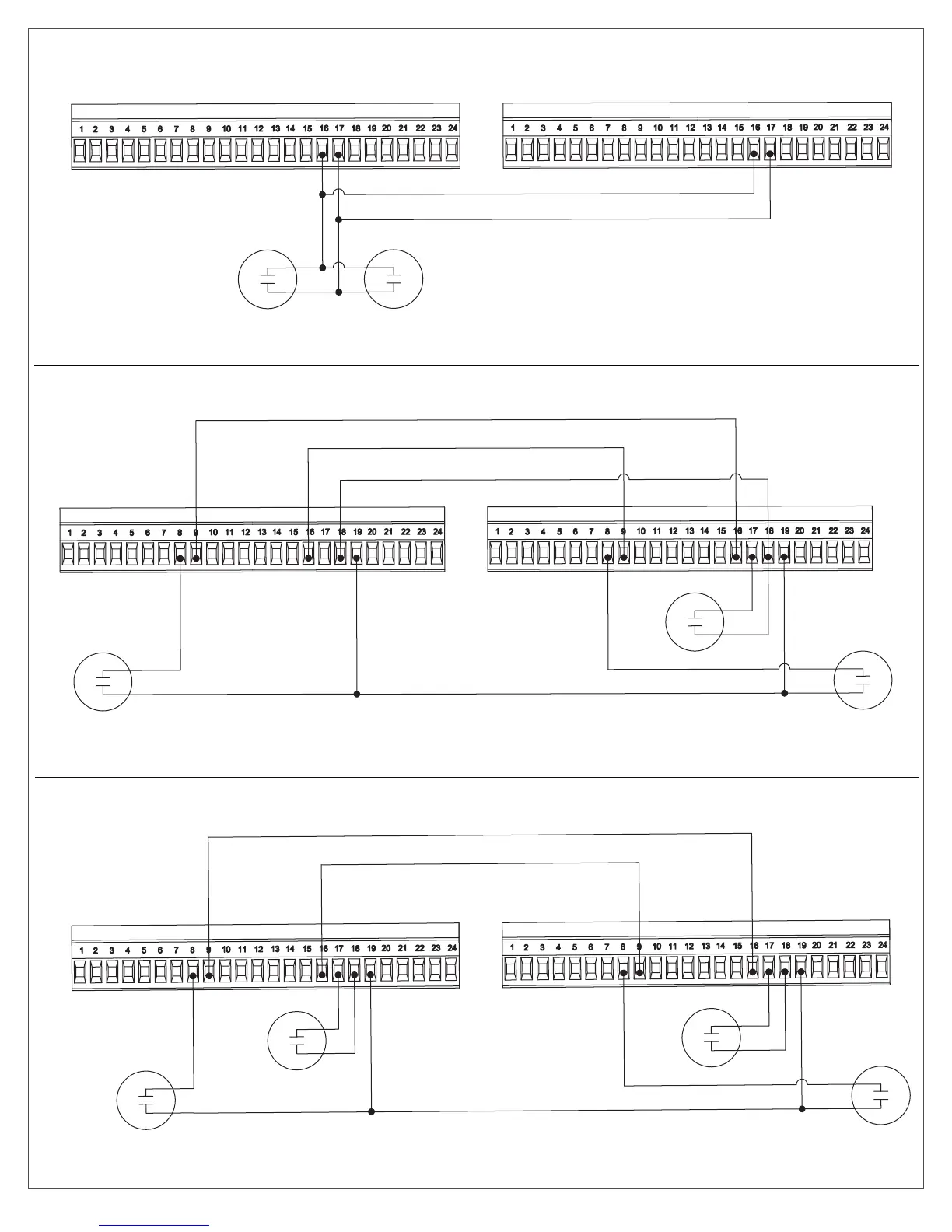

SIMULTANEOUS PAIR WIRING CONNECTIONS
SEQUENTIAL WIRING CONNECTIONS - SIMULTANEOUS VESTIBULE
SEQUENTIAL WIRING CONNECTIONS - INDEPENDENT VESTIBULE
SEQUENTIAL
ACTUATOR
SEQUENTIAL
ACTUATOR
VESTIBULE
ACTUATOR
VESTIBULE
ACTUATOR
ANY NORMALLY OPEN
DRY CONTACT ACTUATOR
ANY NORMALLY OPEN
DRY CONTACT ACTUATOR
SEQUENTIAL
ACTUATOR
SEQUENTIAL
ACTUATOR
VESTIBULE
ACTUATOR
ANY NORMALLY OPEN
DRY CONTACT ACTUATOR
