1.1 Check that the Product Model is correct for the required application.
1.2 Check that all parts listed on the Bill of Material are in the shipping container.
1.3 Check the architectural drawings and final approved shop drawings for the position

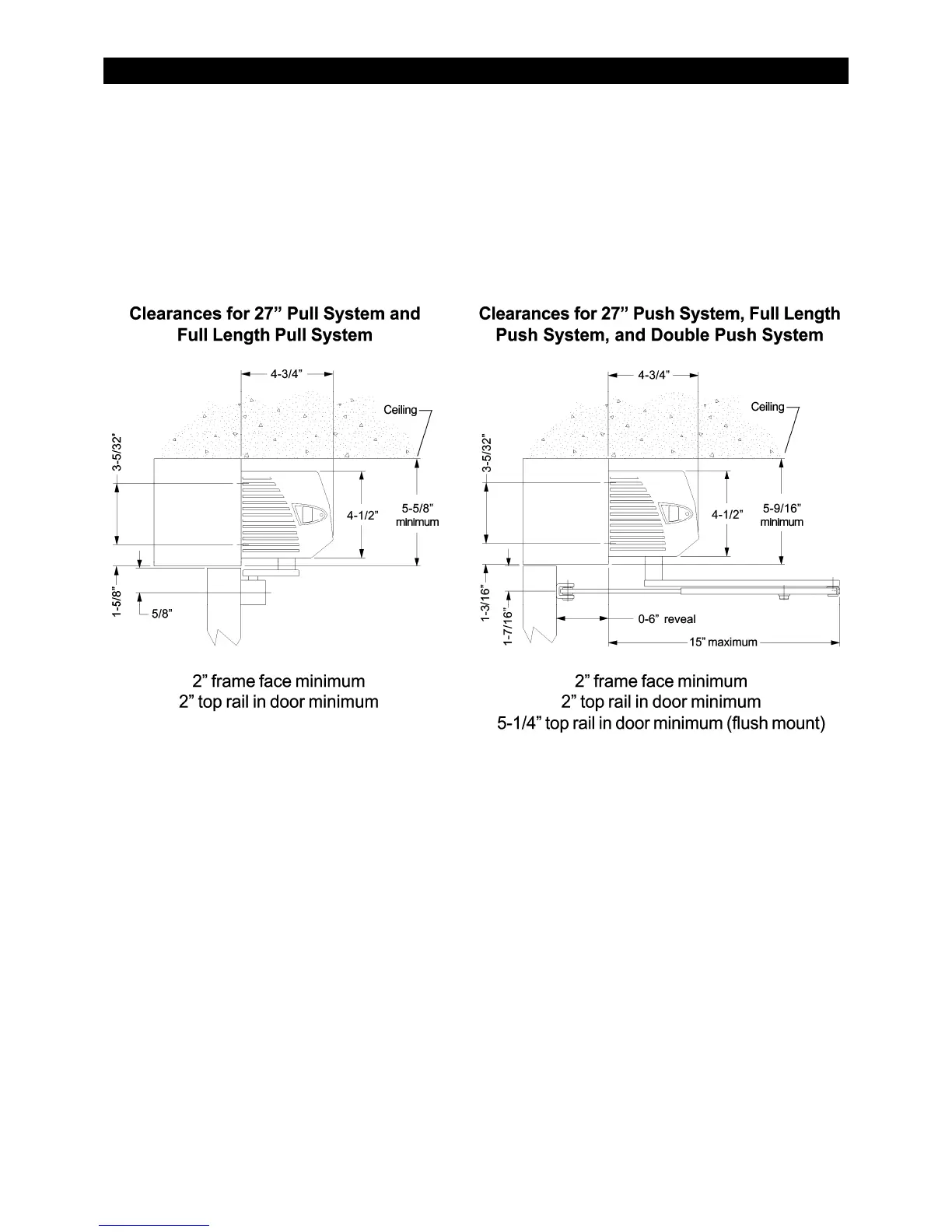

of frame and structural openings.
1.4 Check header and frame dimensions and required clearances.
1.5 Check Door Width: 26” minimum for 27” Push Operator
30” minimum for 27” Pull Operator
36” minimum for Full Length Push or Full Length Pull Operators
1.6 Check that Door Weight is 200 lbs. or less. For heavier door, consult factory.
1.7 Check that a 115 volt, single phase, 60 Hz, fused 15 amp, 3-wire power supply is available
at the side jamb with approximately 12” of wire available to connect to the Operator.
UL approved flexible conduit is recommended for the 115 volt power line.
The 115 volt power supply must be a dedicated circuit from the main circuit breaker panel
and must NOT be connected into any building lighting system that operates flourescent
lights.
1. PRE-INSTALLATION SITE & PRODUCT CHECK
