Double Push System
Header/Frame and Door Preparation

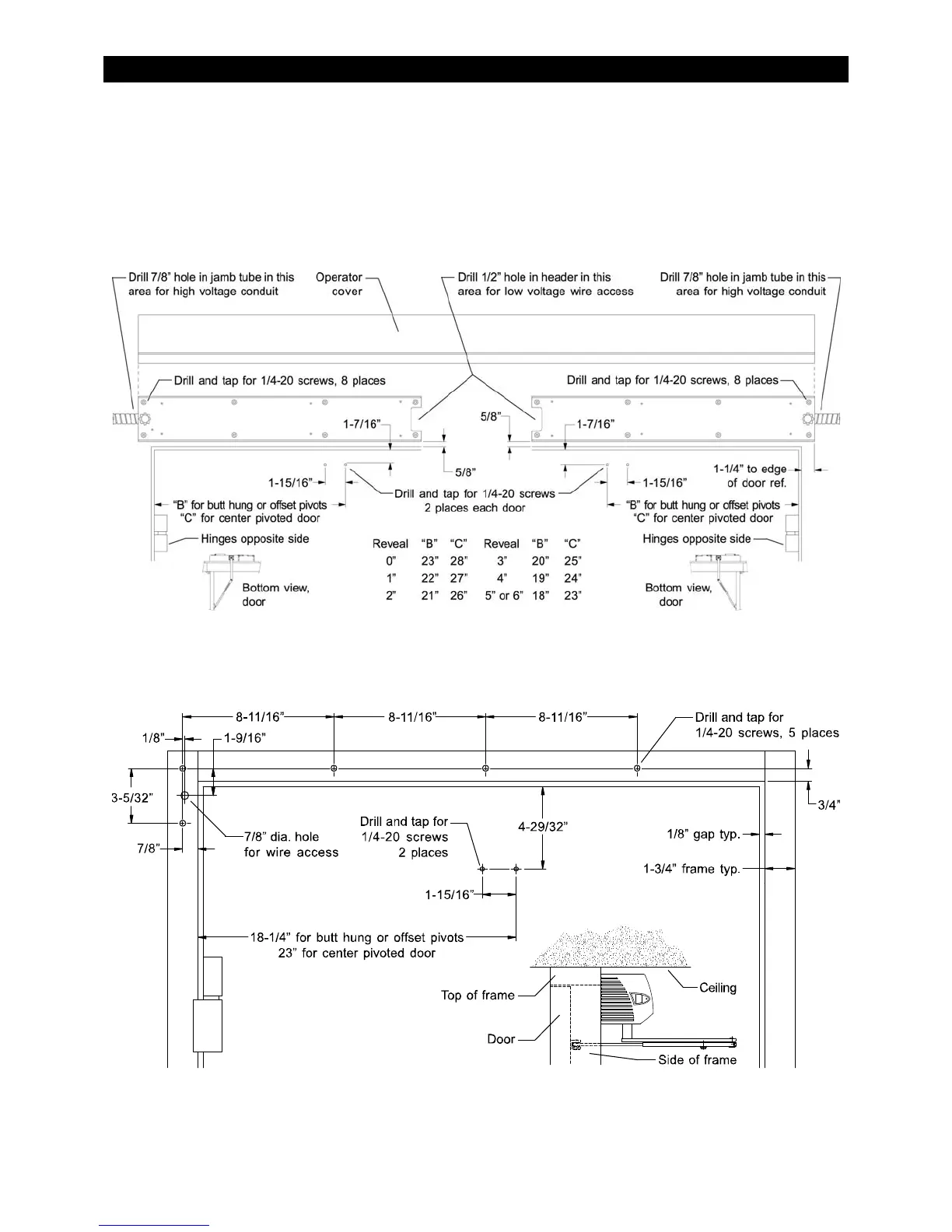

Center Operator Cover (with End Caps removed) over opening and mark a vertical line at each
end. Align ends of Operator Mounting Bracket and Switch Bracket with vertical lines and adjust
vertical position per diagram below. Mark and prepare mounting holes.
Low Ceiling Application (27” Push System Only)
Header/Frame and Door Preparation
2. OPERATOR INSTALLATION (CNTD)
