PAGE 7

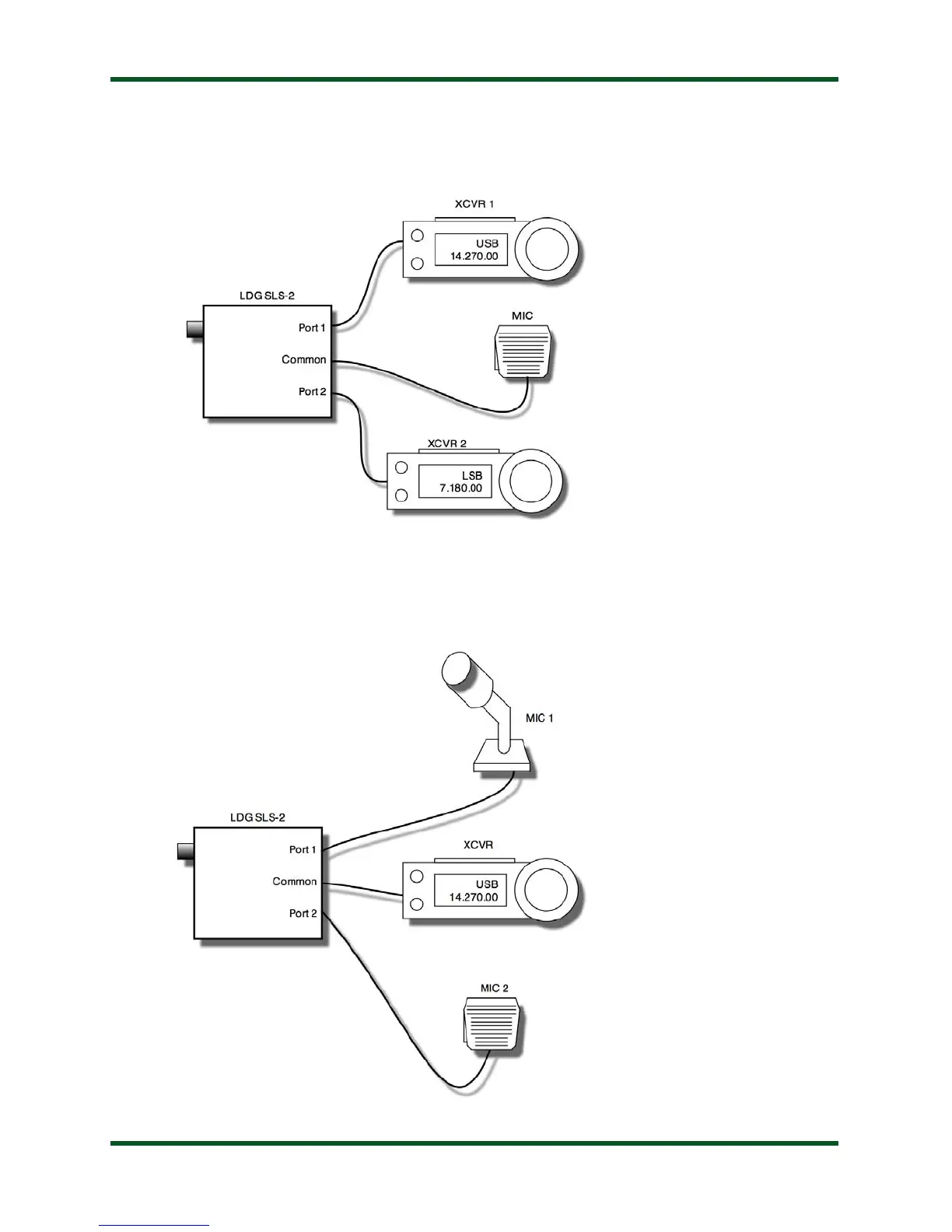

center pin is positive, and that the power supply is capable of 12 volts DC at 100 mA. An example

application is shown below. One microphone is switched between two identical transceivers.

Another example shows using two different microphones on the same radio:
