PAGE 10

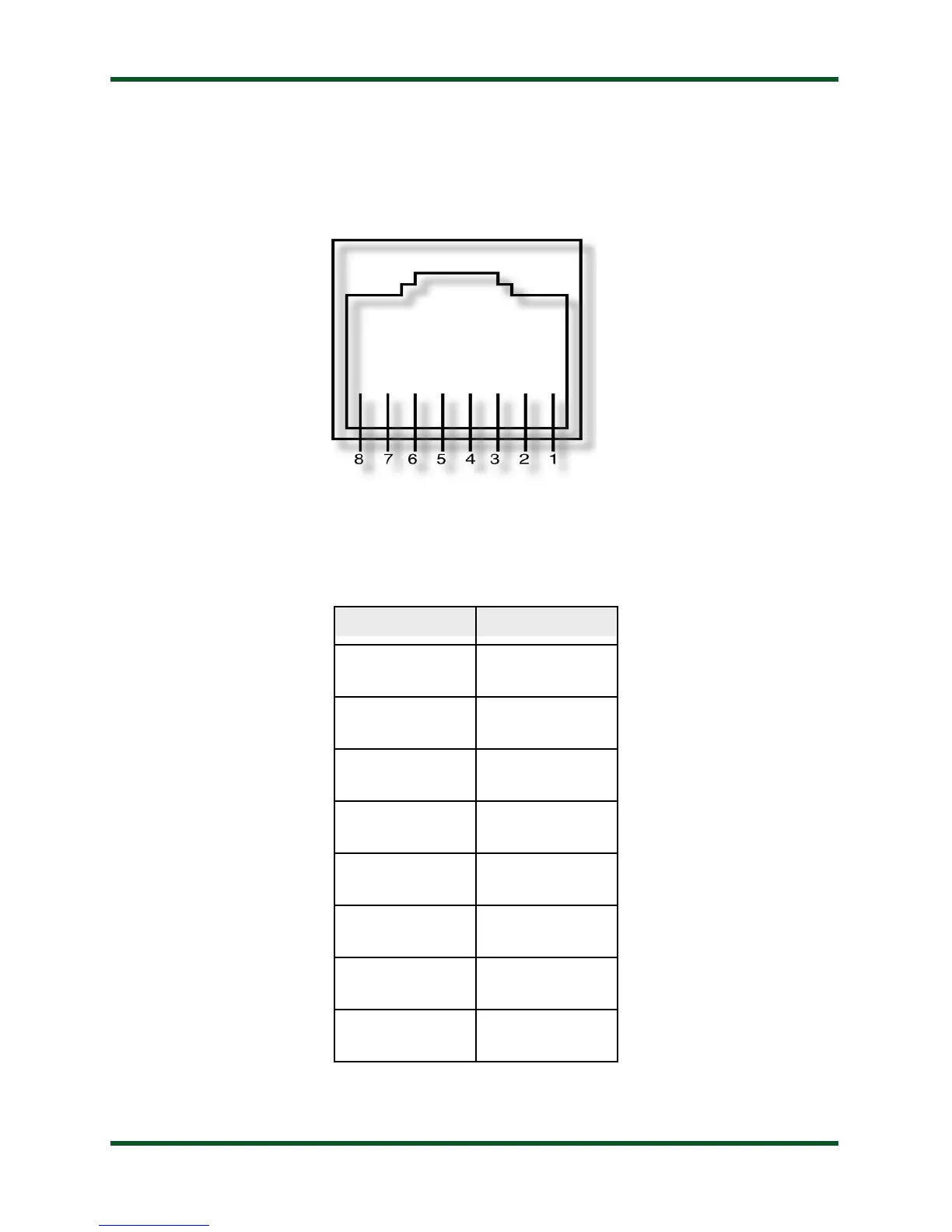

SLS-2 RJ45 Pin Diagram

The RJ45 jacks on the rear of the SLS-2 have the following pinout, which is a one-to-one

correspondence with the pinout of the jumper headers. NOTE: Not all manufacturers number

the pins of RJ45 connectors in this order. Some are reverse of this pinout.

Typical Kenwood Mic Pinout

Using this pinout as a guide, a typical Kenwood mic pinout would be as follows. Note that this

is provided for reference purposes only; consult your radio’s owners manual for exact pinout

information.

Number Name

1 Down

2 RX Audio

3 Mic +

4 Mic GND

5 PTT

6 GND

7 8V DC

8 Up

Typical Kenwood Mic Pinout
