AC Measurement for Low-voltage Range Gain Calibration
After validation, both the offset and gain error should be within
tolerance.
The pass/no-pass tolerance used during the validation is:
0.1 volt range: 1% of the Full Scale
0.01 volt range: 1% of the Full Scale
Low-voltage Range Calibration Result Validation
The Calibration Result Validation described previously will be repeated
for the Low-voltage Ranges of 0.1 V and 0.01 V.

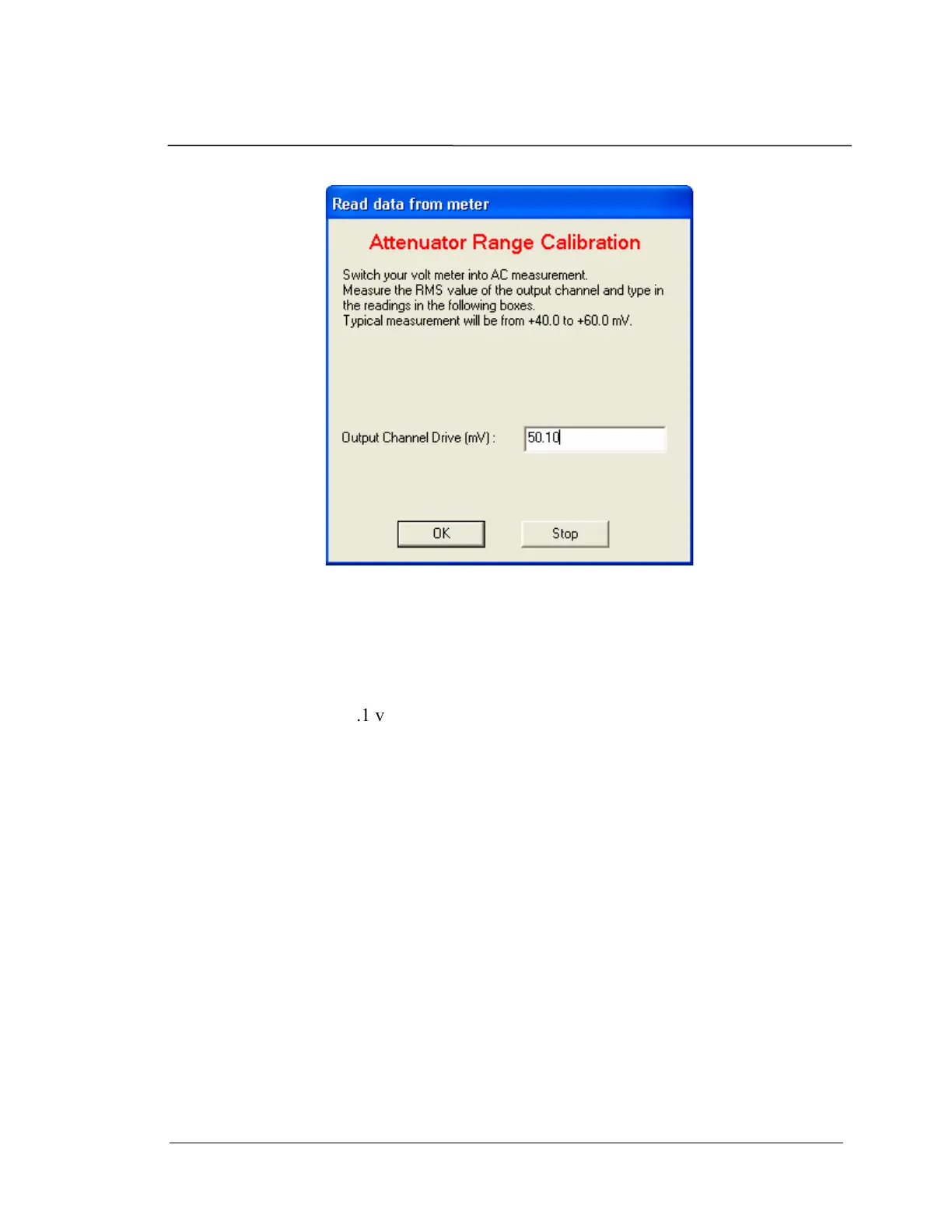

The dialog boxes below ask for a measurement and entry of the DC and
AC reading from the meter. The software will check the deviation of its
expected value and the measured value.
