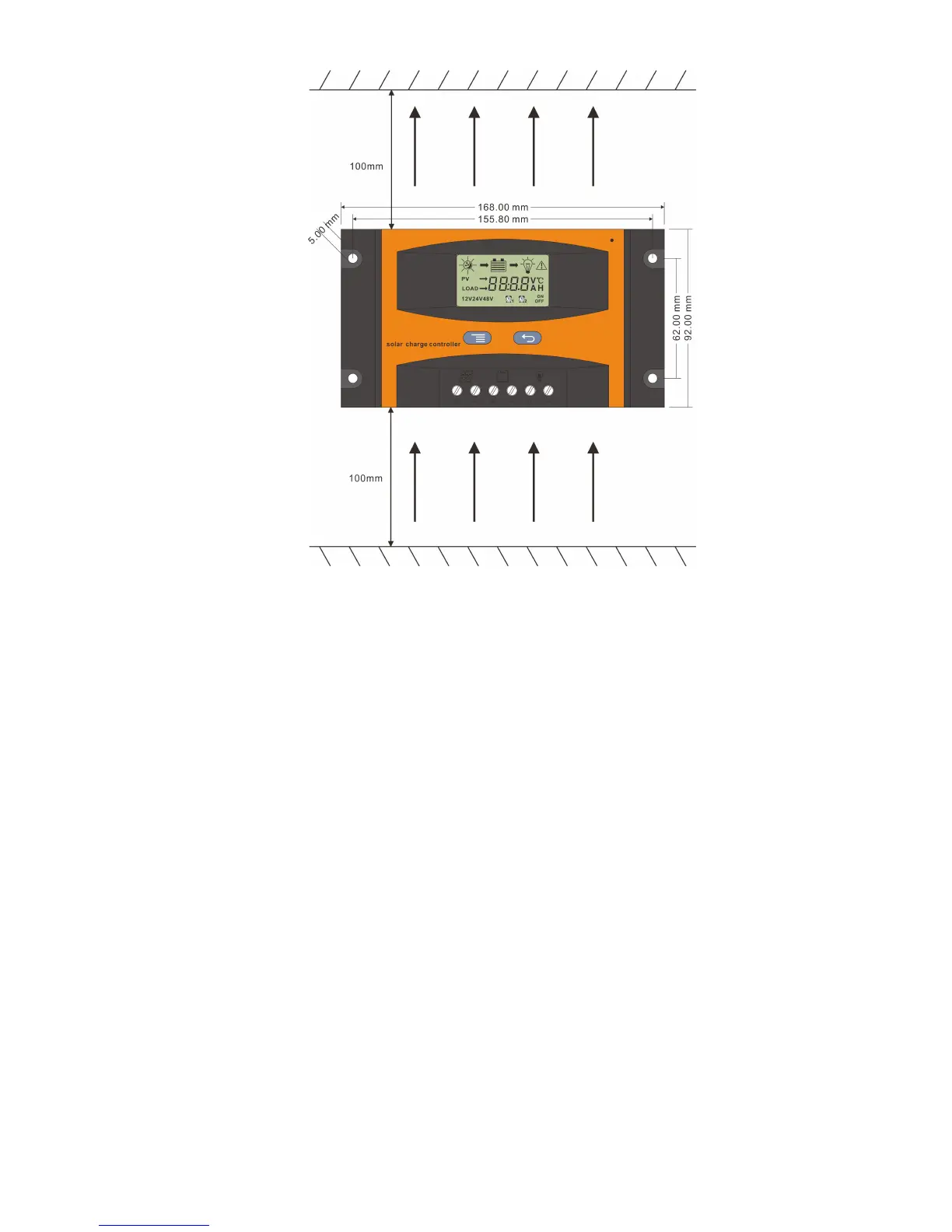

Controller Connection
1) All terminals are in tight status after factory, in
order to well connected, please loose all terminals
at first.
2) The following order of connection please do not free
change, or cause system voltage recognition fault.
3) As figure, first connected the battery to controller
correct poles. In order to avoid short circuit, please
screw the cable of battery to the controller in advance,
then connected to battery poles secondly. If your
