YZ，YT Series Easy-Load Pump Head
7
：
0312-3250677 3250877 3250977 FAX
：
●Put one side of the pump head flat shaft towards to drive, push on the groove
of coupling in front of drive. Make the pump head in suitable position, put the
pump head cling to the drive.
●Insert the 2 pieces of screws and 3 pieces of pump head nails to mounting
holes, tighten pump head nails.

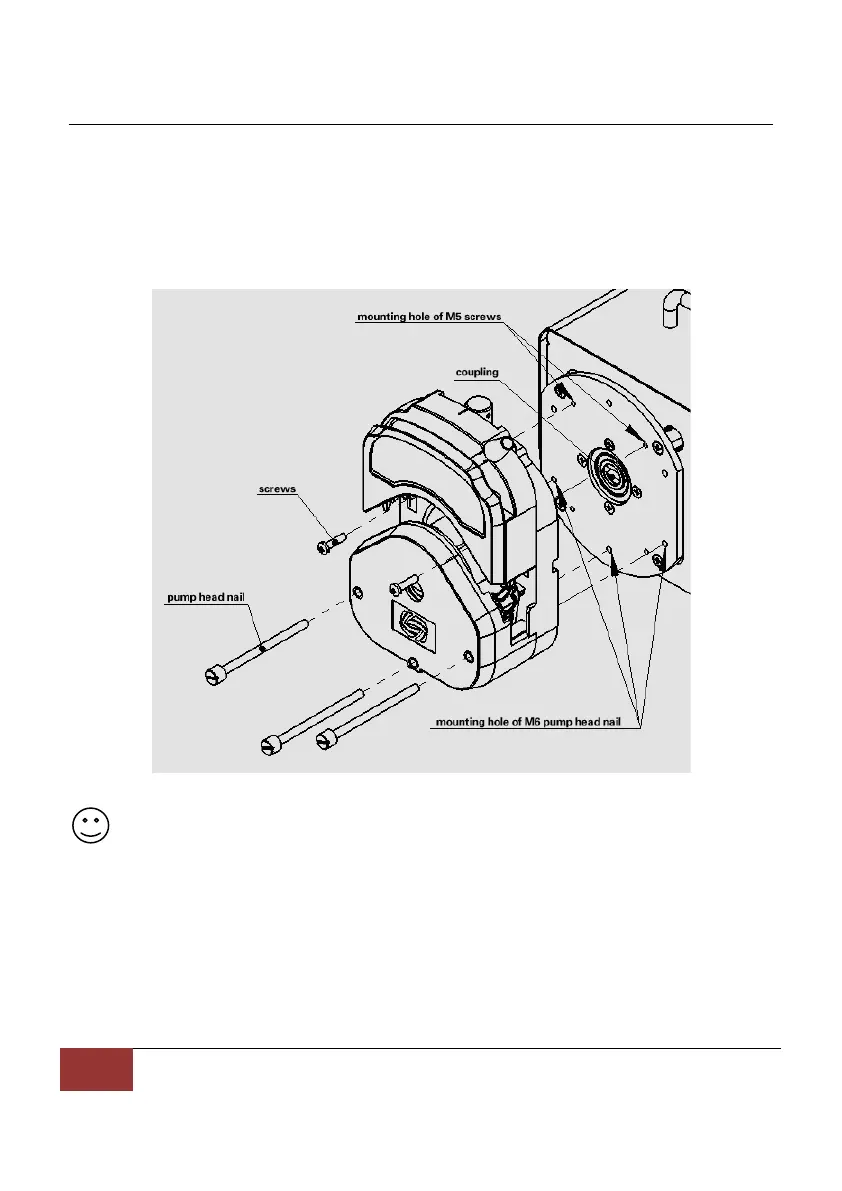

YZ35 pump head assembly drawing
Point out
In tightening the screws and fixed pump head nail shall ensure that the degree
of the same, and not too tight.
