M542C Full Digital Stepper Drive Manual V2.0
2
2.2 Operating Environment and other Specifications
(T
j
= 25℃/77℉)
Cooling Natural Cooling or Forced cooling
Operating Environment
Environment
Avoid dust, oil fog and corrosive gases
Ambient Temperature
0℃ － 65℃
Humidity
40%RH－90%RH
Operating Temperature
－10℃ － 45℃
Vibration
10-50Hz / 0.15mm
Storage Temperature
-20 ℃ － 65℃
Weight Approx. 300g (10.6oz)
2.3 Mechanical Specifications
(unit: mm [1inch=25.4mm])

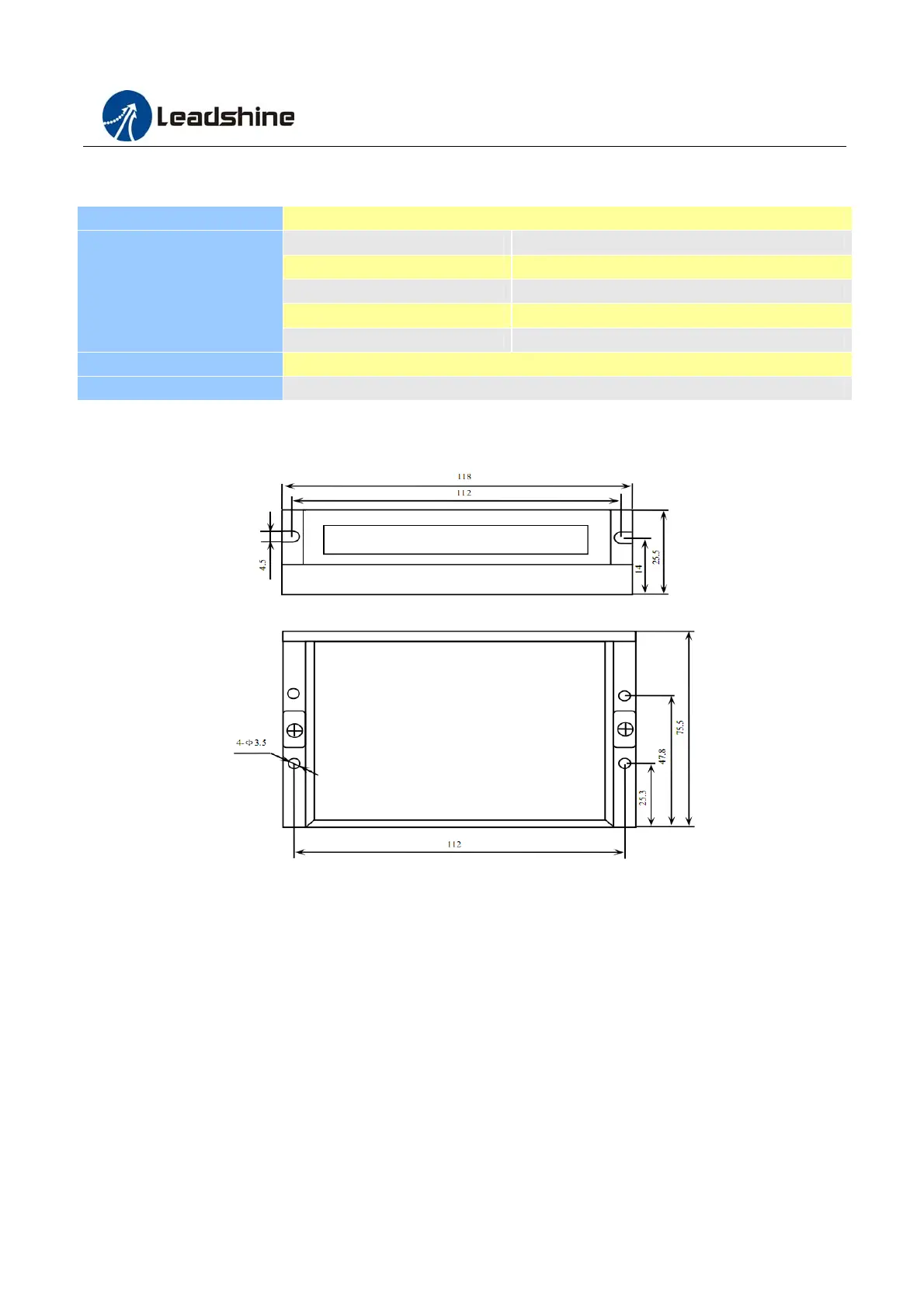

Figure 1: Mechanical specifications
*Recommend use side mounting for better heat dissipation
2.4 Elimination of Heating
Drive’s reliable working temperature should be <45℃(113℉), and motor working temperature should be
<80℃(176℉);
It is recommended to use automatic idle-current mode, namely current automatically reduce to 50% when motor
stops, so as to reduce drive heating and motor heating;
It is recommended to mount the drive vertically to maximize heat sink area. Use forced cooling method to cool
the system if necessary.
3 Pin Assignment and Description
The M542C has two connectors P1&P2, P1 is for control signals connections, and P2 is for power and motor
connections. The following tables are brief descriptions of the two connectors. More detailed descriptions of the pins
To Next Page
