2.2 Environment
Cooling
Natural Cooling or Forced Cooling
Operating Environment
Environment
Avoid dust, oil fog and corrosive gases
Ambient Temperature
0°C － 65°C (32°F - 149°F)
Humidity
40%RH－90%RH
Operating Temperature
0°C － 50°C (32°F - 122°F)
Vibration
10-50Hz / 0.15mm
Storage Temperature
-20°C － 65°C (-4°F - 149°F)
Weight
Approx. 570 g (20.2 Oz)
2.3 Mechanical Specifications
(unit: mm [1inch=25.4mm])

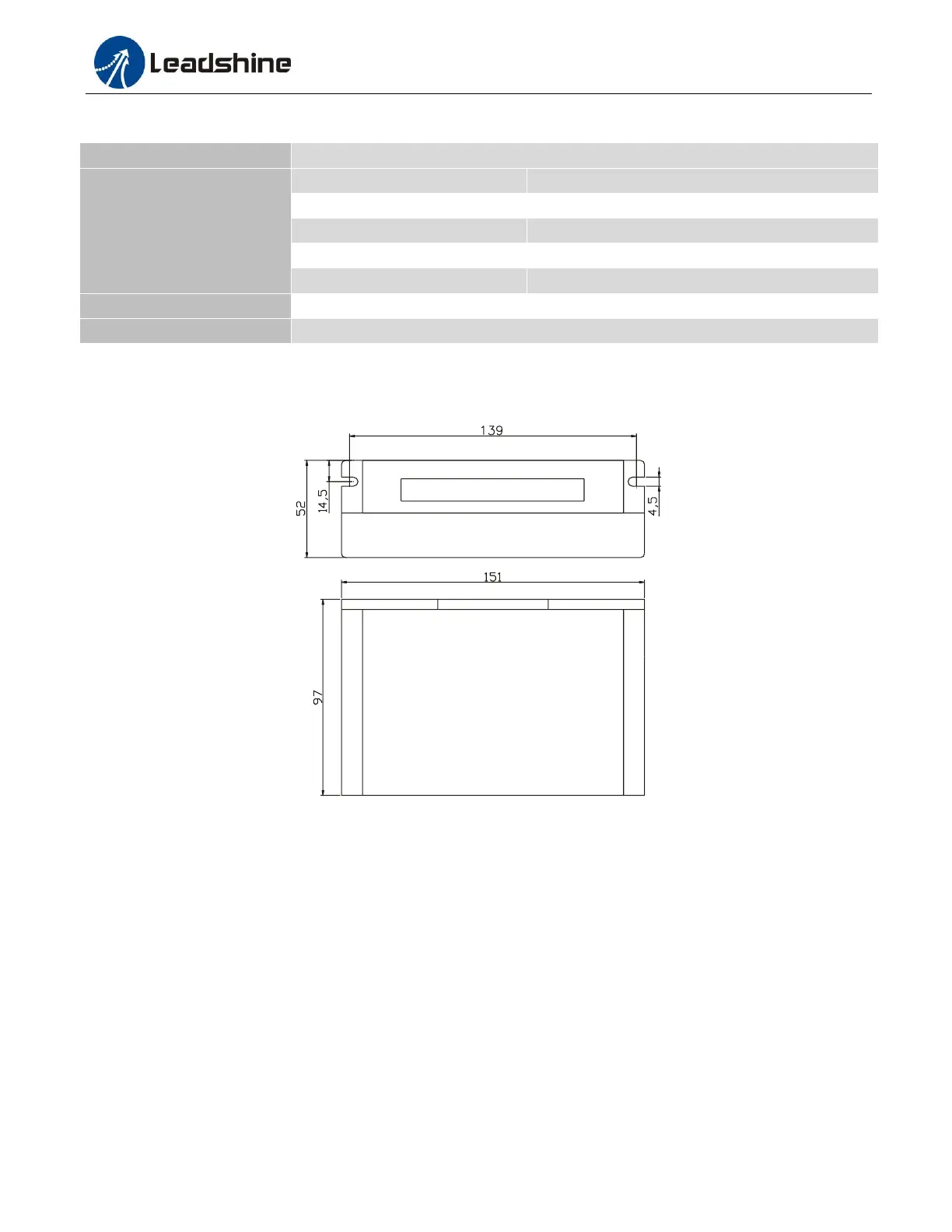

Figure 1: Mechanical specifications
2.4 Heat Dissipation
 CS-D808 reliable working temperature should be no more than 60℃ (140°F)
 It is recommended to mount the drive vertically to maximize heat dissipation. Mount a cooling fan nearby if
necessary.
 If multiple CS-D808 drives are installed, it is suggested to keep a minimal 30mm (12 inches) between two of
them.
