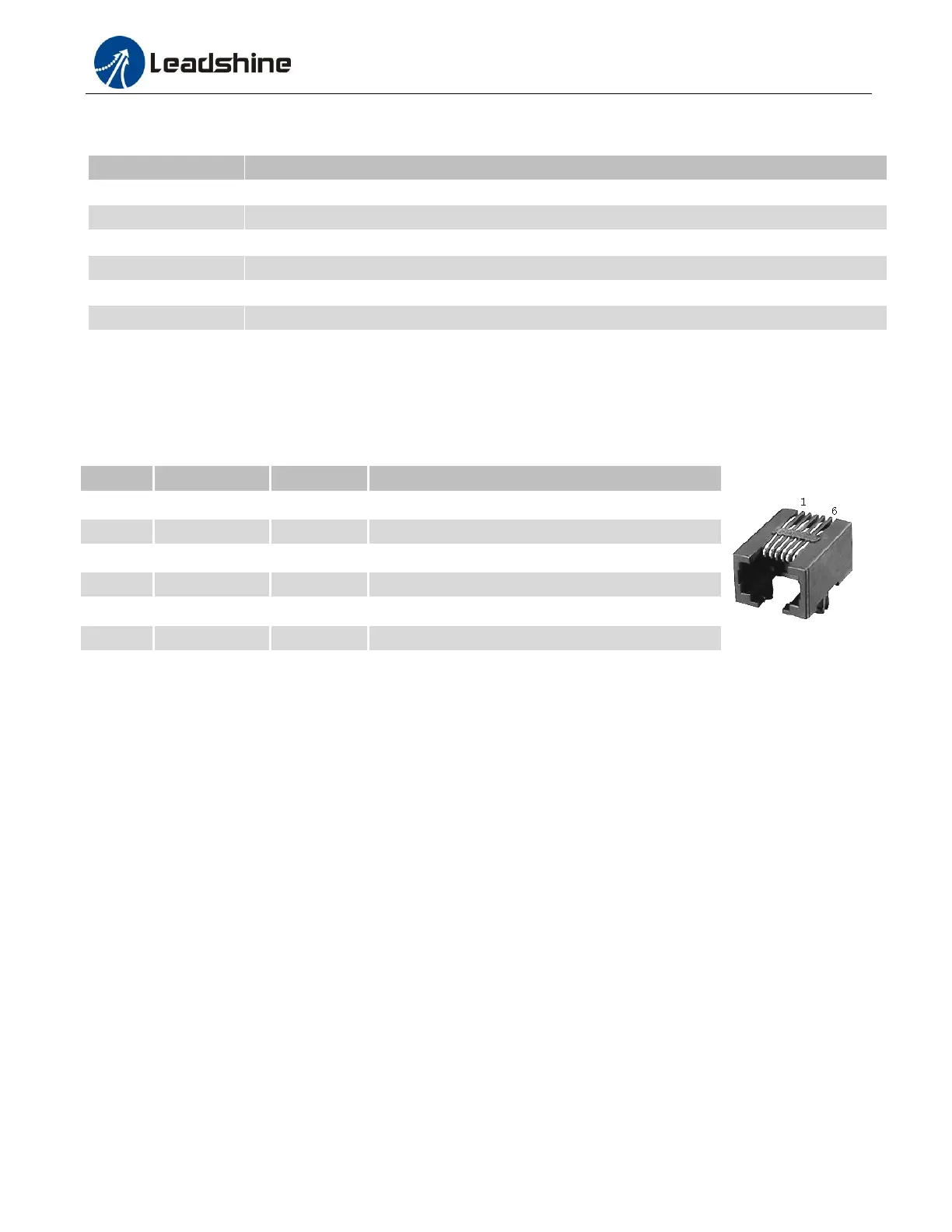

3.3 Connector P4 - Motor and Power Supply Connection
The P4 connector in Figure 2 is for motor connection. Refer to the following table for details.
Pin Name
Details
A+
Stepper motor A+ connection. Connect motor A+ wire to this pin
A-
Stepper motor A- connection. Connect motor A- wire to this pin
B+
Stepper motor B+ connection. Connect motor B+ wire to this pin
B-
Stepper motor B- connection. Connect motor B- wire to this pin
+Vdc
Power supply positive connection. 30-80VDC power supply voltage
GND
Power supply ground connection.
Notes: see Appendix B for compatible Leadshine power supplies
3.4 Connector P5 – RS232 Connection
The P5 connector in Figure 2 is a RS232 communication port for PC connection. Refer to the following pin definitions.
RS232 Communication Port – RJ11
Pin
Name
I/O
Description
1
NC
-
Not connected.
2
+5V
O
+5V power output.
3
TxD
O
RS232 transmit.
4
GND
GND
Ground.
5
RxD
I
RS232 receive.
6
NC
-
Not connected.
Notes: RS232 connection of CS-D808 is for tuning purpose only, not for RS232 command controls.
3.5 LED Light Indication
There are two LED lights for CS-D808, one red and one green. The GREEN one is the power indicator which will be
always on generally. The RED one is a protection indicator. It is off always when a CS-D808 operates normally, but
will flash 1, 2 or 7 times in a 5-second period when error protection is enabled. Different number of flashes indicates
different protection type (read Section 9).
4. Motor Selection
The CS-D808 is designed to power 2-phase (or 4-phase 0.9 degree) NEMA 34 stepper motors with 1000-line
incremental encoders. Leadshine offers many high performance stepper motors compatible with the CS-D808 which
you can find in the Appendix A of this document. The CS-D808 can also power similar stepper motors with 1000-line
incremental encoders from third-party suppliers.
5. Power Supply Selection
The CS-D808 can power medium size closed loop stepper motors (frame size NEMA 34) from Leadshine (see
Appendix A) or other motor manufacturers. To get good system performance, it is important to select proper supply
voltage and output current. Generally speaking, supply voltage determines the high speed performance of the motor,
