CS-D808 Closed Loop Stepper Drive User Manual
Page | 9

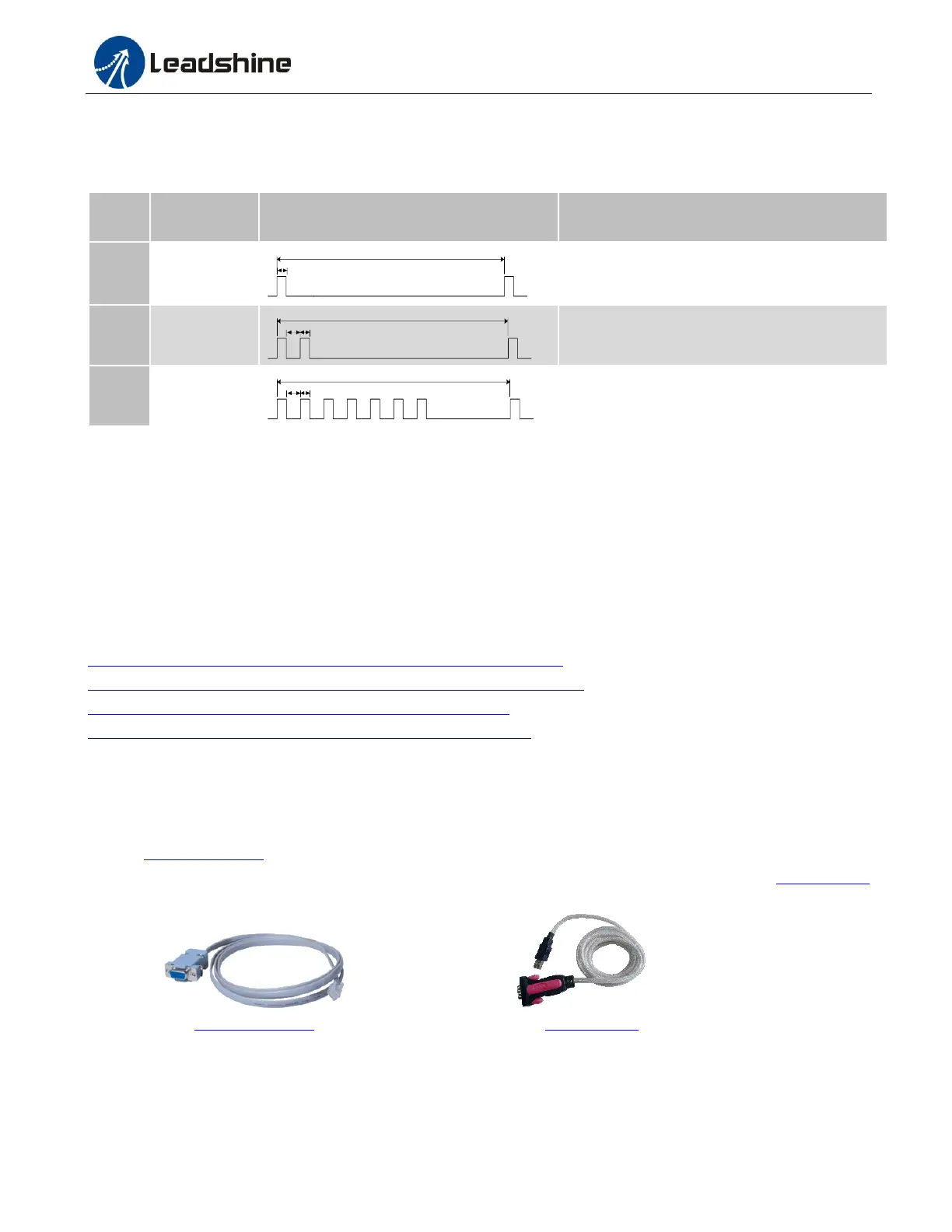

9. Protection Functions
To improve reliability, the drive incorporates some built-in protections features.
Over-current protection activated when peak
current exceeds the limit.
Over-voltage protection activated when drive
working voltage is greater than 113VDC
When above protections are active, the motor shaft will be free or the red LED blinks. Reset the drive by repowering it
to make it function properly after removing above problems.
10. Software Configuration
The CS-D808 is designed for simple setup and implementation. For most applications no software configuration or
tuning is needed especially when driving Leadshine stepper motors with encoders (see Appendix A). If you want to do
fine tuning or custom configurations such as micro-step, current percentage change…, you can use Leadshine’s free
ProTuner software to make the changes. Download ProTuner at
http://www.leadshine.com/UploadFile/Down/ProTuner_CS_Ds.V1.0.zip or
http://www.leadshineusa.com/UploadFile/Down/ProTuner_CS_Ds.V1.0.zip. Download the software manual at
http://www.leadshine.com/UploadFile/Down/CS-Dsm_V1.0.pdf or
http://www.leadshineusa.com/UploadFile/Down/CS-Dsm_V1.0.pdf.
11. Accessories
If you plan to use the ProTuner software, contact your supplier or Leadshine to purchase the RS232 cable with part
number 1.4.4-0609505-B3 for connecting the CS-D808 to a computer with Windows XP / 7 installed. In the case of
using USB to RS232 conversion, contact your supplier or Leadshine for such a cable with part number USBToRS232
which has been verified working fine.
1.4.4-0609505-B3 USBToRS232
(RS232 tuning cable) (USB to RS232 Conversion Cable)
12. Troubleshooting
In the event that your drive doesn’t operate properly, the first step is to identify whether the problem is electrical or
