LR9101X Specifications Sheet Rev. 1.3
6. Mechanical drawing and footprint
Items
Description
Length
15.0 ± 0.3 mm (590.6 ± 12 mil)
Width
14.0 ± 0.3 mm (551.2 ± 12 mil)
Height
2.80 ± 0.3 mm (110.2 ± 12 mil)

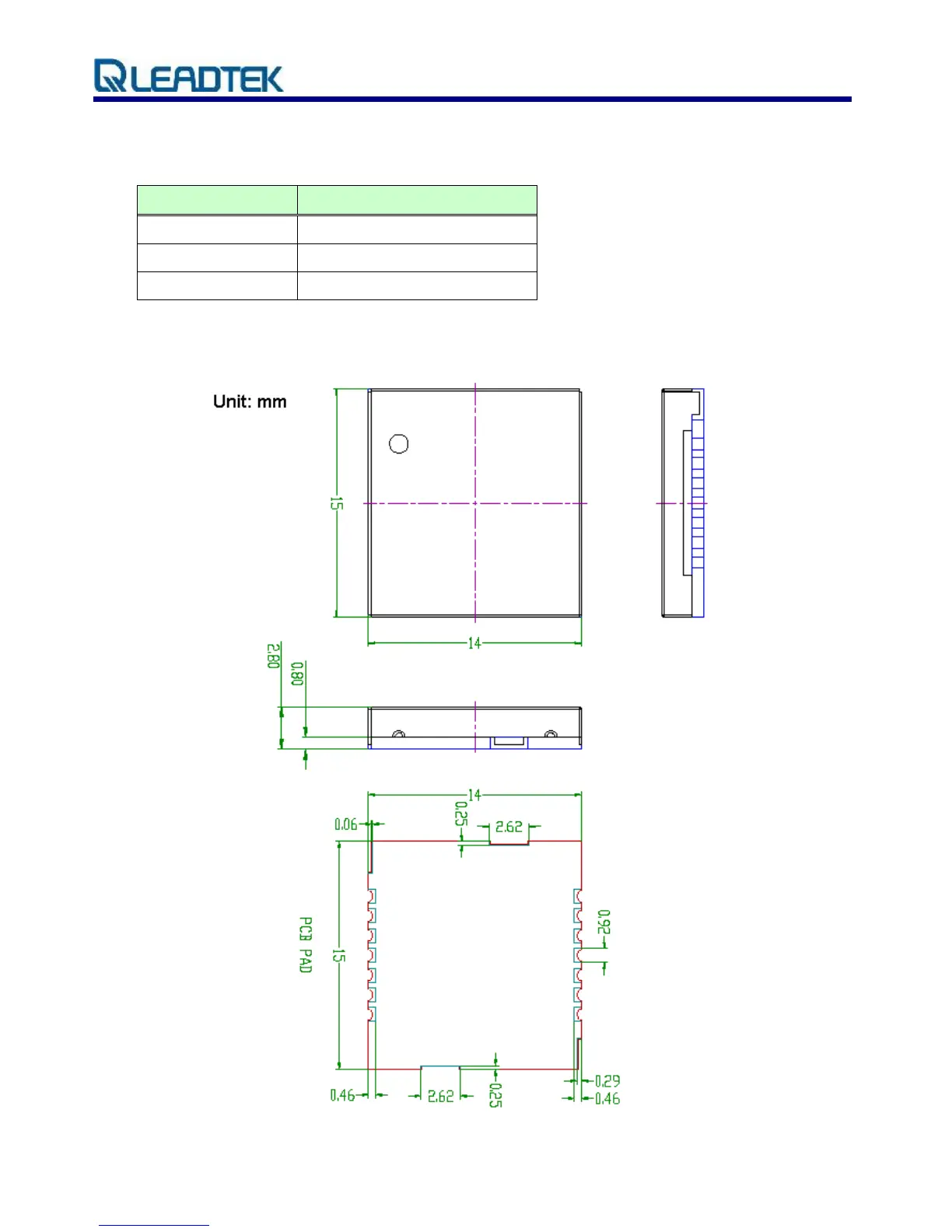

6.1. Outline Drawing
