© 2009 Leadtek Research Inc. All rights reserved. Page 15/19
Leadtek Confidential - Information is subject to change without prior notice.

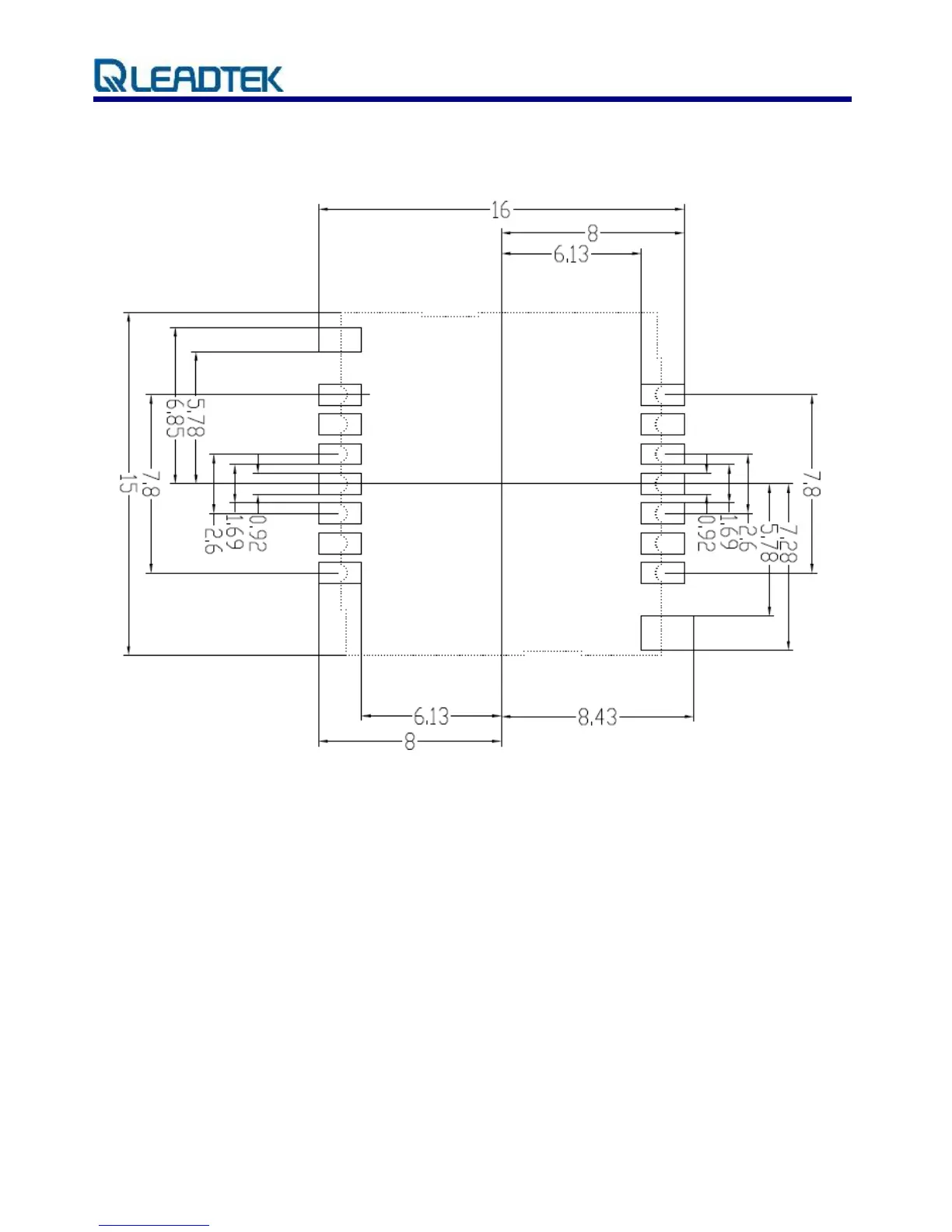

6.2. Recommended footprint ( Top view )
.
Note: 1. Tolerance of recommended pad: 1.87 * 0.92 (+/- 0.1 mm )
2. Recommended pad for pin 9 is 2.3 * 1.5 mm ( +/- 0.1 mm )
7. Application Notes
LR9101X is a compact-sized GPS module, specific for patch antenna design. It has the
pin- to-pin compatibility with LR9102, which is specific for active antenna design.
It requires additional power supply with 3.3V externally, in case of using active antenna.
