LR9101X Specifications Sheet Rev. 1.3
8.2. Polystyrene Alloy Taping Specifications
10 sprocket hole pitch cumulative tolerance ±0.20mm
Carrier camber is within 1mm in 100mm
A0 and B0 measured on a plane 0.3mm above the bottom of the pocket
K0 measured from a plane on the inside bottom of the pocket to the top surface of the
carrier
All dimensions meet EIA-481-2 requirements
22” 1R= 63M 3000PCS 13”21M 1000PCS

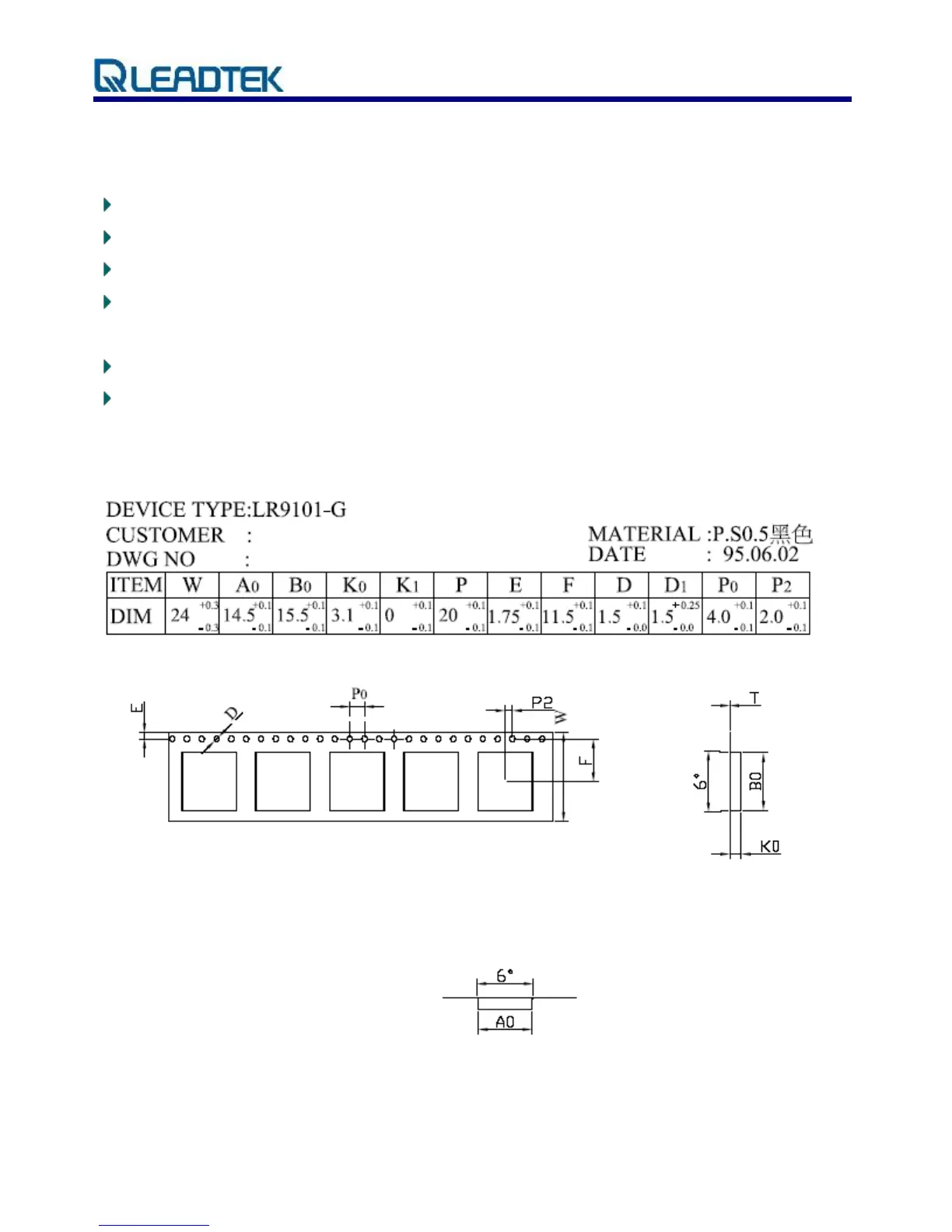

8.3. Polystyrene Alloy Taping Drawing
