Leadtek Quadro Series - Quadro 700;750 XGL Connectors; Quadro 550;580 XGL Connectors

Quadro 750 XGL
Quadro 700XGL
VGA
connector
DVI-I connector
Stereo 3D
Connector
DVI-I connector
Stereo 3D
connector

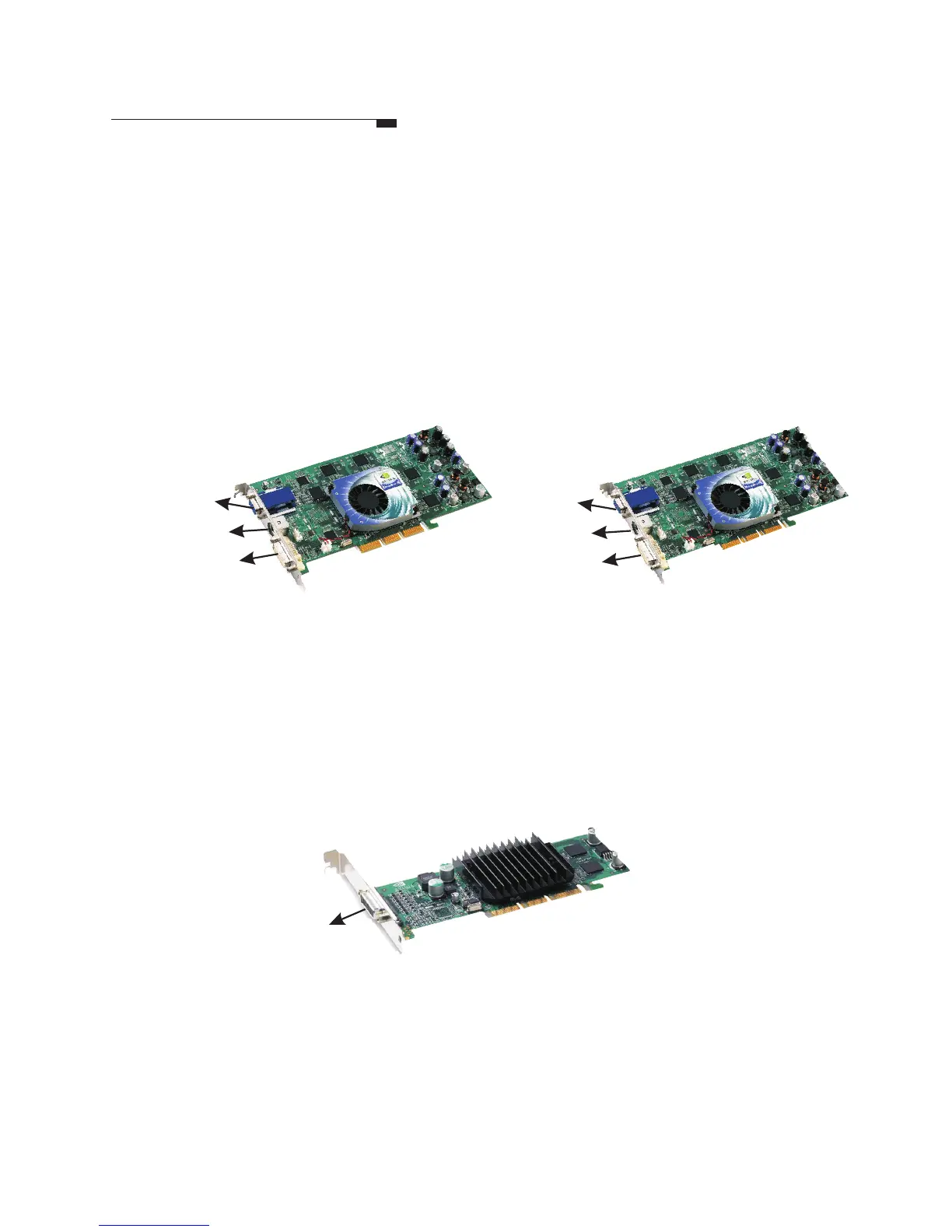

Board Layout
Quadro 700/750 XGL connectors
The Quadro 700/750 XGL has both VGA and DVI-I connectors. These cards
support:
Single VGA output
Dual VGA output ( using a DVI-I to VGA adapter)
Single DVI-I output
VGA+DVI-I output
VGA
connector
Quadro 550/580 XGL connectors
The Quadro 550/580 XGL has a single LFH 60-pin connector. Each LFH connector
can support two monitors, using the supplied splitter cable. Your card is shipped
with one DVI-I+DVI-I splitter cable per LFH port and two DVI-I to VGA adapters
per splitter cable.
LFH 60-pin
connector
Quadro 550/580 XGL
Leadtek Quadro Series General Guide 4
(Continued on next page)
