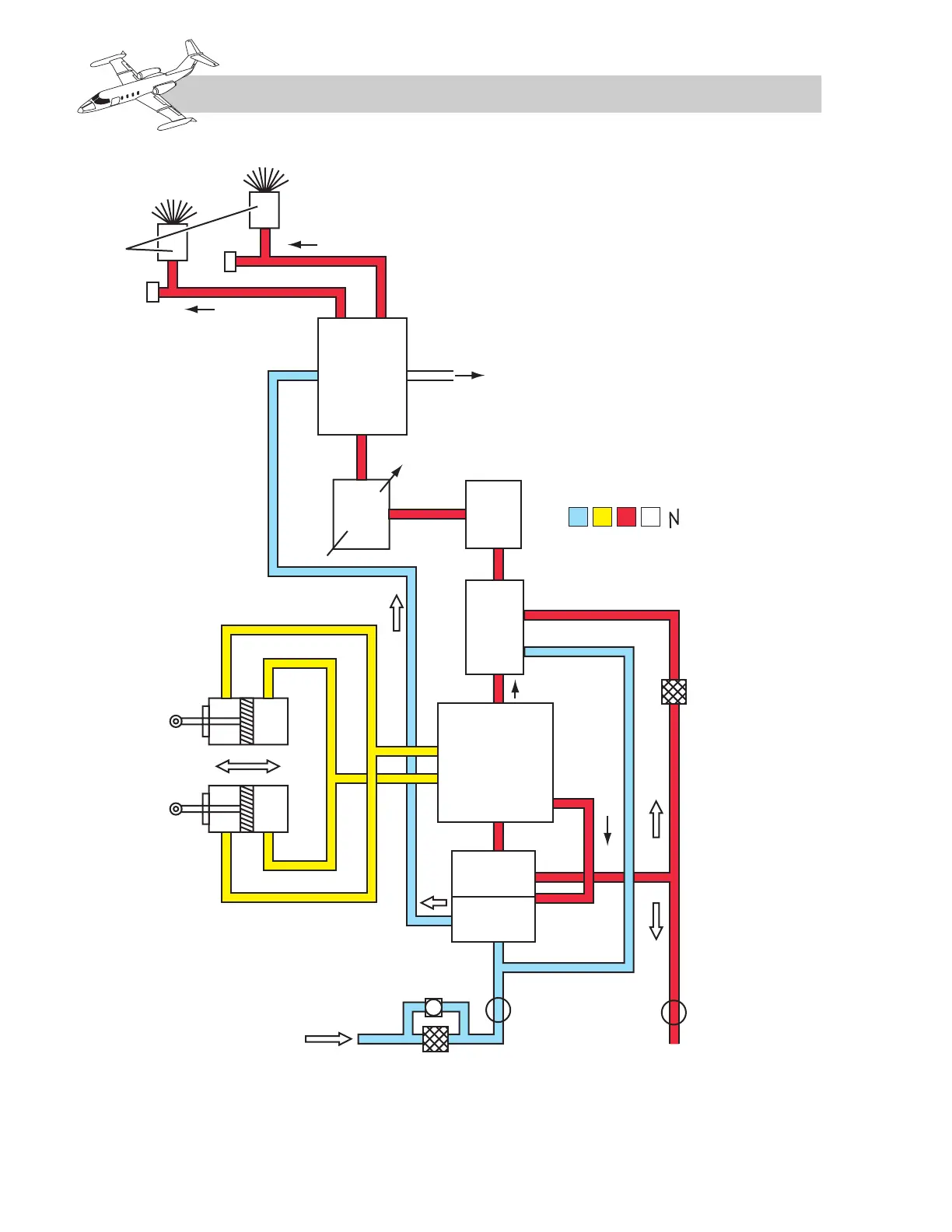

Figure 7-11. Fuel System Schematic
VARIABLE GUIDE VANE
ACTUATORS
FLOW DIVIDER/FUEL NOZZLES (12)
RH MANIFOLD
OIL IN
TO EPA COLLECTOR
OIL OUT
SENSE LINE
FUEL FILTER
BYPASS
FROM TANK
FILTER
FUEL
SHUTOFF
VALVE
MOTIVE-FLOW
SHUTOFF VALVE
LH MANIFOLD
BOOST
ELEM
GEAR
ELEM
MAIN FUEL
CONTROL
OVERSPEED
GOVERNOR
FLOW-
METER
FILTER
PRESSURIZING
AND
DRAIN VALVE
OIL
COOLER
DRAIN FUEL ELECTRICAL HP FUEL PRESSURE REGULATED PRESSURE SUPPLY FUEL
