Learjet 24 - Page 327

16-10
FOR TRAINING PURPOSES ONLY
LEARJET 20 SERIES PILOT TRAINING MANUAL
FlightSafety
international
10 10
20
20
200
100
10 10
H D G
MILES
COURSE
5.2
01 1
COURSE
ATTITUDE
DISPLAY
HORIZON
LINE
GLIDE-SLOPE
POINTER
AIRPLANE
SYMBOL
RUNWAY
SYMBOL
BANK
POINTER
BANK
INDEX
RADAR
ALTITUDE
COURSE
DISPLAY
HEADING
MARKER (BUG)
AZIMUTH
CARD
LATERAL
DEVIATION
BAR (CDI)
DISTANCE
DISPLAY
COURSE
ARROW
TO–FROM
ARROW
GLIDE-SLOPE
POINTER
AIRPLANE
SYMBOL
HEADING
KNOB
COURSE
KNOB
COMMAND
BARS
INCLINOMETER
N
33
30
W
24
21
S
15
12
E
6
3

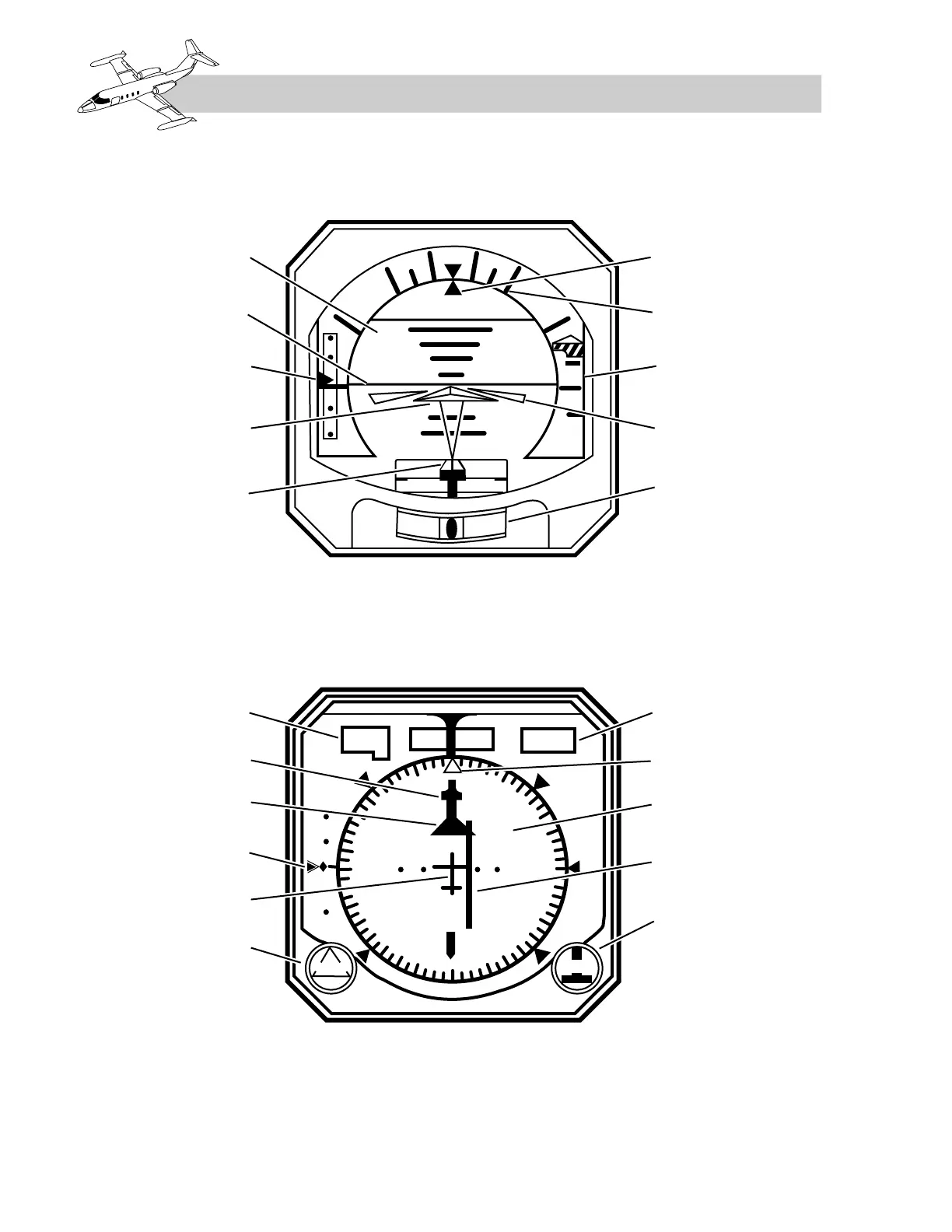

Figure 16-11. ADI and HSI Symbology
