2.2.2 Assemble the Stand

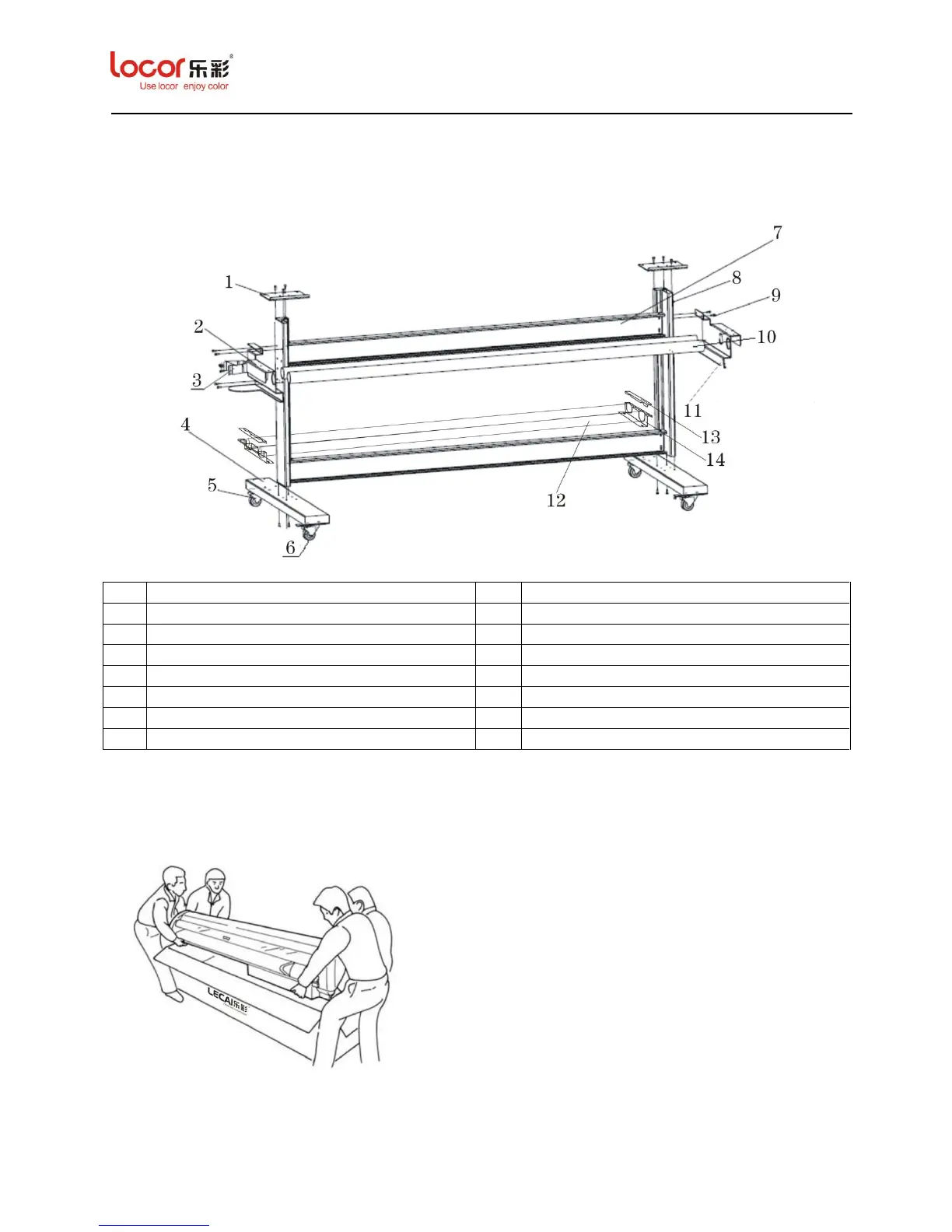

Assemble the Stand based on the following illustration.
No.
Name
No.
Name
1
Metal Gasket
8
Vertical Stand
2
Feeling Unit Right Loading Bracket
9
Screws
3
Waste-ink Bottle Holder
10
Feeding Unit Slide Bar
4
Horizontal Stand
11
Feeling Unit Left Loading Bracket
5
Caster(Unlockable)
12
Take up Unit Slide Bar
6
Caster (Lockable)
13
Take up Unit Loading Bracket Holder
7
Beam
14
Take up Unit Loading Bracket
2.2.3 Assemble the Printer
Notice:
For safety, at least 4 people are needed for
assembling the printer.
When taking the main printing unit out of the
package, please be careful so as to avoid your
hands being scratched.
a. Take out the main printing unit out from the
package.
