HOW TO USE

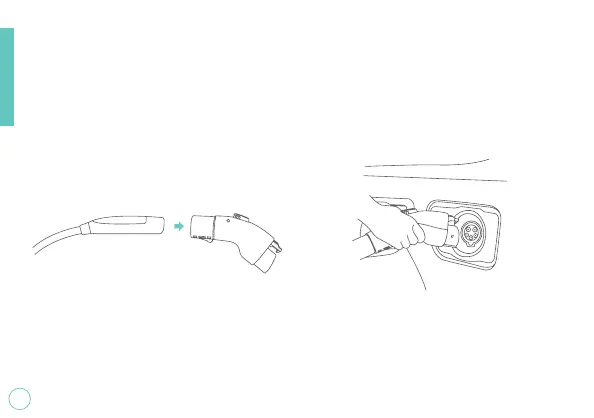

1. Connect the Tesla Charger
to the Lectron Adapter.
Wait at least 30s before
connecting it to your J1772
electric vehicle.
2. Firmly plug in the Lectron
Adapter into your J1772
electric vehicle.
Note: If you are using Tesla Destination Charger or a Tesla Wall Connector
and see a red light blinking on the charger, immediately adjust the
charger current to 48A or below (set the rotary switch to position 1-8).
