Hardware Front Panels
The front panels of the DM Series components provide
USB and LCD interfaces. The USB port is provided on
the front panel as a convenience, when adjustments
need to be made after the unit is installed. The LCD
interface is typically used for minor adjustments to
various levels.
The front panel LCD controls can be locked out with
special button presses to prevent tampering and inad-
vertent adjustments. The control interface is the same
for all three models, since the difference between them
is simply the number of inputs and outputs.

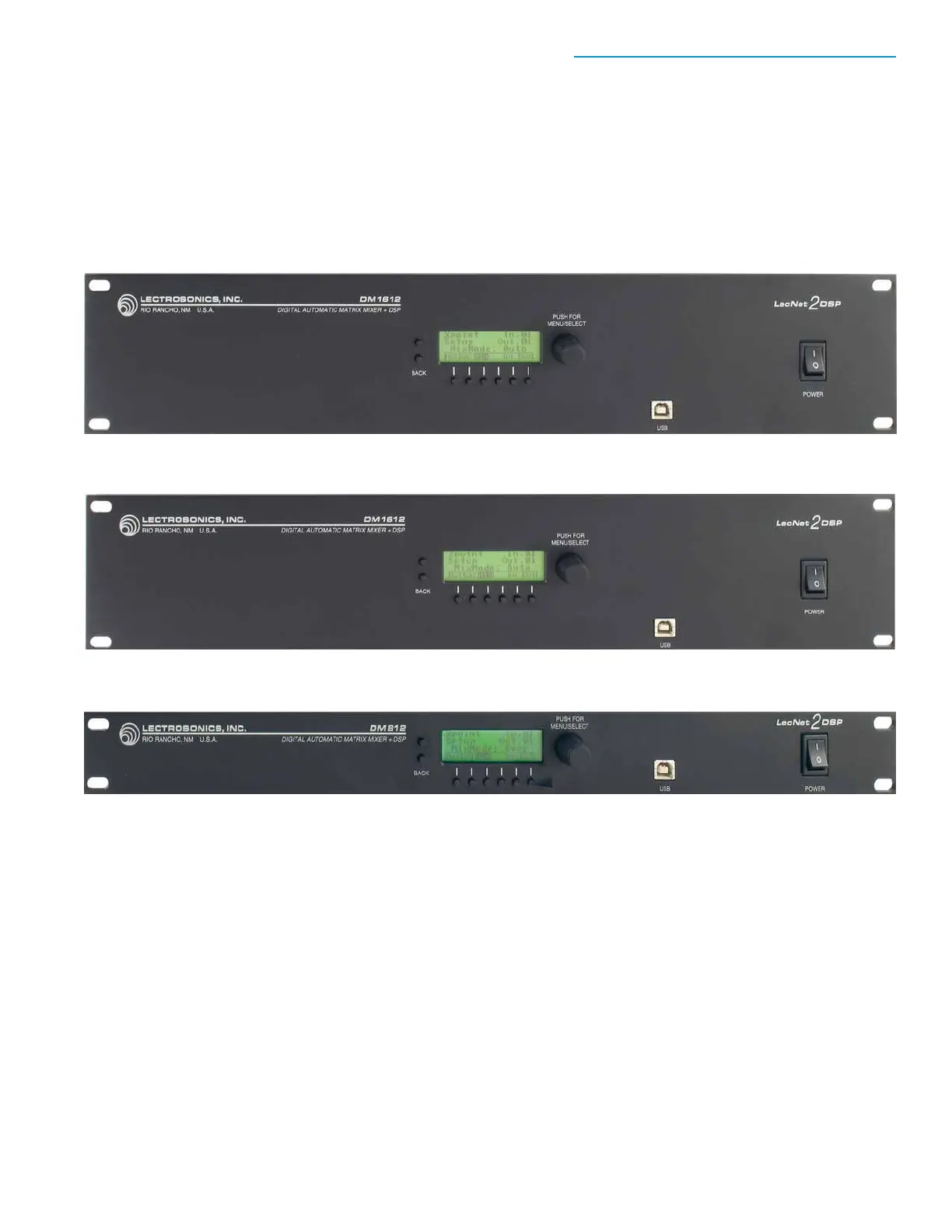

DM1624 - 16 inputs, 24 outputs
DM1612 - 16 inputs, 12 outputs
DM812 - 8 inputs, 12 outputs
