DM Series Digital Matrix Processors

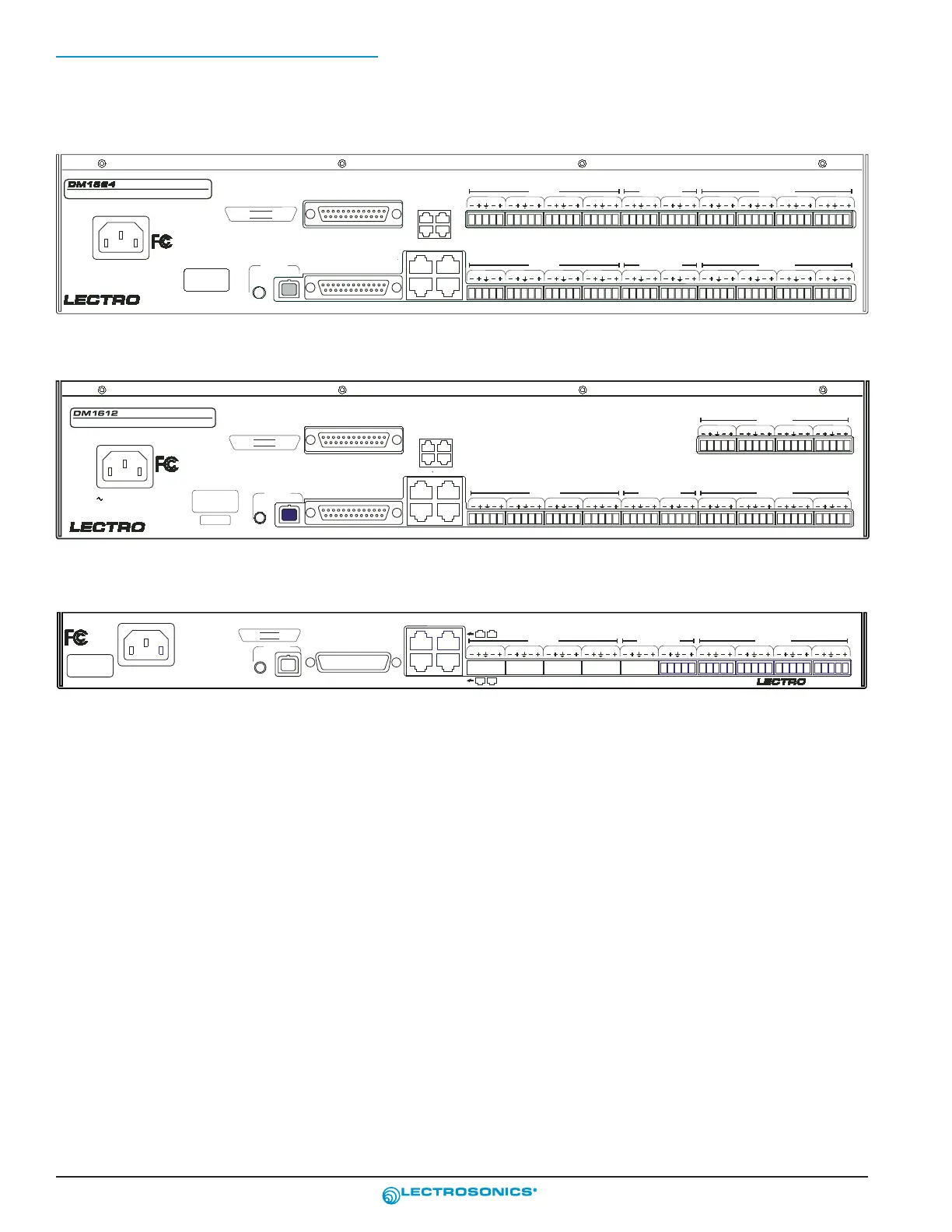

Hardware Rear Panels
DM1624 - 16 inputs, 24 outputs
DM1612 - 16 inputs, 12 outputs
DM812 - 8 inputs, 12 outputs
LecNet
DSP
MIC/LINE IN
7856341211 1291078563412
15 1613 1411 12910
MIC/LINE IN
LINE OUT
EXPANSION
TX
RX
AB
1 - GND
2 - IN 1
3 - IN 3
4 - IN 5
5 - IN 7
25
13
14
1
6 - IN 9
7 - IN 11
8 - GND
9 - OUT 1
10 - OUT 3
11 - OUT 5
12 - OUT 7
13 - GND
14 - +5V
15 - IN 2
16 - IN 4
17 - IN 6
18 - IN 8
19 - IN 10
20 - +5V
21 - OUT 2
22 - OUT 4
23 - OUT 6
24 - OUT 8
25 - +5V
PROGRAMMABLE
INPUTS / OUTPUTS
RS-232
USB
POWER
MADE IN U .S.A.
DIGITAL AUTOMATIC MATRIX MIXER + DSP
2
LecNet 2
MIC/LINE OUT
1 - GND
2 - IN 12
3 - IN 14
4 - IN 16
5 - IN 18
6 - IN 20
7 - IN 22
8 - GND
9 - OUT 9
10 - OUT 11
11 - OUT 13
12 - OUT 15
13 - GND
14 - +5V
15 - IN 13
16 - IN 15
17 - IN 17
18 - IN 19
19 - IN 21
20 - +5V
21 - OUT 10
22 - OUT 12
23 - OUT 14
24 - OUT 16
25 - +5V
TX
RX
U.S. Patent Number: 5,414,776
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operations.
90–240V 50/60Hz 30W
No User Serviceable Parts Inside
MIC/LINE IN
7 8563 41211 129107 8563 412
LINE OUT
EXPANSION
RX
A
B
1 - GND
2 - IN 1
3 - IN 3
4 - IN 5
5 - IN 7
25
13
14
1
6 - IN 9
7 - IN 11
8 - GND
9 - OUT 1
10 - OUT 3
11 - OUT 5
12 - OUT 7
13 - GND
14 - +5V
15 - IN 2
16 - IN 4
17 - IN 6
18 - IN 8
19 - IN 10
20 - +5V
21 - OUT 2
22 - OUT 4
23 - OUT 6
24 - OUT 8
25 - +5V
PROGRAMMABLE
INPUTS / OUTPUTS
RS-232
LecNet 2
MIC/LINE OUT
TX
U.S. Patent Number: 5,414,776
USB
RX TX
MADE IN U .S.A.
This device complies with
Part 15 of the FCC rules.
Operation is subject to the
following two conditions: (1)
This device may not cause
harmful interference, and (2)
this device must accept any
interference received, including
interference that may cause
undesired operations.
POWER
90–240VAC / 30W
LecNet
DSP
MIC/LINE IN
7856341211 1291078563412
15 1613 1411 1291023 2421 2219 2017 1815 1613 14
MIC/LINE IN
LINE OUT
LINE OUT
EXPANSION
TX
RX
AB
1 - GND
2 - IN 1
3 - IN 3
4 - IN 5
5 - IN 7
25
13
14
1
6 - IN 9
7 - IN 11
8 - GND
9 - OUT 1
10 - OUT 3
11 - OUT 5
12 - OUT 7
13 - GND
14 - +5V
15 - IN 2
16 - IN 4
17 - IN 6
18 - IN 8
19 - IN 10
20 - +5V
21 - OUT 2
22 - OUT 4
23 - OUT 6
24 - OUT 8
25 - +5V
PROGRAMMABLE
INPUTS / OUTPUTS
RS-232
USB
POWER
MADE IN U .S.A.
DIGITAL AUTOMATIC MATRIX MIXER + DSP
2
90–240VAC / 30W
LecNet 2 MIC/LINE OUT
MIC/LINE OUT
1 - GND
2 - IN 12
3 - IN 14
4 - IN 16
5 - IN 18
6 - IN 20
7 - IN 22
8 - GND
9 - OUT 9
10 - OUT 11
11 - OUT 13
12 - OUT 15
13 - GND
14 - +5V
15 - IN 13
16 - IN 15
17 - IN 17
18 - IN 19
19 - IN 21
20 - +5V
21 - OUT 10
22 - OUT 12
23 - OUT 14
24 - OUT 16
25 - +5V
TX
RX
U.S. Patent Number: 5,414,776
No User Serviceable Parts Inside
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operations.
Serial Number
Here
