10

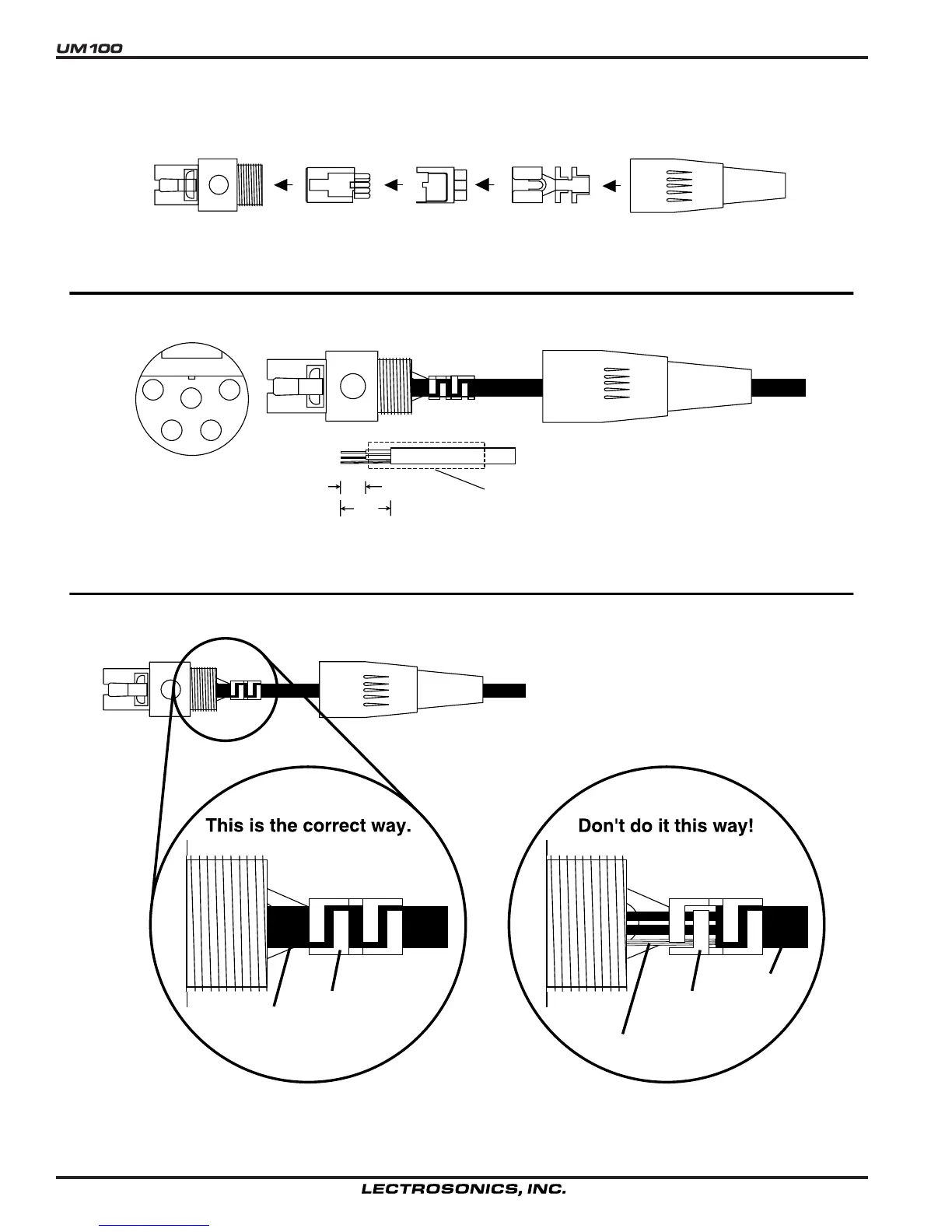

MICROPHONE CORD TERMINATION
1
23
4
5
VIEW FROM SOLDER
SIDE OF PINS
0.3"
0.15"
Heatshrink
Tubing
TA5F Connector Assembly
Mic Cord Stripping Instructions
Caution!
Do not allow the shield wire to touch any
metal part of the connector shell.
The shield wire is the antenna on VHF
models and poor operating range will result.
Shield Wire
Crimp
Tabs
Rubber
Insulation
Crimp
Tabs
Rubber
Insulation
Note: This termination is required on VHF transmitters and will still work fine on UHF transmitters.
To Next Page
