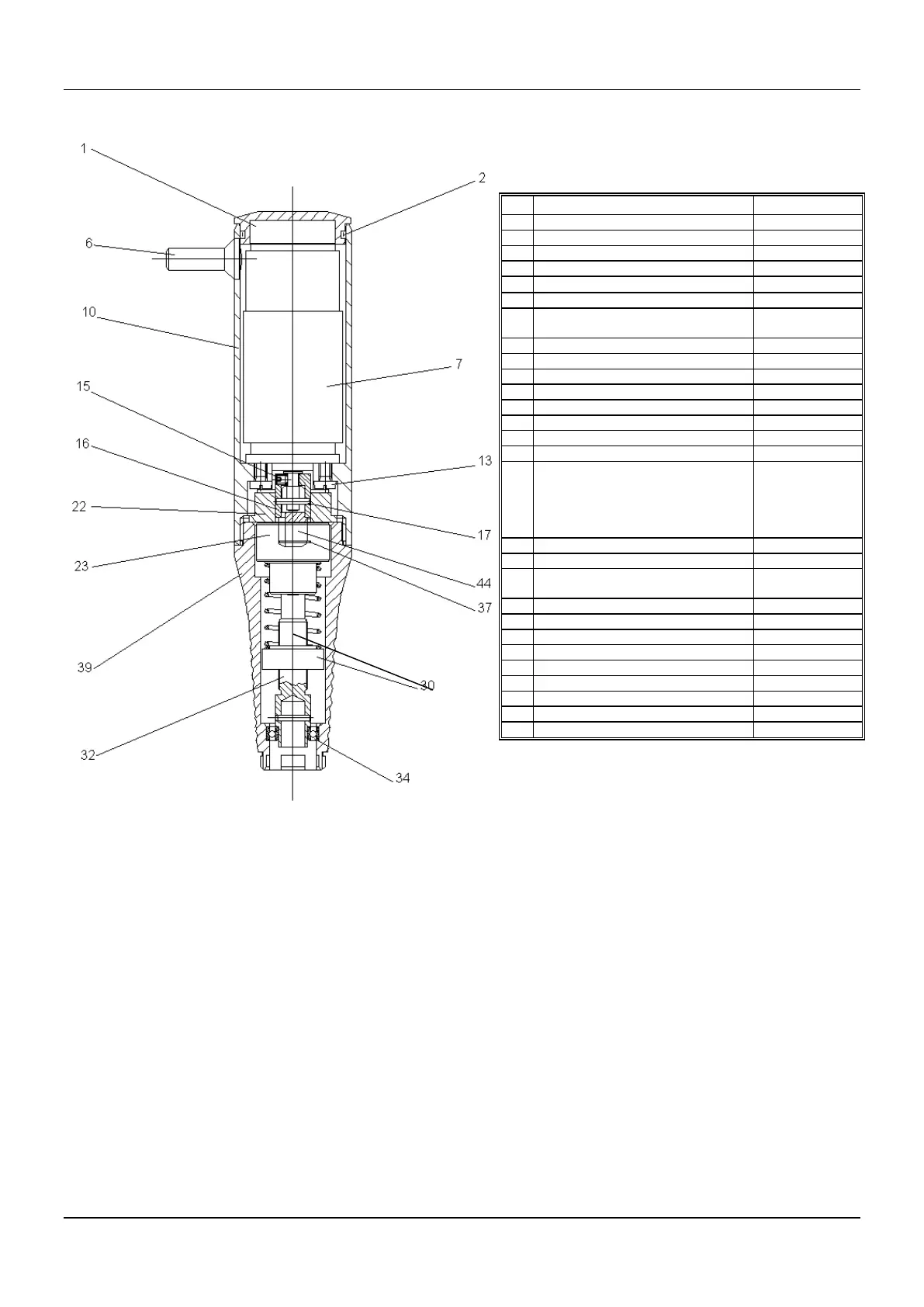

14.2 Spares and parts list for M120 AE
No
Spare part
Ref
1
Cover
0003.056.004
2
O – Ring 16 x 1
9003.006.059
3
Flexible wire - 0.25 mm2 (blue)
9001.006.166
4
Flexible wire - 0.25 mm2 (black)
9001.006.167
5
Vacuum tube  3/5
9003.002.003
6
Junction for plastic tube
0003.043.002
7
Motor 12 Volt
with an 11:8 gear-down mechanism
9001.002.007-a
10
Motor drill purple
0003.056.002
13
Cylindrical head screw M2 x 6
9002.009.019
15
Slotted headless screw - M 1.6 x 2
9002.011.014
16
Centering tube
0003.054.008
17
Hardened cylindrical pin 1 x 6
9002.004.016
22
Ball bearing
9002.000.022
23
Fixed friction torque control
0003.043.009-a
26
Mobile friction used for MECO-LEC
0003.043.015-a
29
Friction springs
 0.60 Type A/AE Standard
 0.70 Type A/AE on request
 0.80 Type A/AE on request
 0.90 Type A/AE on request
0003.043.014-c
0003.043.014-a
0003.044.002-a
0003.044.002-b
30
Adjusting ring
0003.043.013
31
Slotted screw - M 2.5 x 2, brass
0003.043.021
32
Large staff assembled built
with a friction
0003.043.012
33
Hardened cylindrical pin 1 x 6
9002.004.016
34
Ball bearing Ø 5/9 - SS 950 ZZ-3
9002.000.007
35
Key-bolt
0003.043.010
36
Hold washer - BSR 5
9002.003.079
37
Hold washer - WSR 4
9002.003.073
38
Key-bolt (nylon)
0003.043.020
39
Head drill manual screwdriver, purple
0003.056.001
44
Axis
0003.056.003
45
Hardened cylindrical pin 1,0 x 4
9002.004.015
36
