Lecureux TE-QC - Spares and Parts List for M427 E;AE

TE-QC & TE-Light Operating manual
44 LECUREUX SA

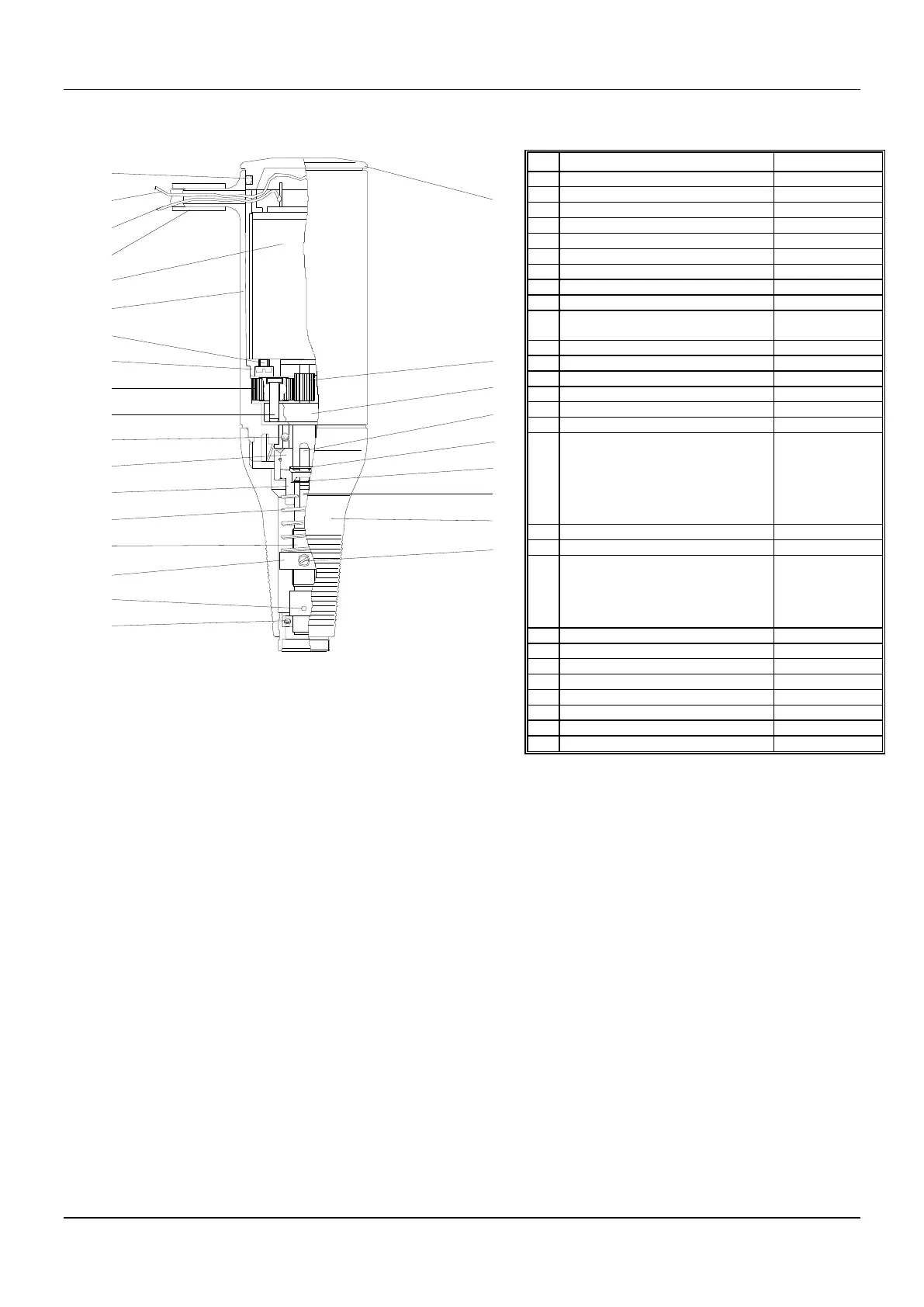

14.5 Spares and parts list for M427 E/AE
34
33
30
32
29
26
23
22
21
18
42
13
10
7
5
4
3
2
31
39
38
37
36
35
20
19
1
No
Spare part
Ref
1
Cover
0003.052.003
2
O – Ring 16 x 1
9003.006.041
3
Flexible wire - 0.25 mm2 (blue)
9001.006.166
4
Flexible wire - 0.25 mm2 (black)
9001.006.167
7
Motor 6 Volt, with wheel
9001.002.017-a
10
Motor drill
0003.052.001
13
Cyl.-head slotted screw M2 x 3 (3x)
9002.009.031
18
Satellite wheel (3x)
0003.052.004
19
Motor pinion
0003.043.008
20
Satellite support mounted
with pins
0003.052.007
21
Needle Ø 2 x 9,8 (class 1-0-2)
9002.004.111
22
Ball bearing 5 / 11 x 5 with flange
9002.000.008
23
Fixed friction torque control
0003.043.009-a
24
Fixed coupling
0003.044.004
26
Mobile friction used for MECO-LEC
0003.043.015-a
27
Mobile coupling
0003.044.005
29
Friction springs
 0.50 Type E
 0.60 Type A/AE Standard
 0.70 Type A/AE on request
 0.80 Type A/AE on request
 0.90 Type A/AE on request
0003.043.014-b
0003.043.014-c
0003.043.014-a
0003.044.002-a
0003.044.002-b
30
Adjusting ring
0003.043.013
31
Slotted screw M 2,5 x 2 brass
0003.043.021
32
Large staff assembled built
Without a friction clutch
With a friction clutch
Without coupling
With fixed coupling
0003.043.012-a
0003.043.012-b
0003.043.012-c
0003.043.012-d
33
Hardened cylindrical pin 1 x 6
9002.004.016
34
Ball bearing Ø 5/9 SS 950 ZZ-3
9002.000.007
35
Key-bolt
0003.043.010
36
Hold washer - BSR 5
9002.003.079
37
Hold washer - WSR 4
9002.003.073
38
Key-bolt (nylon)
0003.043.020
39
Main drill
0003.052.002
42
Fastening flange
0003.052.006
