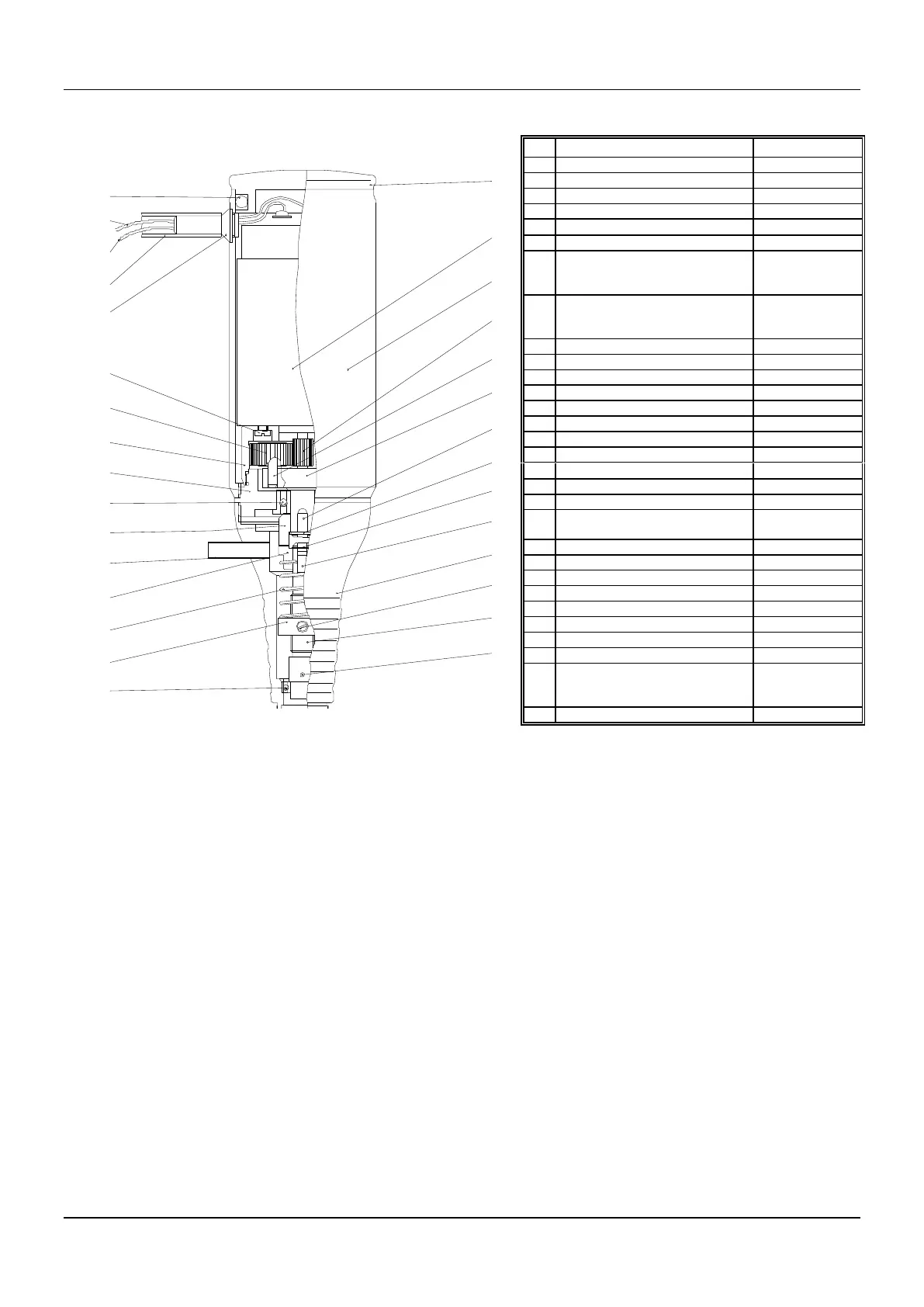

14.6 Spares and parts list for M531E / HP
34
30
29
27
43
24
22
41
40
18
13
6
5
4
3
2
33
32
31
39
38
37
36
35
20
21
19
10
7
1
No
Spare part
Ref
1
Cover
0003.049.002
2
O – Ring 22,2 x 3
9003.006.013
3
Flexible wire - 0.25 mm2 (blue)
9001.006.166
4
Flexible wire - 0.25 mm2 (black)
9001.006.167
5
Vacuum tube-  3/5
9003.002.003
6
Junction for plastic tube
0003.043.002
7
Motor 12 Volts
M531 E
M531 HP
9001.002.022-a
9001.002.067-a
10
Motor drill
M531 E
M531 HP
0003.049.001-a
0003.049.001-b
13
Cyl.-head slotted screw M 2 x 3
9002.009.031
18
Satellite wheel
0003.052.004
19
Motor pinion
0003.043.008
20
Satellite support
0003.043.006-a
21
Needle Ø 2 x 9,8 (class 1-0-2)
9002.004.111
22
Ball bearing 5 / 11 x 5 with flange
9002.000.008
24
Fixed coupling
0003.044.004
27
Mobile coupling
0003.044.005
29
Friction springs  0.5 Type E
0003.043.014-b
30
Adjusting ring
0003.043.013
31
Brass screw - M 2.5 x 2
0003.043.021
32
Friction clutch mounted
on the large axle
0003.043.012-d
33
Hardened cylindrical pin 1 x 6
9002.004.016
34
Ball bearing 5 / 9 x 3 open
9002.000.007
35
Key-bolt
0003.043.010
36
Washer disc - BSR 5
9002.003.079
37
Washer disc - WSR 4
9002.003.073
38
Key-bolt (nylon)
0003.043.020
39
Main drill with vacuum
0003.049.004-b
40
Toothed crown
0003.043.004
41
Fastening flange
M531E
M531HP
0003.043.005
0003.043.005-a
0003.049.005A
43
Junction Inox (stainless steel)
0005.070.015
