10’’ PDUs
19’’ PDUs
Zero-U PDUs
Data sheet: S000093176EN-04 Updated: 29/03/2018 Created: 25/10/2016
Cat. Nos: 6 468 00/01/05/06/07/09/10/11/12/13/14/15/18/1
9/20/21/22/23/24/30/31/32/33/35/36/40/41/42/43/44/
45/50/51/52/53/54/56/57/59/60/61/65/70/75/90/92/94/
95/97/98/99
2) Zero-U

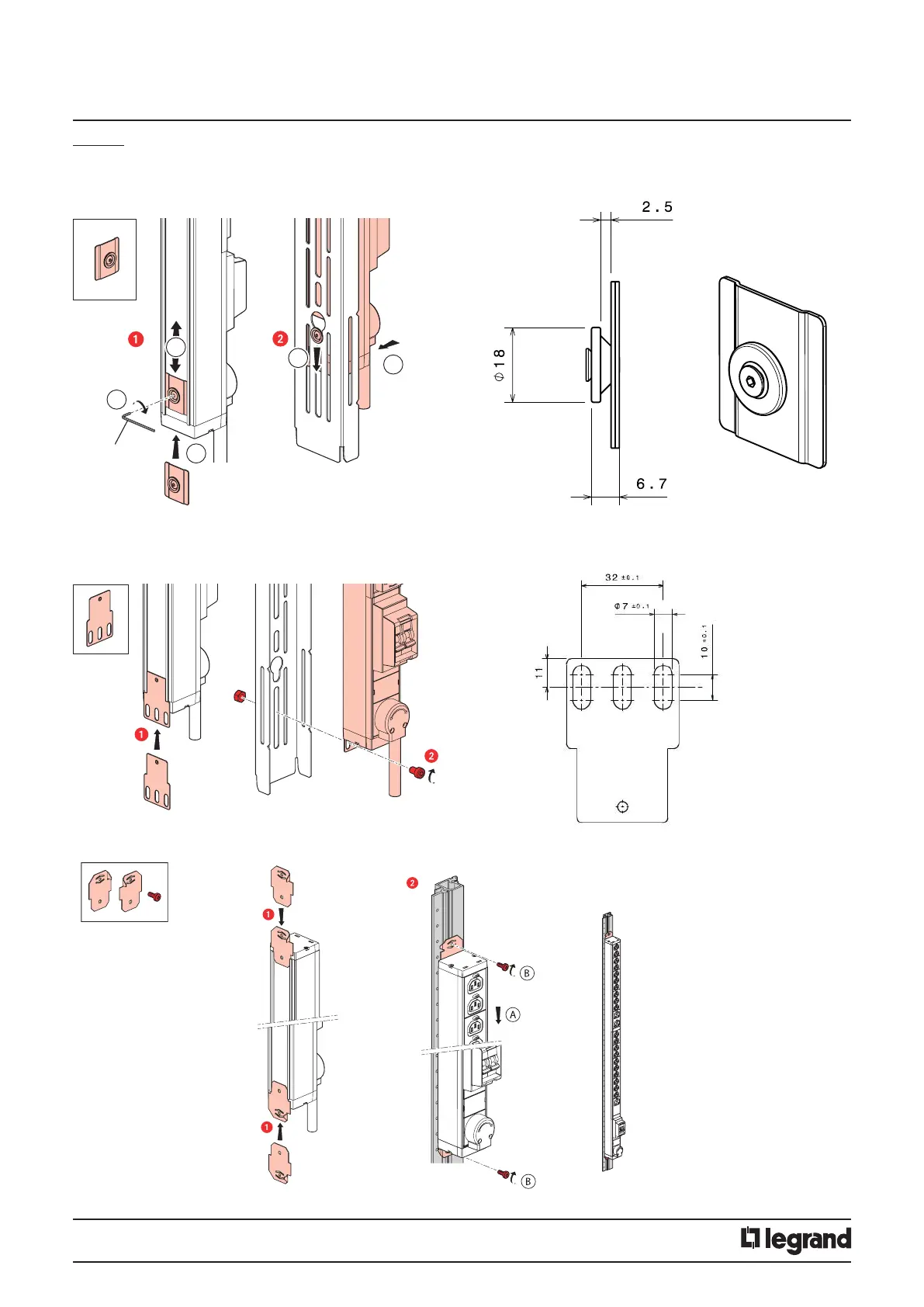

Zero-U PDUs are designed for vertical installation and supplied with 2 sets of fixing accessories:
- 2 button: for screwless fixing. The height of the fixing centre can be set at any point along the full height of the PDU by sliding the button slots into
the groove on the rear of the PDU. Tightened using a 2.5 mm Allen key.
A
C
x2
B
A
B
2.5
Button dimensions
- 2 standard fixing brackets: for screw-fixing (screws not included)
x2
Standard xing bracket dimensions
- 2 Minkels brackets + 2 screws
x2
