100
DMX
3
To be wired
in Draw-out
position.
NEUTRE
EXTERNE
EMS
SEL

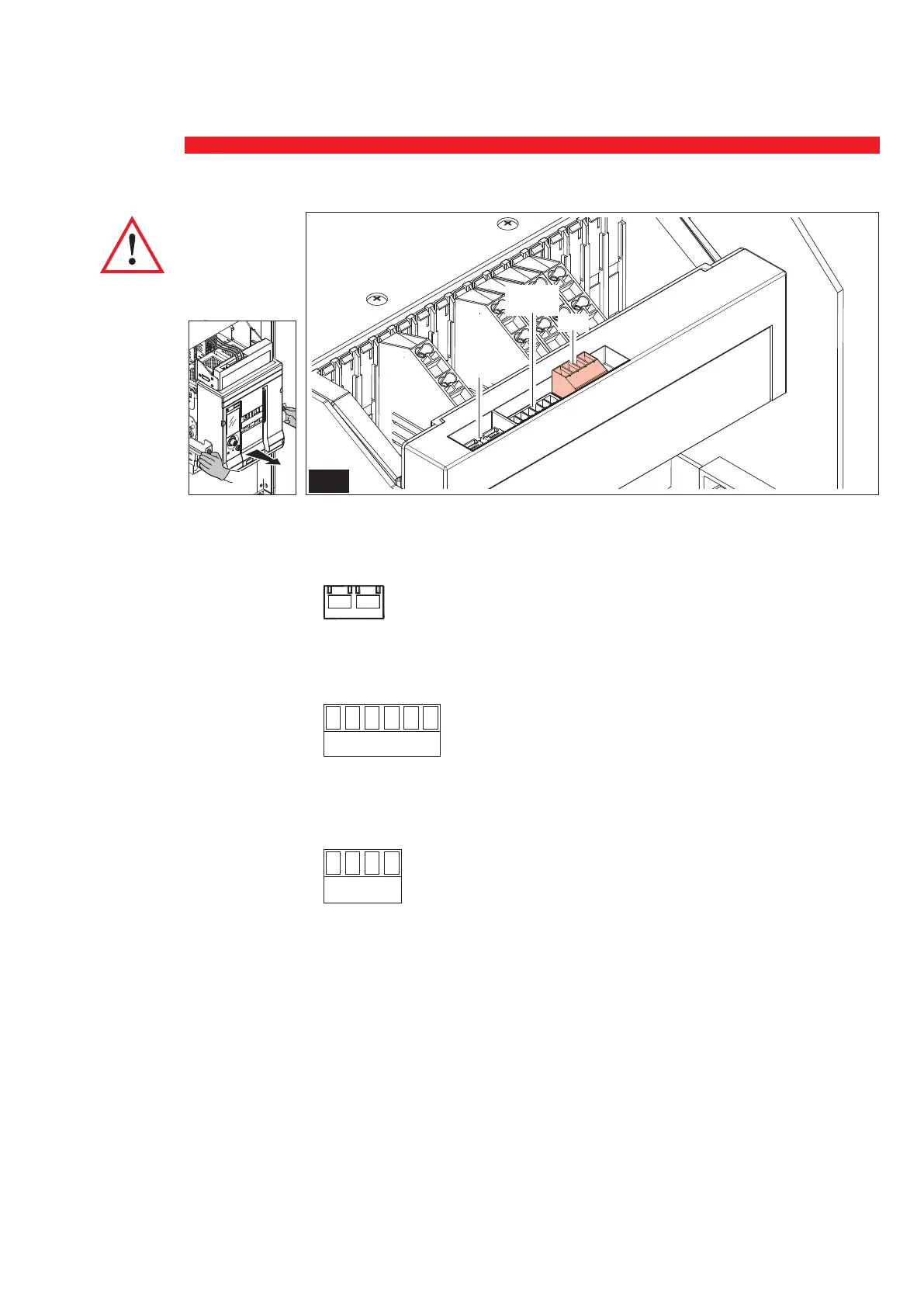

NEUTRE EXTERNE:
H 11
H 12
H 15
H16
0 281 98 - 4000A (BORNIER 6 VOIES)
0 281 97 - 6300A (BORNIER 6 VOIES)
SEL:
H11 - H12 SEL_IN
H15 - H16 SEL_OUT
EMS
