DX
3
Manual Supply Invertor
Cat. Nos: 4 063 14/15/16

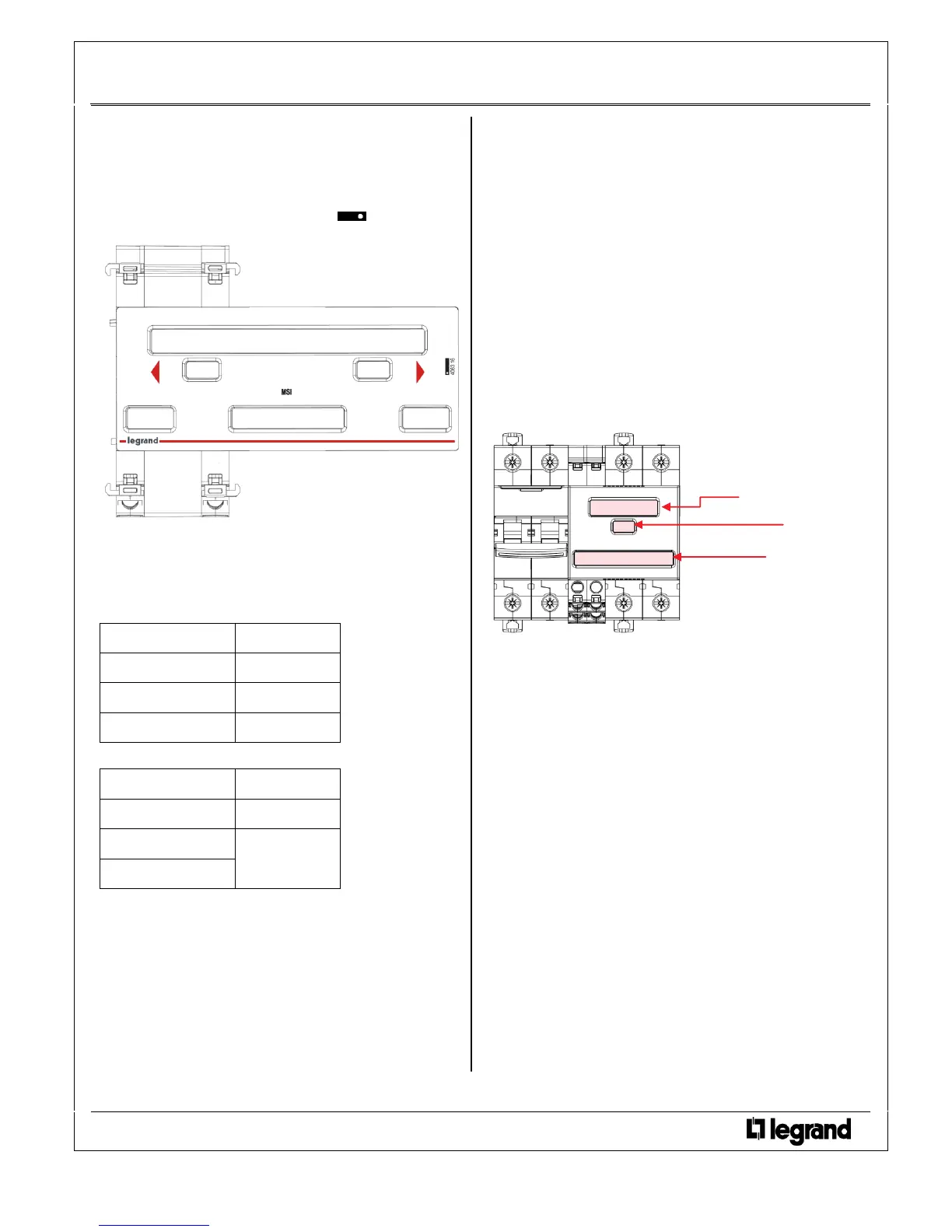

5. GENERAL CHARACTERISTICS
Front face marking:
. By permanent ink pad printing:
- Device name: MSI
- Directional arrows
- Legrand reference code and Logo
- Mark: Legrand.
Plastic materials:
. 10% Glass fiber reinforced polycarbonate
. Characteristics of this material: self extinguishing, heat and fire
resistant according to EN 60898-1, glow-wire test at 960°C.
Average weight per device:
Cat.Nos
Weight (kg)
4 063 14
0,057
4 063 15
0,089
4 063 16
0,094
Volume when packed:
Cat.Nos
Volume (m
3
)
4 063 14
0,49
4 063 15
1.25
4 063 16
Ambient temperature:
. operating= - 25 °C Max. = + 60 °C.
. storage= - 25 °C Max. = + 60 °C.
5. GENERAL CHARACTERISTICS (continued)
Class protection:
. Protection index of the box against solid and liquid bodies:
IP40 (in accordance with standards IEC 529, EN 60529 and NF C 20-
010).
Sinusoidal vibration resistance in accordance with
IEC 60068-2-6:
. Axes : x, y, z.
. Frequency: 5÷100 Hz ; duration 90 minutes
. Displacement (5÷13,2 Hz) : 1mm
. Acceleration (13,2÷100 Hz) : 0,7g (g=9,81 m/s
2
)
Power dissipated (W) :
. 0 W.
Identification:
. MSI is equipped with several windows, so all information of the
associated device remain visible
6. COMPLIANCE AND APPROVALS
In accordance with:
. CEE guidelines : 73/23/CEE + 93/68/CEE
. Legrand devices can be used under the conditions of use as defined
by IEC /EN 60947-1
. The performance of circuit breakers can be influenced by particular
climates: hot dry, cold dry, hot humid, salt fog atmosphere
Plastic materials :
. Halogens-free plastic materials.
. Marking of parts according to ISO 11469 and ISO 1043.
Packaging:
. Design and manufacture of packaging in accordance with decree 98-
638 of 07.20.98 and Directive 94/62/EC
Technical data sheet: F01931EN/00
Updated: -
Created: 15/04/2014
label in the label holder
handle marking
front face marking
