32
4. Installation

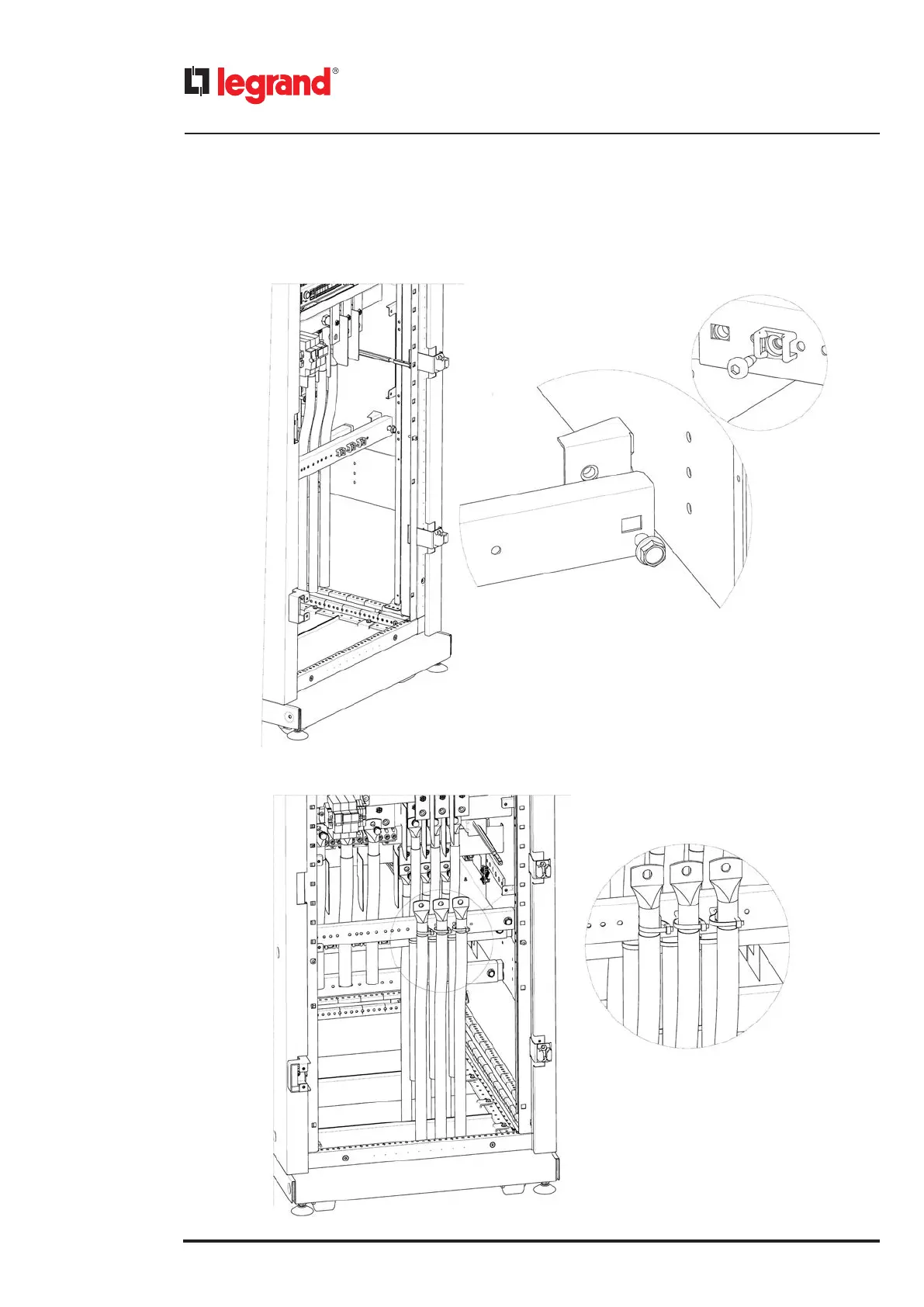

The fastening of the input cables on Keor MOD 250 must be done according to the following steps:
1) Fix the third metal bar above the second bar using two hex M8x14 screws. Then fix the plastic support for the cable
ties using M6 torx pan head screws.
2) Fix the cable with cable ties.
