4. Installation

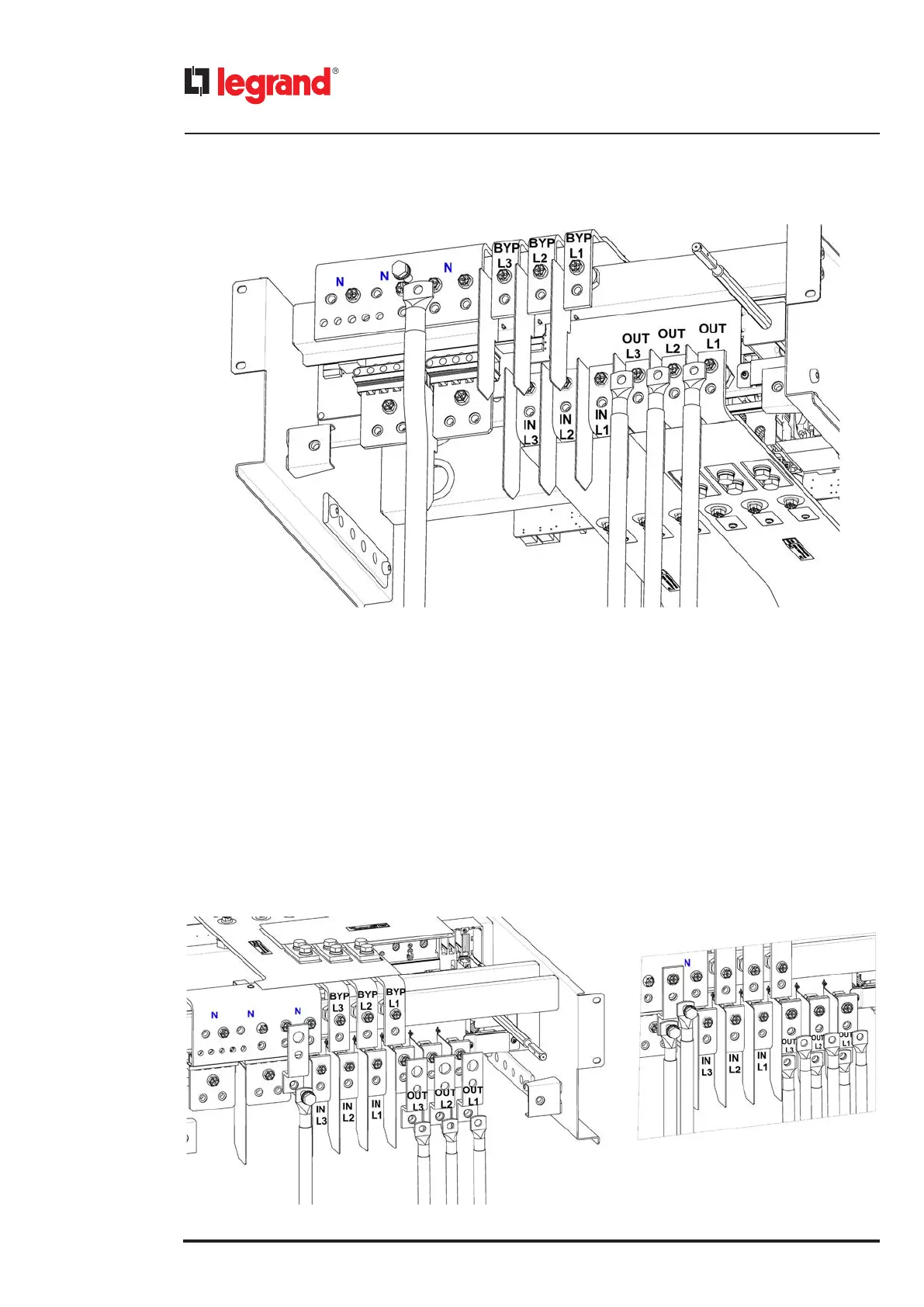

KEOR MOD 125 – output cables installation
It is also possible to install an accessory for double cable. In this way it is possible for each terminal to use two cables with
a smaller cross section than the one of a single cable.
For this installation, follow these steps:
- crimp the output and neutral cables with M8 eyelets;
- connect the first three output cables L1, L2, L3 to the hole at the bottom of the accessory for double cable using three hex M8x20
screws along with M8 flat washers and M8 grower washers. The grower washer must always be put on top of the flat washer;
- connect the other three output cables L1, L2, L3 to the hole at the top of the accessory for double cable using three hex
M8x25 screws along with M8 flat washers and M8 grower washers. Through these screws, fix the accessories to the termi-
nals OUT L1, OUT L2, OUT L3 of the input busbar. The grower washer must always be put on top of the flat washer;
- do not change the phase sequence (L1, L2, L3);
- connect the first output neutral cable to the hole at the bottom of the accessory for double cable using a hex M8x20 screw
along with a M8 flat washer and a M8 grower washer. The grower washer must always be put on top of the flat washer;
- connect the second output neutral cable to the hole at the top of the accessory for double cable using a hex M8x25 screw
along with M8 flat washer and M8 grower washer. Through this screw, fix the accessory to the terminal of the neutral bu-
sbar. The grower washer must always be put on top of the flat washer.
