In case there is the need to use a double cable for each terminal in order to use a smaller cross section for each cable,
follow the previous procedure but install two cables for each terminal.

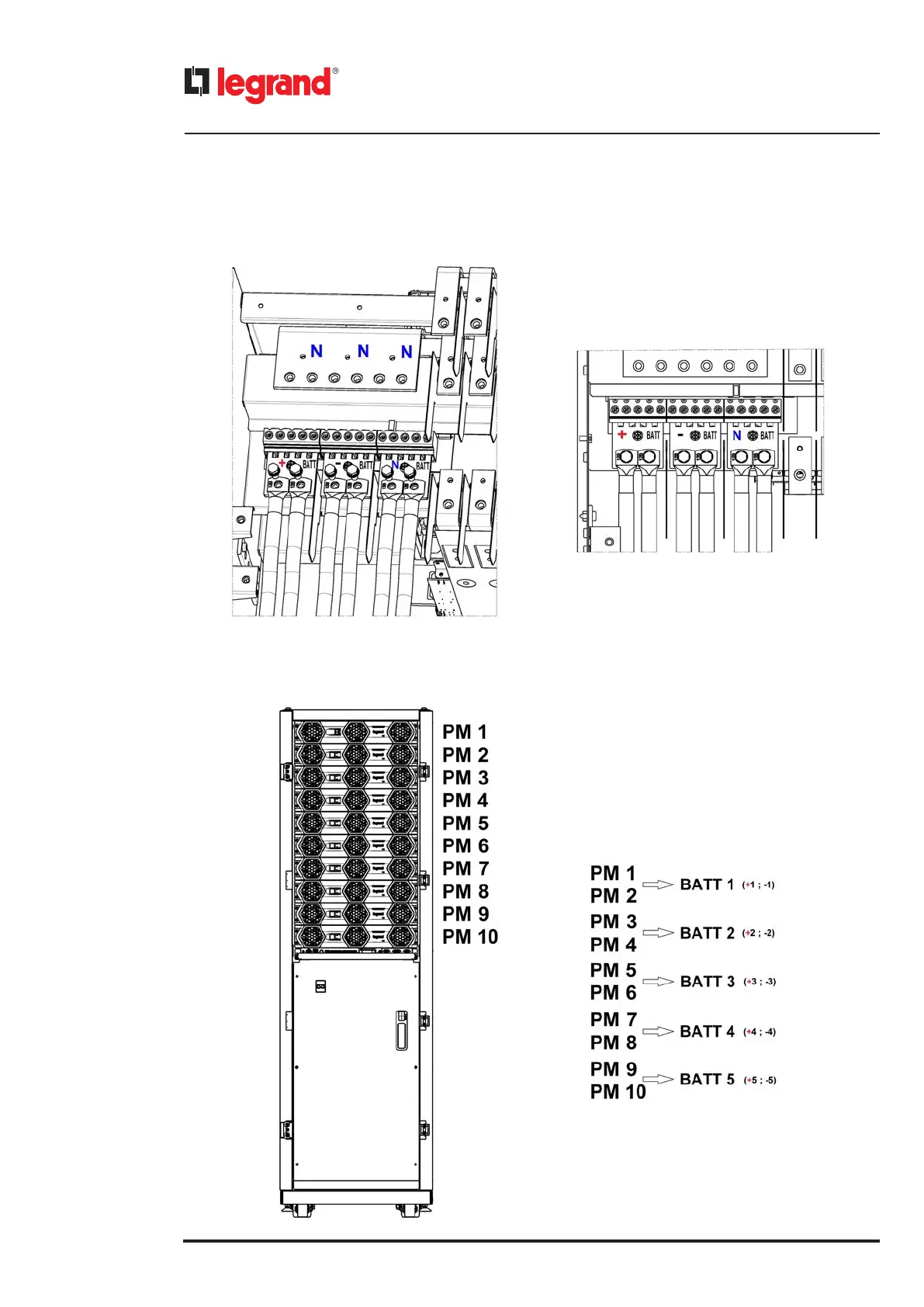

KEOR MOD 250 – battery cables installation with strings of batteries in common (double cable)
It is also possible to install independent string of batteries. In this case, each power module is associated to a unique string.
The following picture shows the association between the power modules and the relative battery strings:
