In case of installation of independent strings of batterie, follow these steps:
- remove the metal jumpers inserted in the battery terminals.
- insert the positive battery cables of the battery cabinets in the positive battery terminal, the negative battery cables of
the battery cabinets in the negative battery terminal and the neutral battery cables of the battery cabinets in the neutral
battery terminal.
The maximum cross section accepted by the terminals is 35 mm
2
.

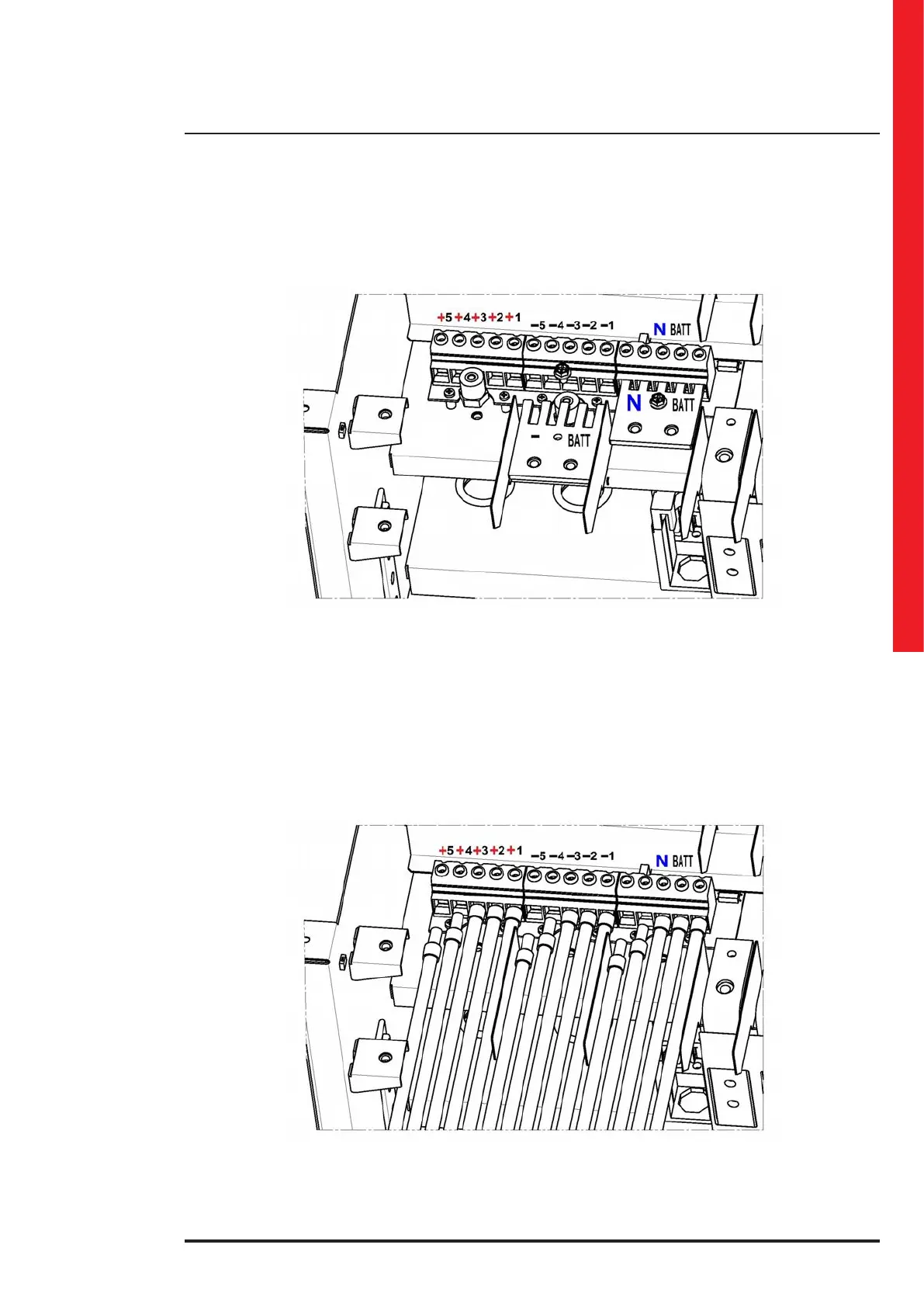

Connect the battery cables on the terminals according to the string:
BATT1: +1 ; -1
BATT2: +2 ; -2
BATT3: +3 ; -3
BATT4: +4 ; -4
BATT5: +5 ; -5
