4. Installation

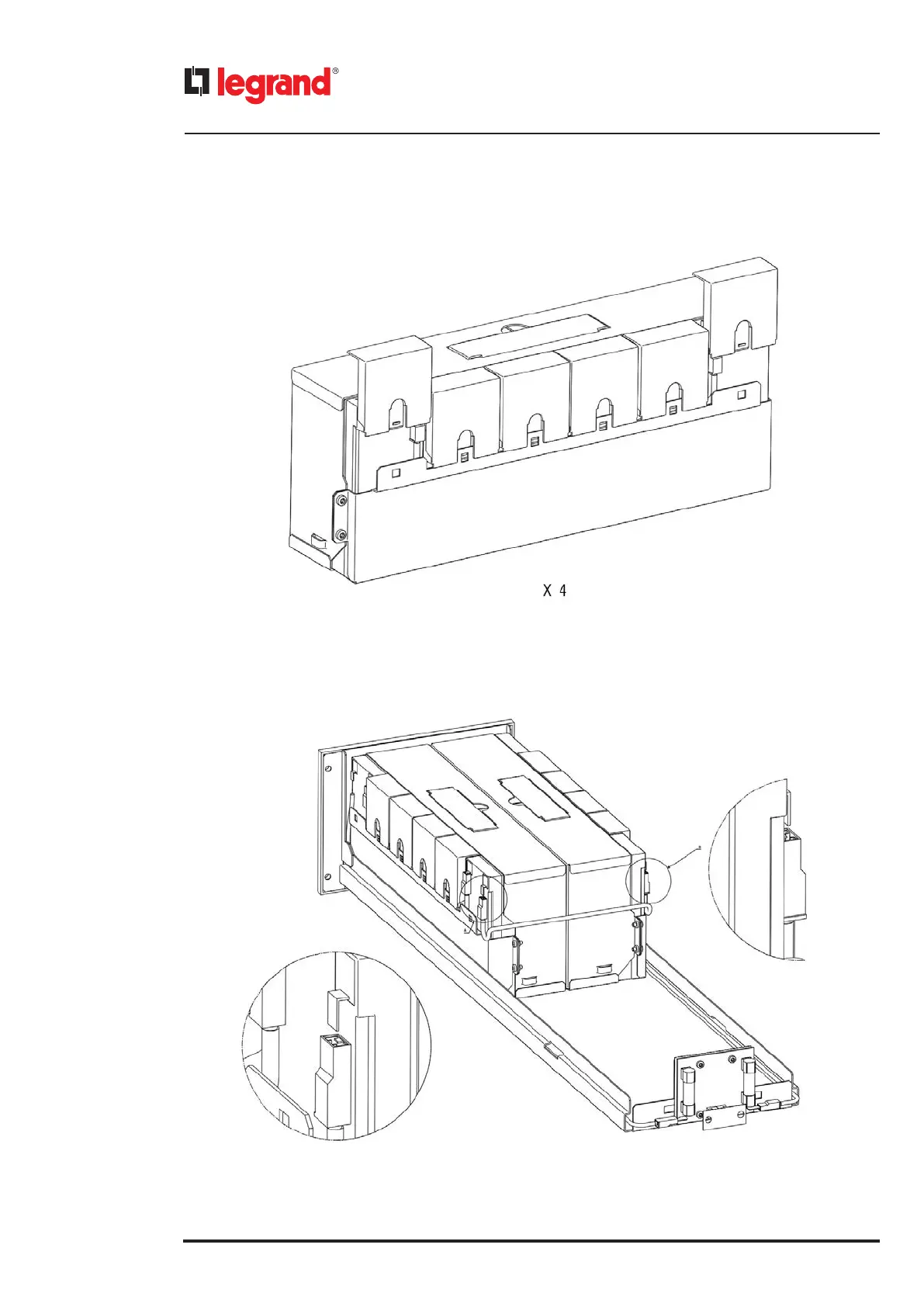

Remove the terminal covers of the batteries at the extremes.
Add two battery blocks on a drawer and connect in series the two blocks using the cable provided and respecting the
polarity (connect a positive terminal to a negative terminal).
