Keor MOD
Installation and maintenance manual
61

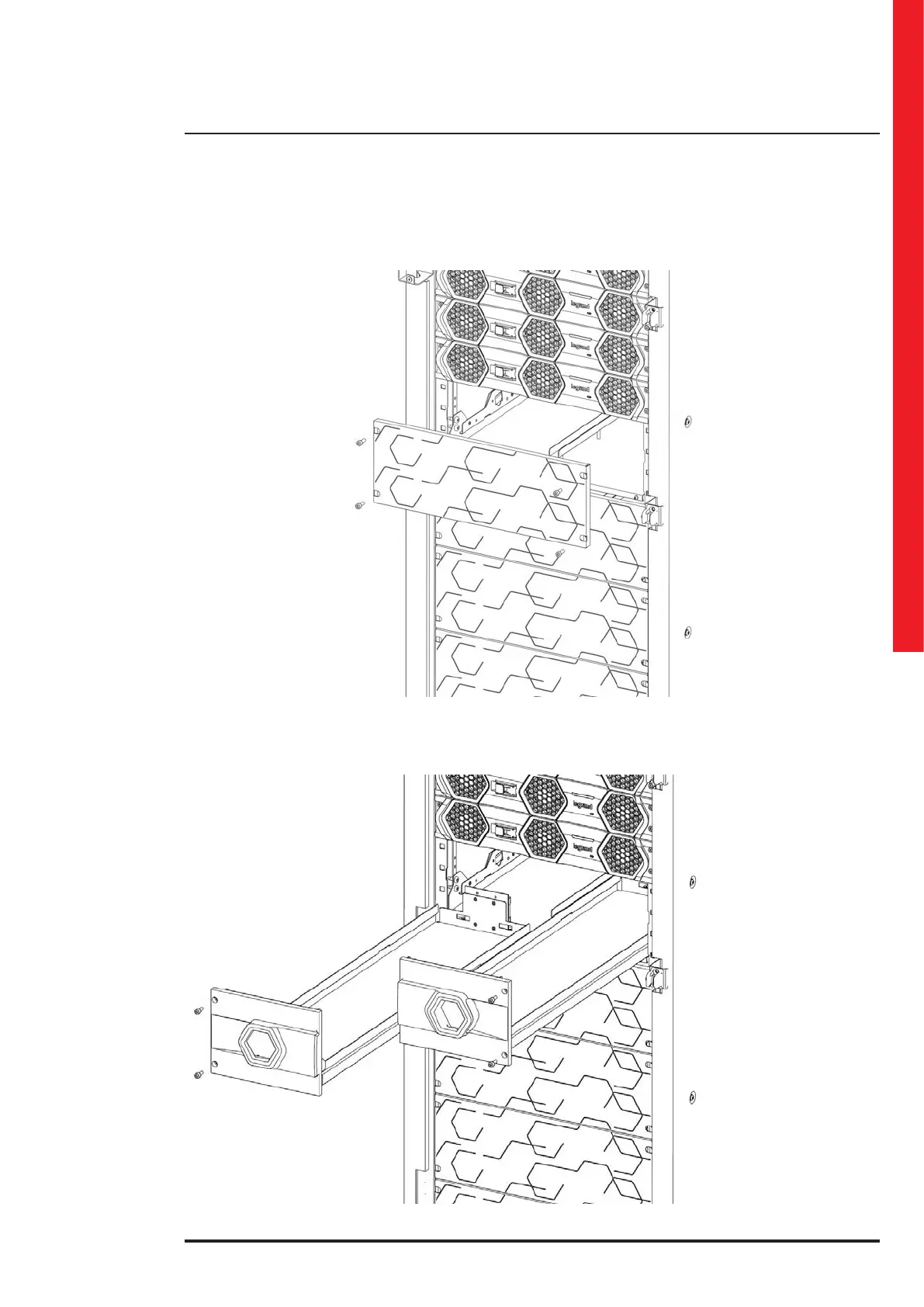

Starting from the top of the cabinet, unscrew the four screws that fix the slot cover where the battery drawers must be
installed and save them.
Insert the empty battery drawers in the free slots and push them till the ‘click’ of the safety block is heard.
The battery blocks must be added to the drawers only after the activation of the safety block.
