The described presets depend on the used hardware and may vary.
The print-out speed is measured with an external encoder with a resolution of 12.5
pulses/mm. The encoder shall only work clockwise and shall be locked against
backward movements. The speed dependent output shall not be used. The
<PrintGo> signal is provided from an external sensor and provides a positive edge.
The <PrintGo Gate> function shall not be used and the print-out shall not be
stopped immediately when a <PrintStop> signal occurs but the current print job
shall be finished. The <Date Change Parameter> option shall not be used.
It is assumed that the 3 different print jobs are already created.
Approach:

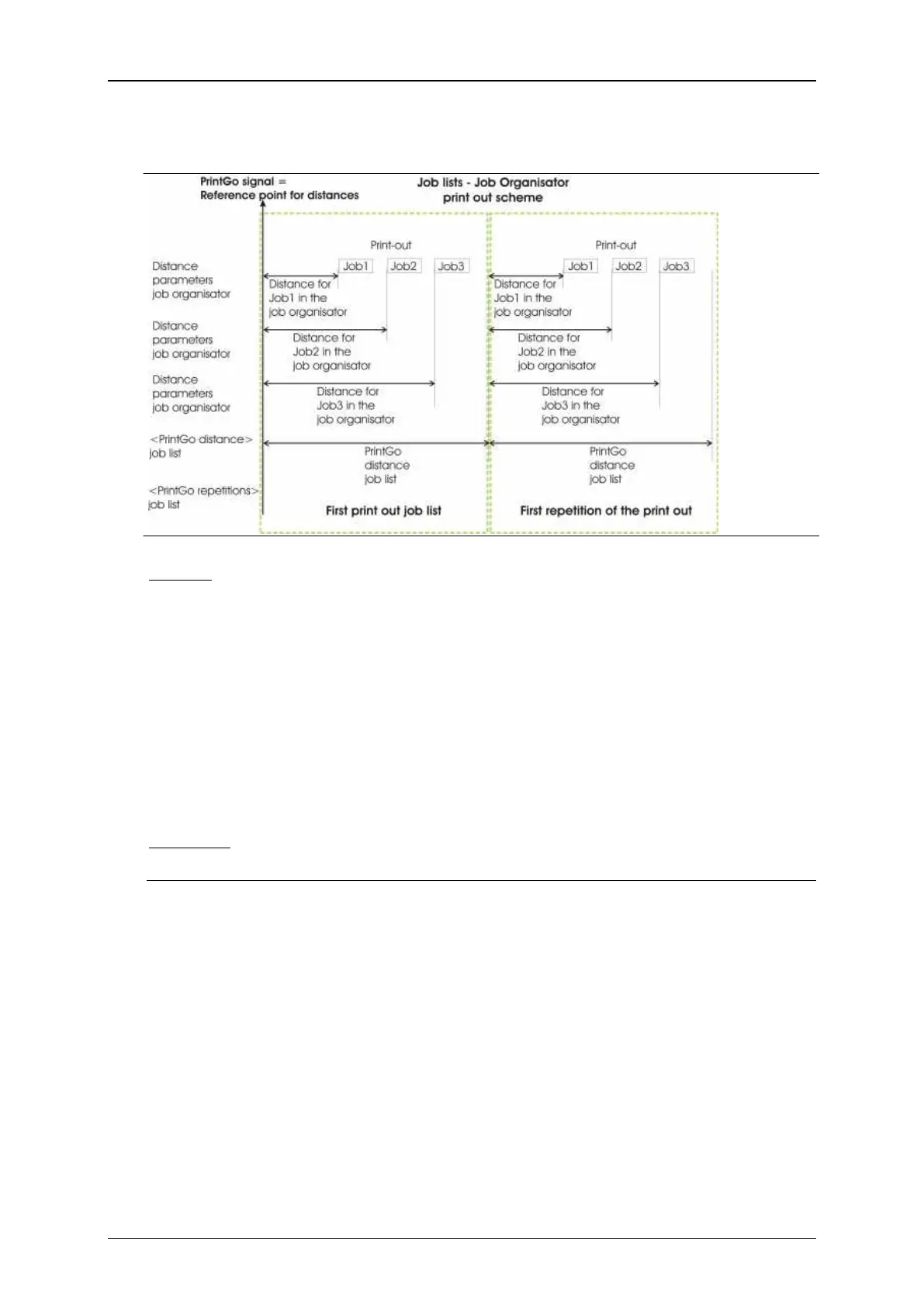

The numbers in brackets refer to the numbers in Figure 43
1. Open the <Job organisator> tab from the menu bar of the main window of
the printer: <Job>-<Create new Joblist>-<Job Organisator> (1).
2. Push the <Import> button for adding the first print job to the list (2).
3. Select the first print job (2). The first column of the job list shows the print
job number, the second the distance between the reference point and the
print out and the third the print job names (3).
4. Assign the distance for the print job (3).
5. Fill the job list display with the two remaining print jobs (4) and assign the
required distances to each job (4).
6. Enter the following settings in the <Joblist settings> (5-8):
